Product Details

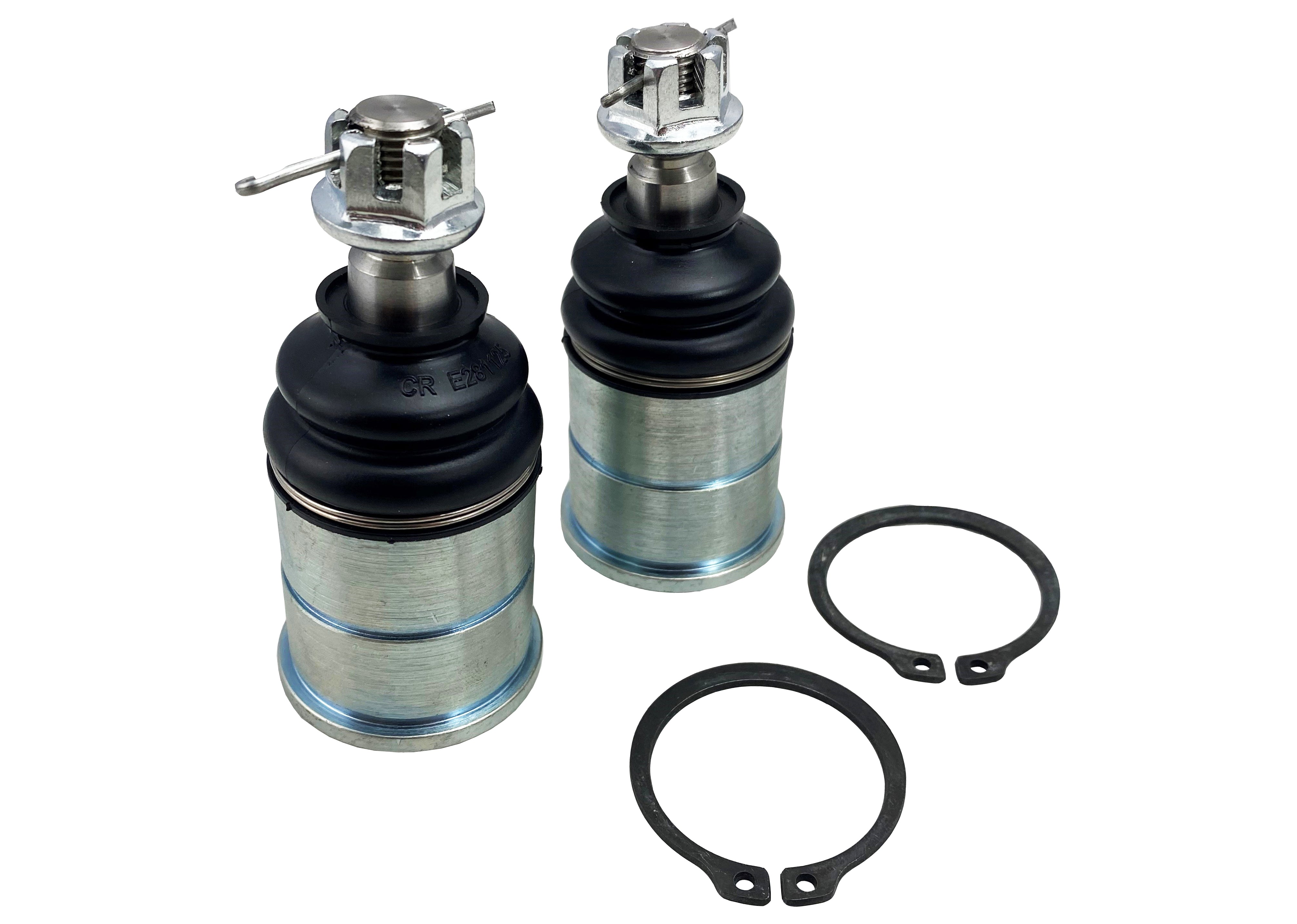

A must for lowered vehicles, Whiteline Roll Centre Correction Kit to your 1994-2001 Acura Integra (DC2/DB8) is designed to correct roll-center geometry using specially engineered ball-joints. Raising the front roll-center results in a substantial increase to front roll resistance and a significant reduction in suspension compression on the outside front tire during cornering. The result is more even weight distribution and improved tire contact ultimately improving front end grip, cornering speeds and tire life when driving the vehicle to it's potential.
Standard Features
- 2 Arms, Install Guide
- Designed with the installer in mind by reducing the need of specialized skills, tools and equipment.
- Internal grease reservoirs on bushing provide continual self lubrication for optimum friction management.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering
- Install guide included providing detailed instructions on how to install your new purchase .
Specifications
| Part Number | KCA524 |
| Part Name | Roll Center Corrections |
| Vehicle | 1994-2001 Acura Integra |
| Chassis Code | DC2/DB8 |
| Adjustable | No |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Ball Joints, 2 Circlips |
| Mount Type | Press In |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
Vehicle Fitment
- 1994 Acura Integra (DC2/DB8)
- 1995 Acura Integra (DC2/DB8)
- 1996 Acura Integra (DC2/DB8)
- 1997 Acura Integra (DC2/DB8)
- 1998 Acura Integra (DC2/DB8)
- 1999 Acura Integra (DC2/DB8)
- 2000 Acura Integra (DC2/DB8)
- 2001 Acura Integra (DC2/DB8)
