Product Details

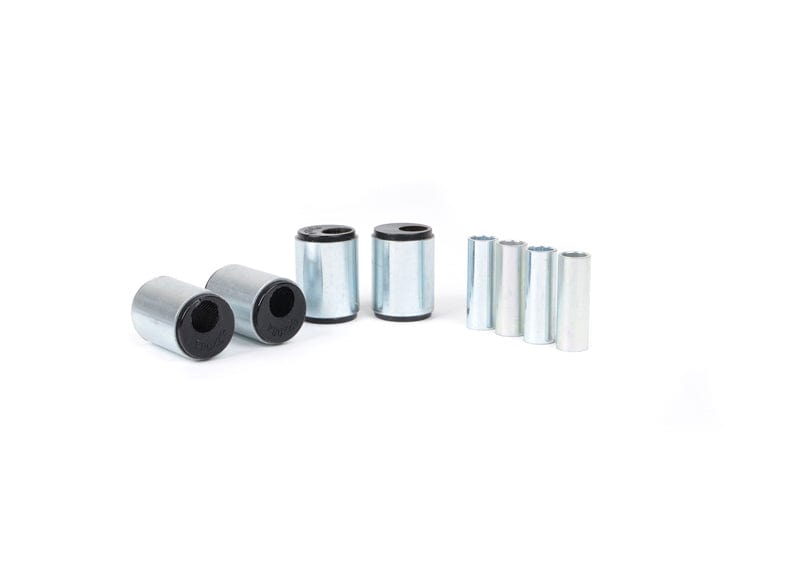

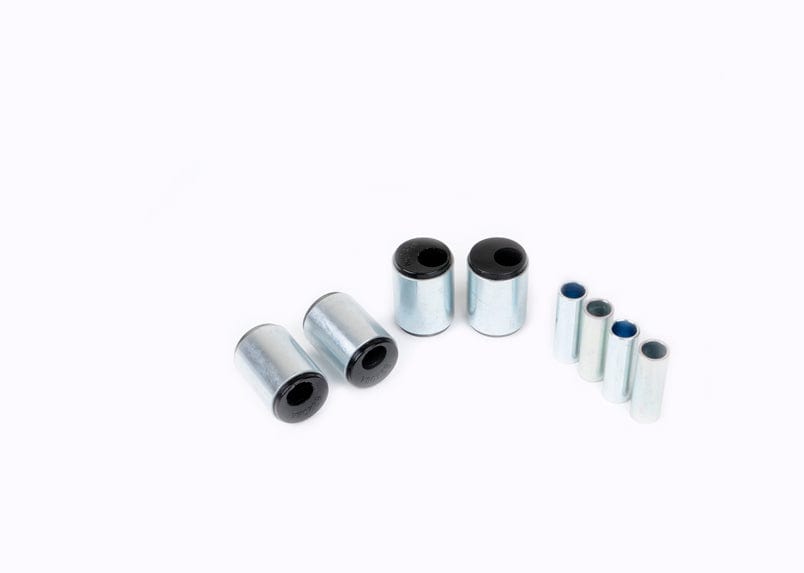

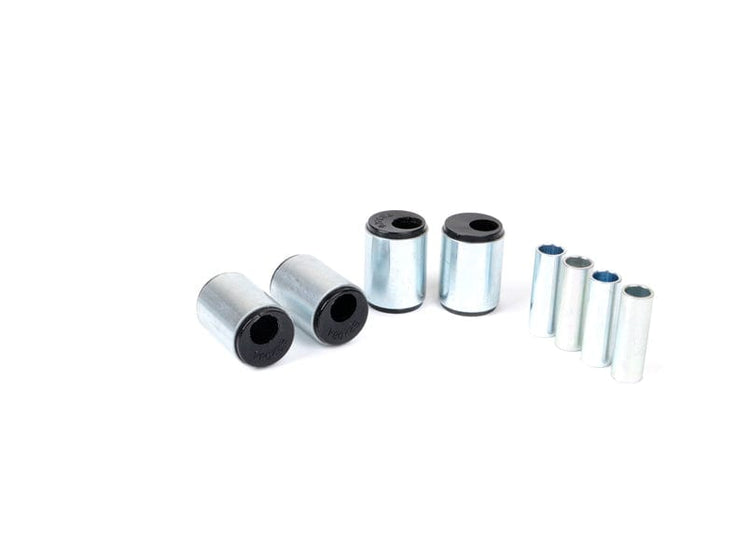

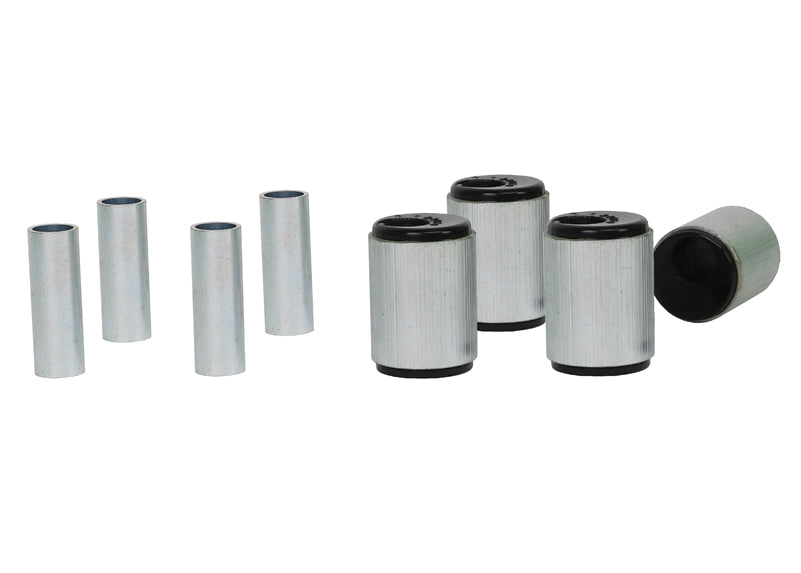

This Whiteline Front Upper Control Arm Bushing Kit fits the 1994-1997 Mazda MX-5 Miata M Edition (NA). In the box: 4 bushings and 4 tubes. It goes on the front of the vehicle. Application note: Adds 0.5 degrees Camber: "Approved for Spec Miata in both SCCA and NASA". Whiteline part number: KCA452.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the MX-5 Miata, see Adjustable Sway Bar Vehicle Link Kit, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
Specifications
Part Number KCA452
Part Name Control Arm Bushing
Vehicle 1994-1997 Mazda MX-5 Miata M Edition
Chassis Code NA
Bushing 1 Inner Diameter 15 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 14.3 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 40.3 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1994MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1995MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1996MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1997MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
