Product Details

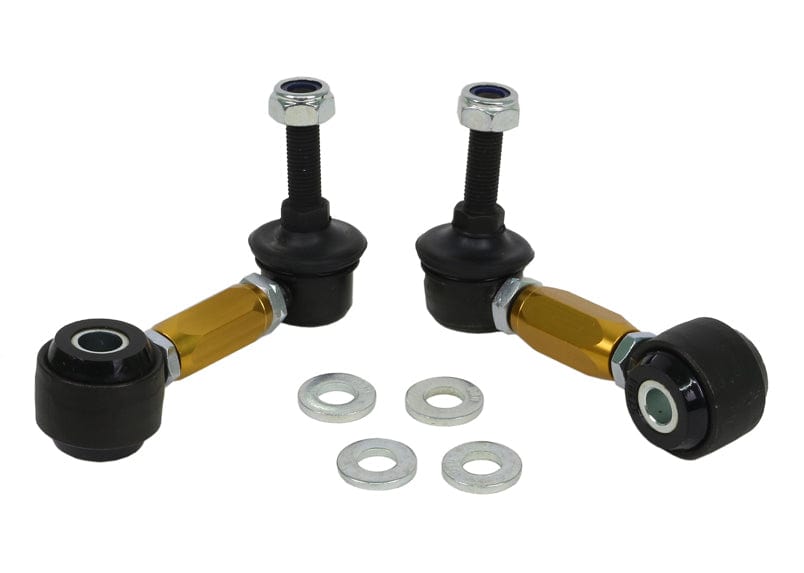

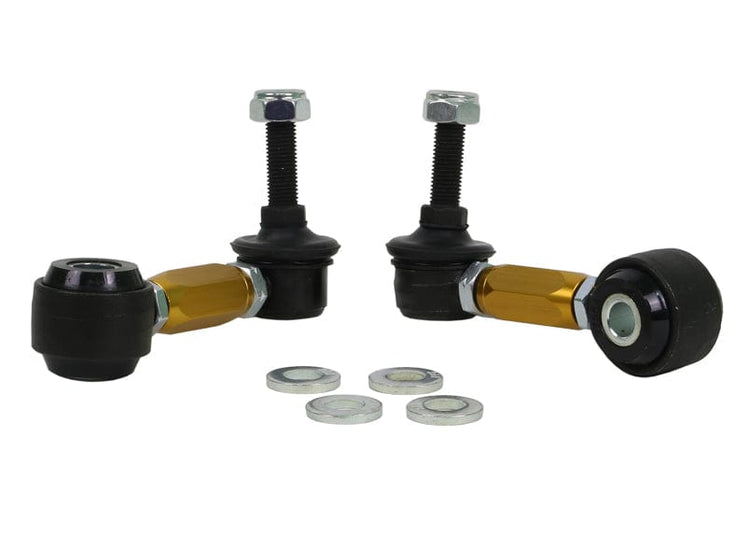

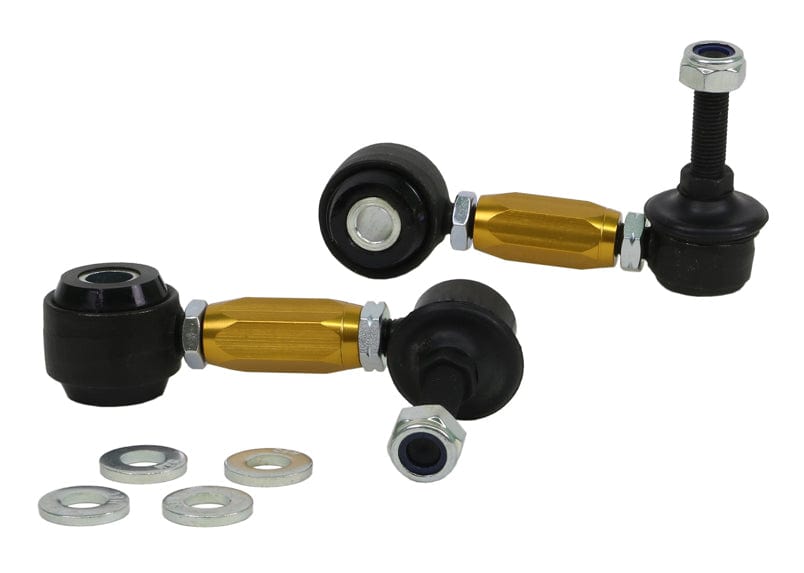

This Whiteline Adjustable Front Sway Bar Link fits the 1990-1997 Mazda MX-5 Miata Base (NA). The part number is KLC203. The kit contains 2 links and 4 washers. It goes on the front of the vehicle. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the MX-5 Miata: Adjustable Sway Bar Vehicle Link Kit, Front and Rear Sway Bar Kit, and Front Strut Tower Brace.

Features

  • Construction: Made from strong, light alloy.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Bushing compound: The synthetic elastomer used is low in compliance, so it flexes less.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
Specifications
Part Number KLC203
Part Name Sway Bar Link
Vehicle 1990-1997 Mazda MX-5 Miata Base
Chassis Code NA
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 95-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1990MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1991MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1992MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1993MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1994MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1995MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1996MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
1997MazdaMX-5 MiataRWDAdjustable Extra Heavy Duty. Length 95-115mm. Bolt Diameter 10mm.
