Product Details

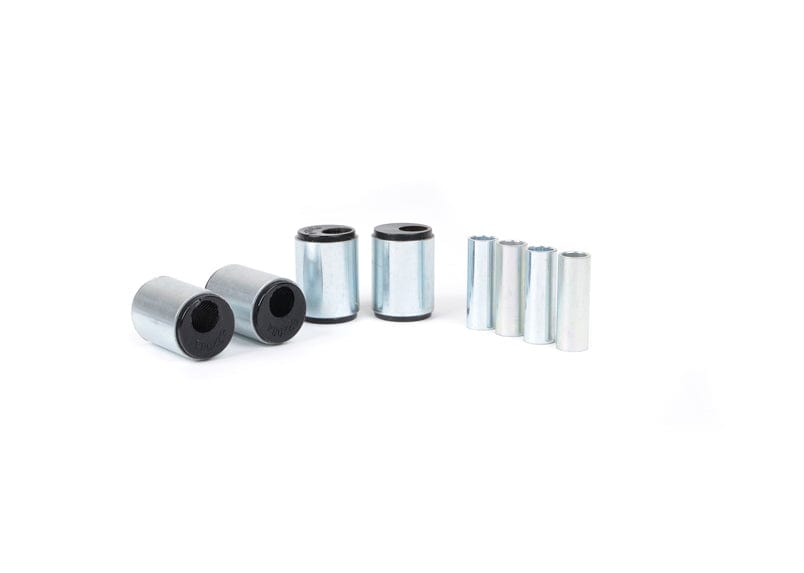

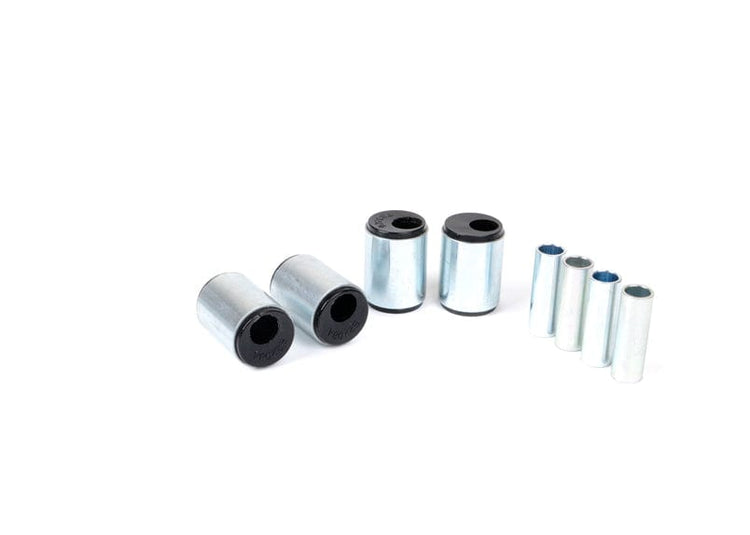

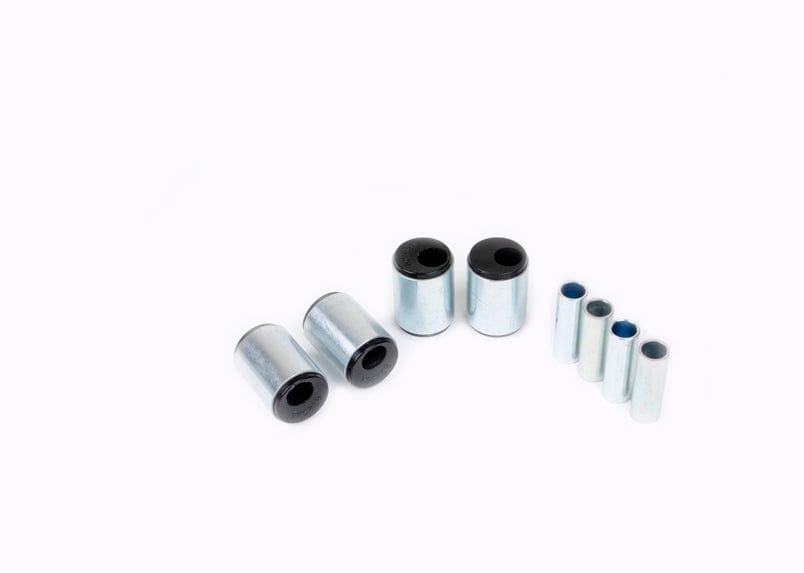

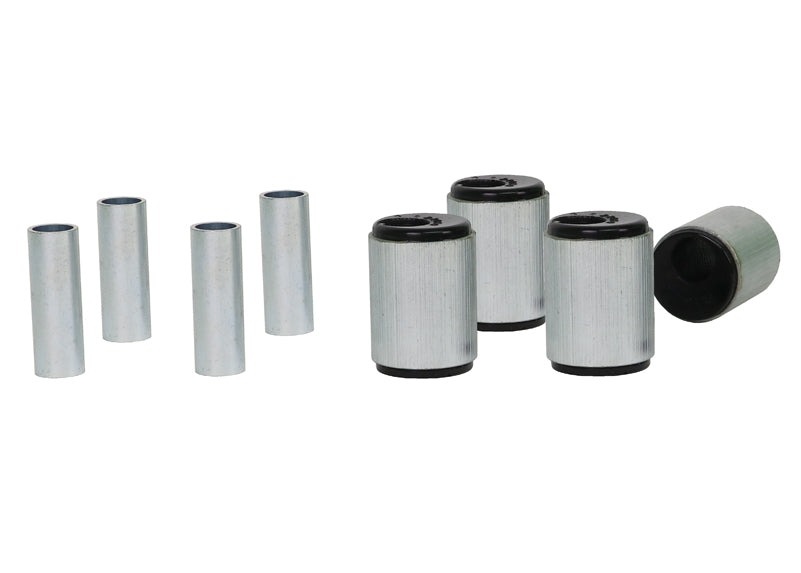

This Whiteline Front Upper Control Arm Bushing Kit fits the 1990-2005 Mazda MX-5 Miata Base (NA/NB). This part is for the front of the vehicle. The kit contains 4 bushings and 4 tubes. Whiteline's note for this fit: Adds 0.5 degrees Camber: "Approved for Spec Miata in both SCCA and NASA". Order it as part number KCA452.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Adjustable Front Sway Bar Link for the MX-5 Miata.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Polyurethane construction.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Install guide: Whiteline packs an install guide with it.
  • Camber adjustment: Aims to keep camber in an effective range as the body rolls.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number KCA452
Part Name Control Arm Bushing
Vehicle 1990-2005 Mazda MX-5 Miata Base
Drivetrain RWD
Chassis Code NA/NB
Bushing 1 Inner Diameter 15 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 14.3 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 40.3 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1990MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1991MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1992MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1993MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1994MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1995MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1996MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1997MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1998MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
1999MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2000MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2001MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2002MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2003MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2004MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2005MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
