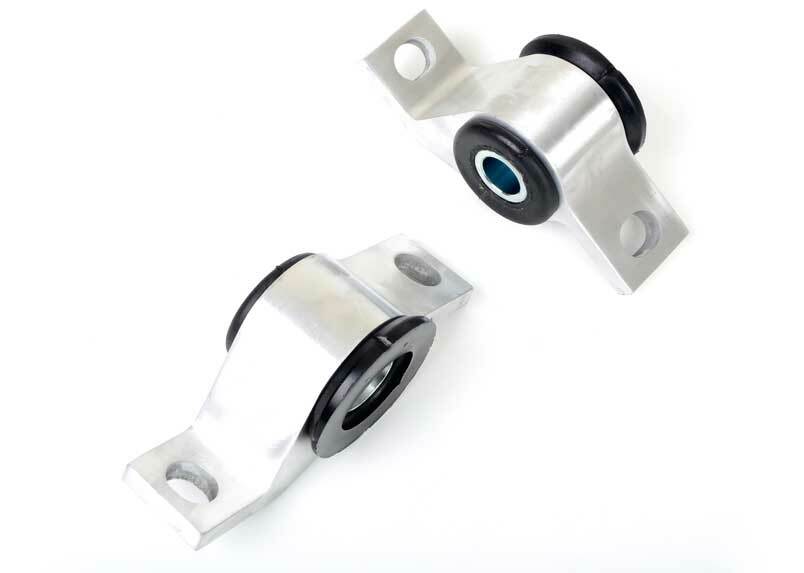

This Whiteline Front Control Arm Lower Inner Rear Bushing MOTORSPORT fits the 2007 Subaru WRX STI Limited (GD/GG). The part number is KCA359M. Application note: Adds 0.5 degrees Caster & Anti-Lift motorsport black option uses 95D. Included: 2 housings, 12 spacers, 4 bolts, and 6 washers. Placement: front. Chassis code: GD/GG.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. We also list Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Strut Tower Brace Quick Release Kit for the WRX STI.

Features

  • Hardware: Supplied with mounting hardware.
  • Material: Polyurethane construction.
  • Finish: A powder coated finish resists corrosion and wear.
  • Install guide: Whiteline packs an install guide with it.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number KCA359M
Part Name Control Arm Bushing
Vehicle 2007 Subaru WRX STI Limited
Drivetrain AWD
Chassis Code GD/GG
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5

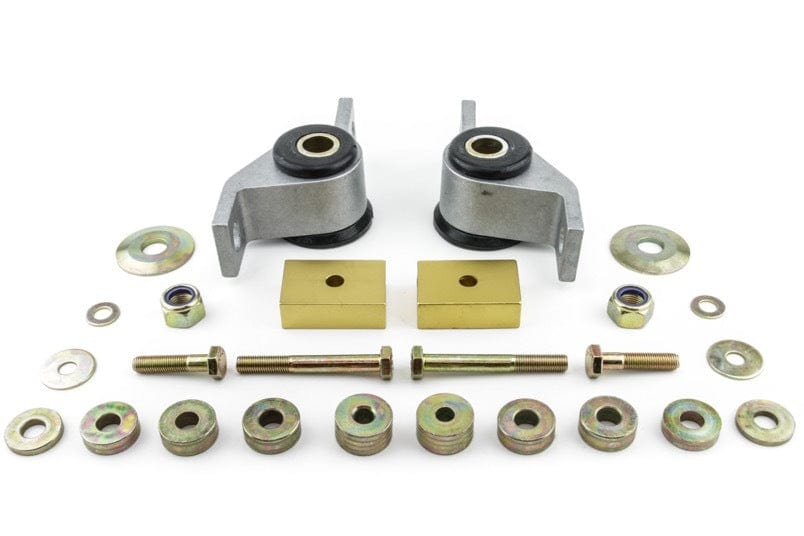

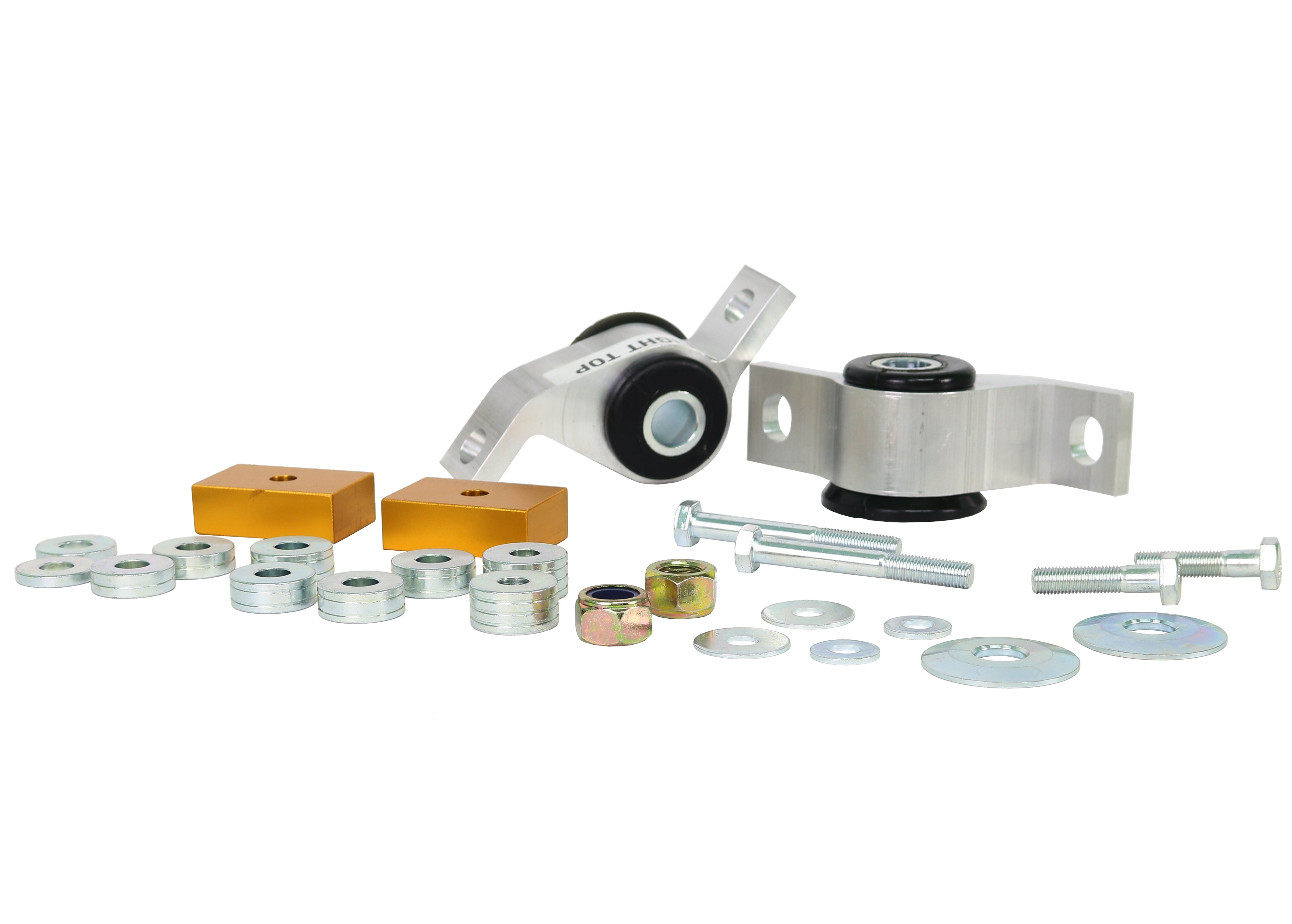

Kit Contents 2 Housings, 12 Spacers, 4 Bolts, 6 Washers
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
