Product Details

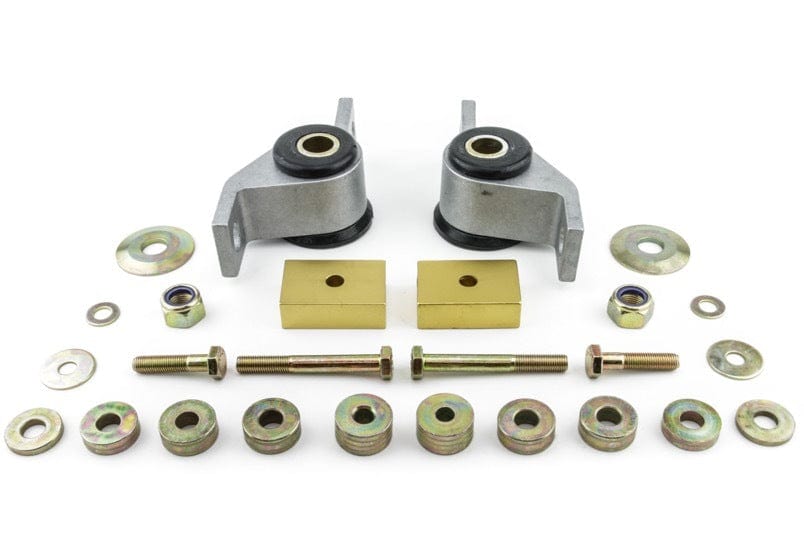

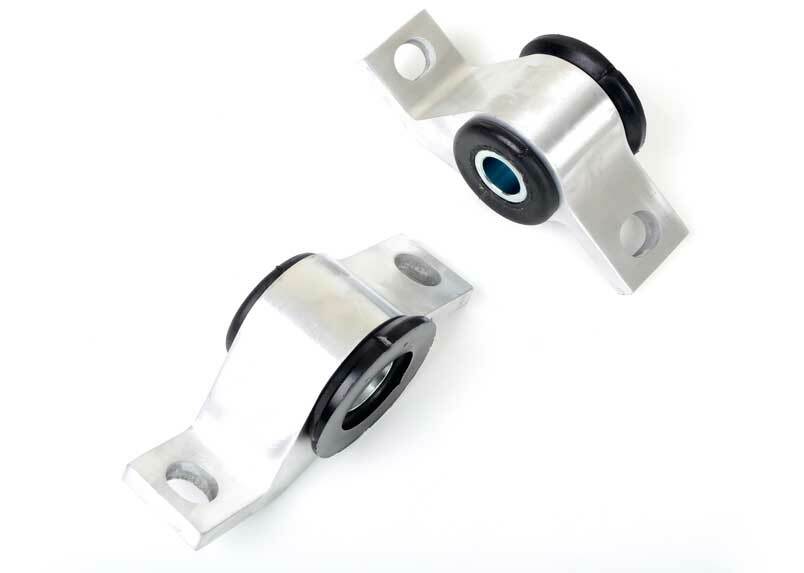

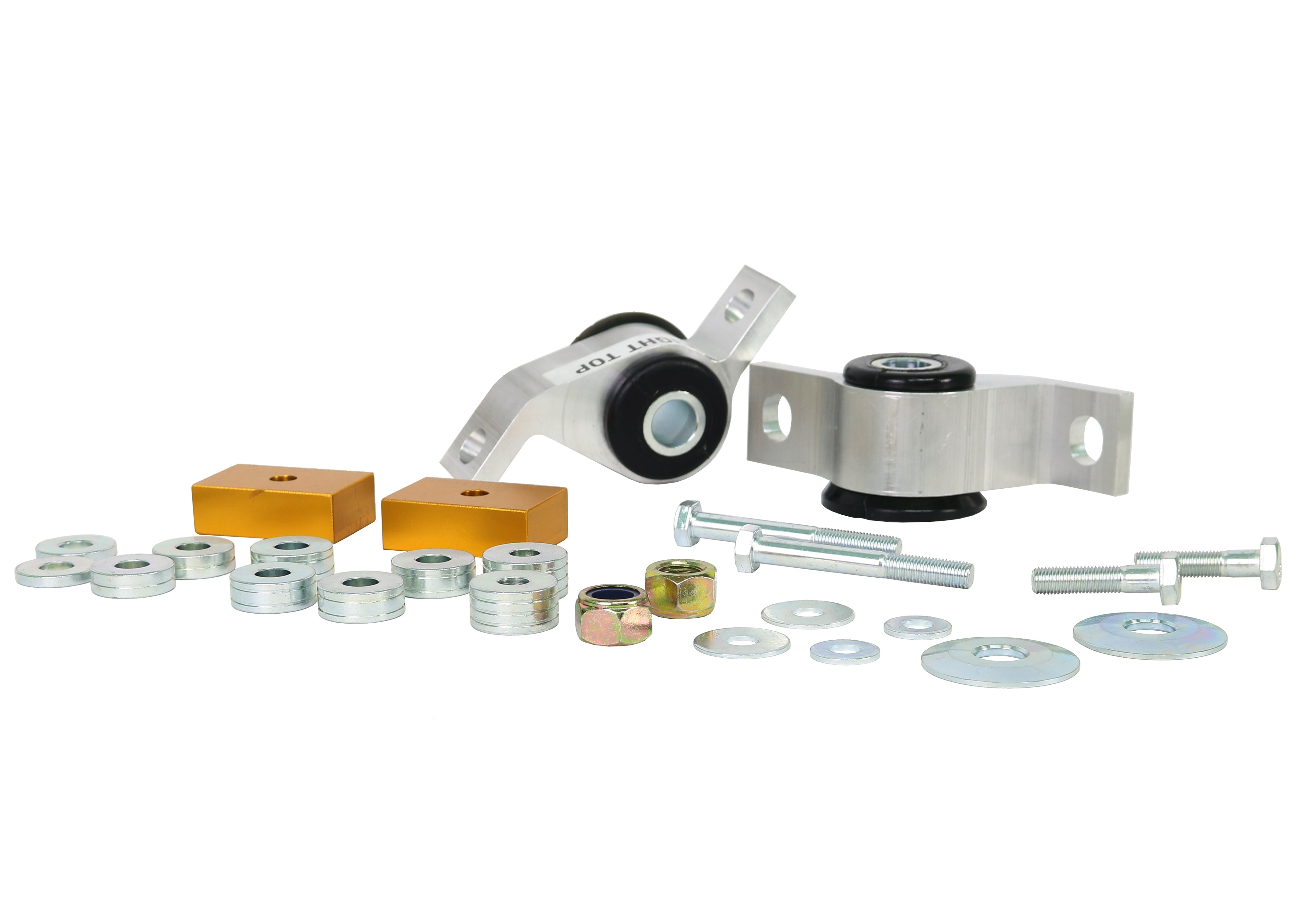

This Whiteline Front Control Arm Lower Inner Rear Bushing MOTORSPORT fits the 2004-2007 Subaru WRX STI Base (GD). This part is for the front of the vehicle. The kit contains 2 housings, 12 spacers, 4 bolts, and 6 washers. Application note: Adds 0.5 degrees Caster & Anti-Lift motorsport black option uses 95D. The part number is KCA359M.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the WRX STI: Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Strut Tower Brace Quick Release Kit.

Features

  • Install guide: An install guide comes in the box.
  • Hardware: Also in the box: mounting hardware.
  • Material: The part is made of polyurethane.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
Part Number KCA359M
Part Name Control Arm Bushing
Vehicle 2004-2007 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GD
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Housings, 12 Spacers, 4 Bolts, 6 Washers
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
2005SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
2006SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
2007SubaruWRX STIAWDAdds 0.5 Degrees Caster & Anti-Lift MOTORSPORT BLACK option uses 95D
