Product Details

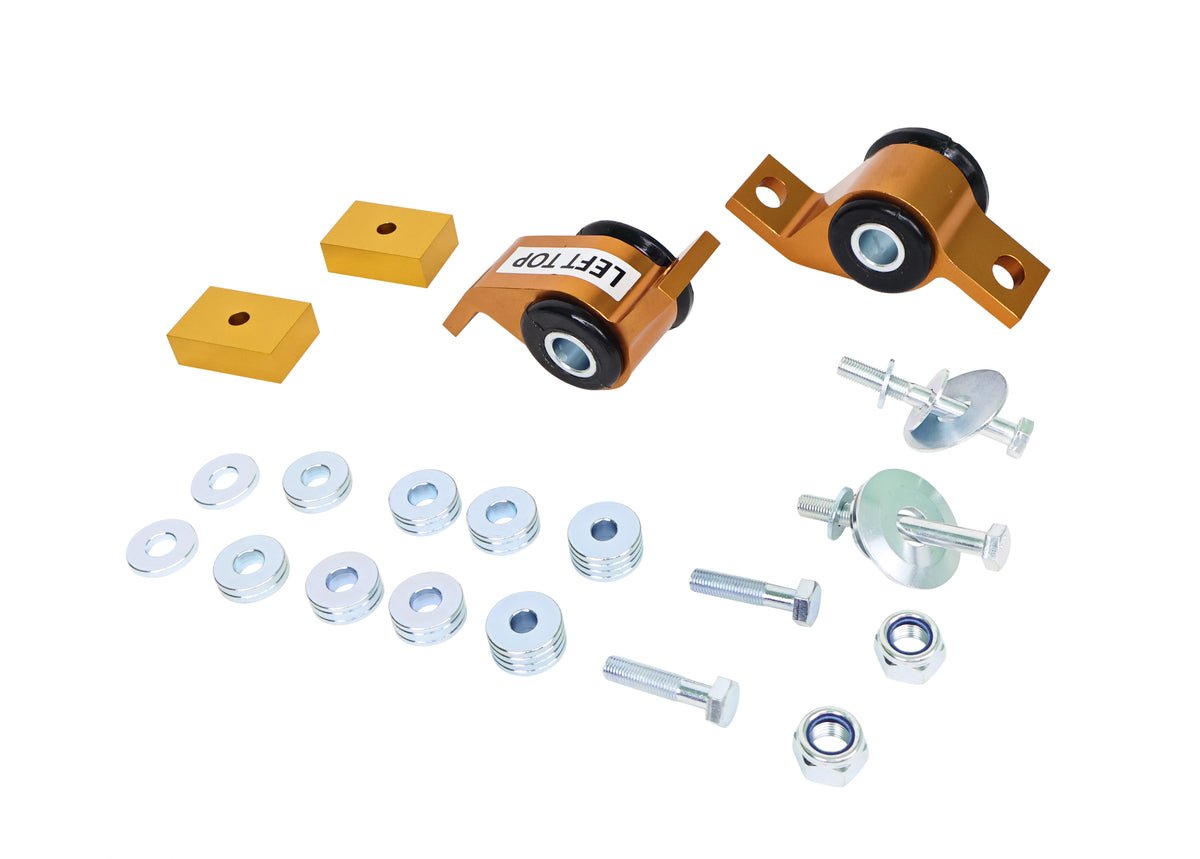

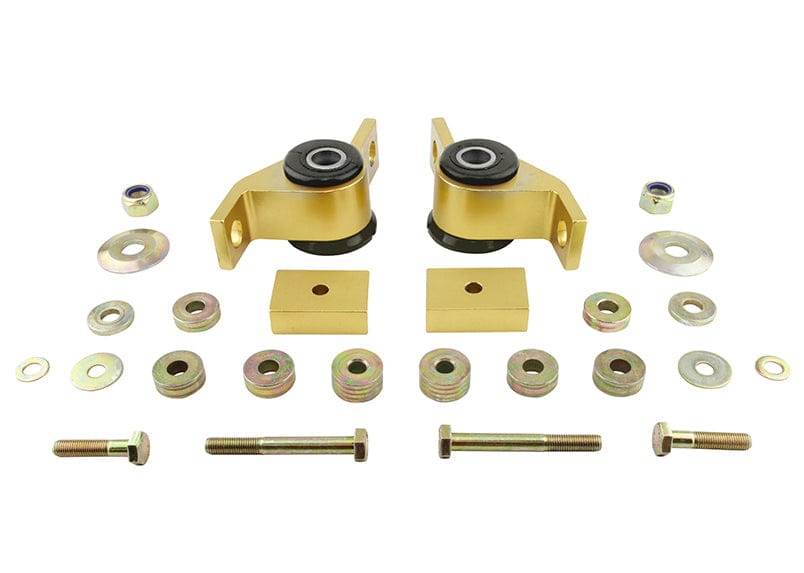

This Whiteline Front Control Arm Lower Inner Rear Bushing Comfort fits the 2004-2007 Subaru WRX STI Base (GD). The kit contains 2 housings, 12 spacers, 4 bolts, and 6 washers. Application note: Adds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing. It goes on the front of the vehicle. Order it as part number KCA362.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the WRX STI: Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Strut Tower Brace Quick Release Kit.

Features

  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Install guide: Whiteline packs an install guide with it.
  • Material: The part is made of polyurethane.
  • Hardware: The kit includes mounting hardware.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number KCA362
Part Name Control Arm Bushing
Vehicle 2004-2007 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GD
Bushing 1 Inner Diameter 20 mm
Bushing 1 Length 52.5 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 20 mm
Bushing 2 Length 52.5 mm
Bushing 2 Outer Diameter 39.5 mm
Bushing Quantity 2
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Housings, 12 Spacers, 4 Bolts, 6 Washers
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 39.5 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004SubaruWRX STIAWDAdds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing
2005SubaruWRX STIAWDAdds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing
2006SubaruWRX STIAWDAdds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing
2007SubaruWRX STIAWDAdds 0.5 Caster & Anti Lift Comfort Option Uses 75 Duro Bushing
