Product Details

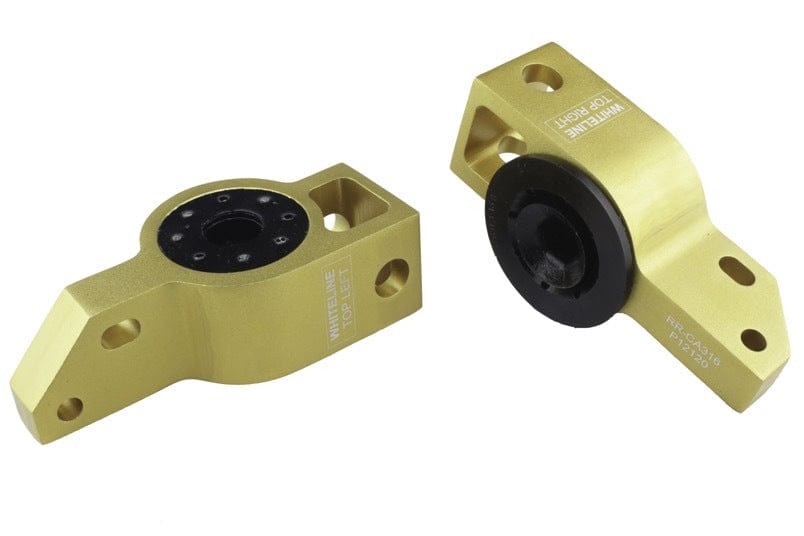

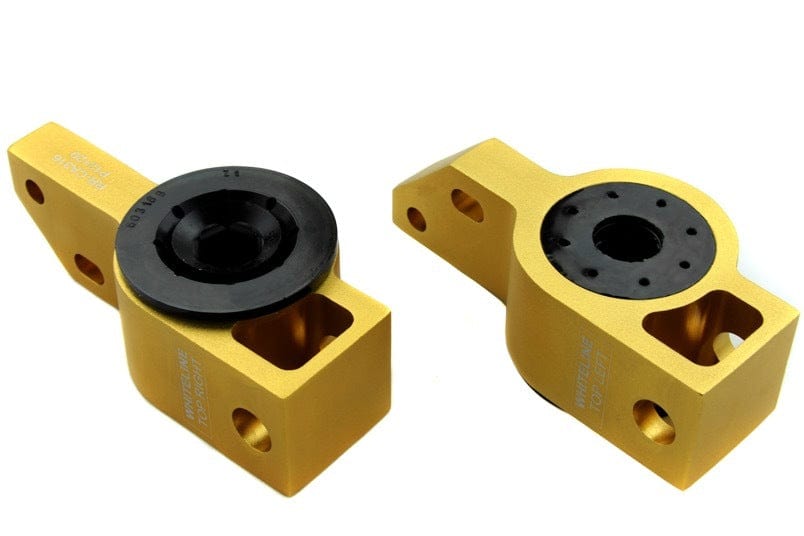

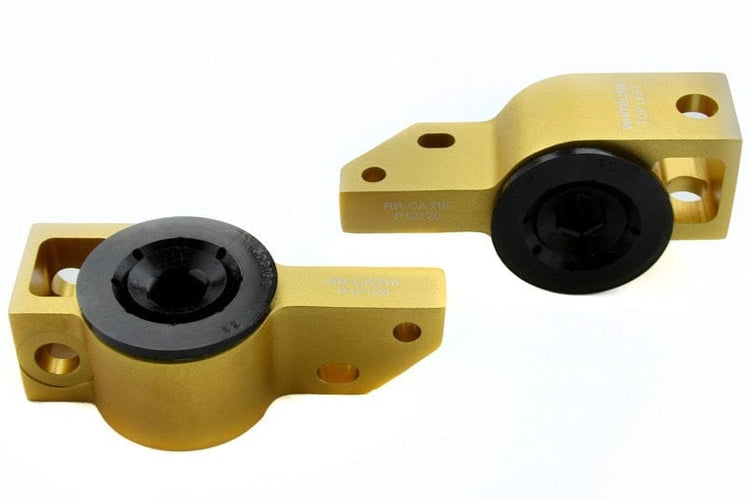

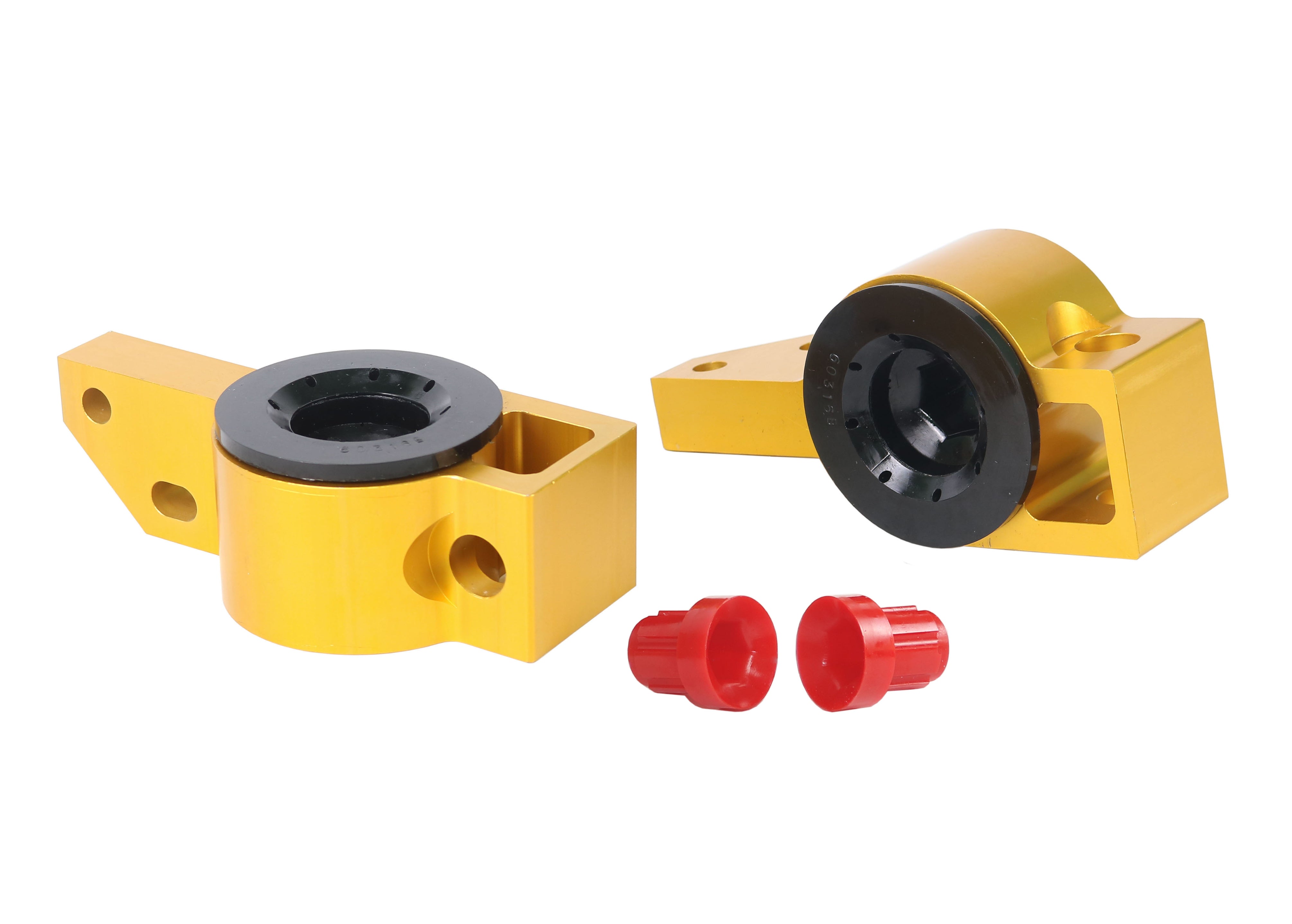

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2012 Volkswagen Eos Executive (1F). It goes on the front of the vehicle. Part number KCA316. Application note: Adds +0.5 degrees Caster + Anti-Lift. In the box: 2 housings.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Installation is rated difficult, with about 2 hours of work listed. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volkswagen Eos.

Features

  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Caster: Optimizes caster for better contact during roll and more stable steering.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Install guide: Written install instructions are included with the part.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2012 Volkswagen Eos Executive
Chassis Code 1F
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012VolkswagenEosFWDAdds +0.5 Degree Caster + Anti-Lift
