Product Details

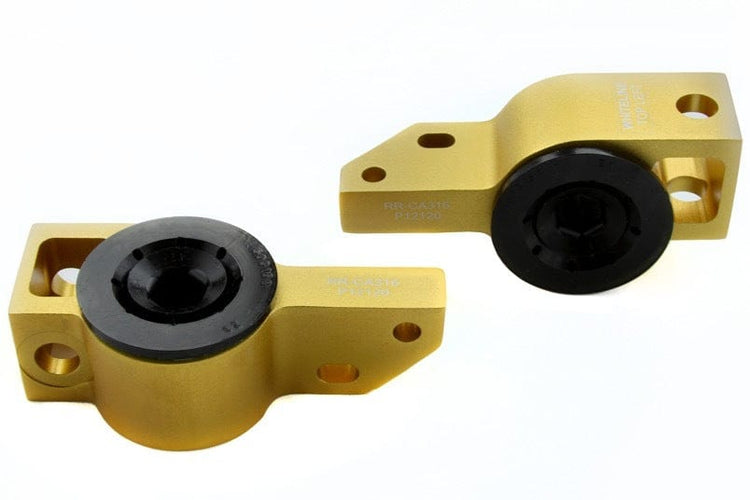

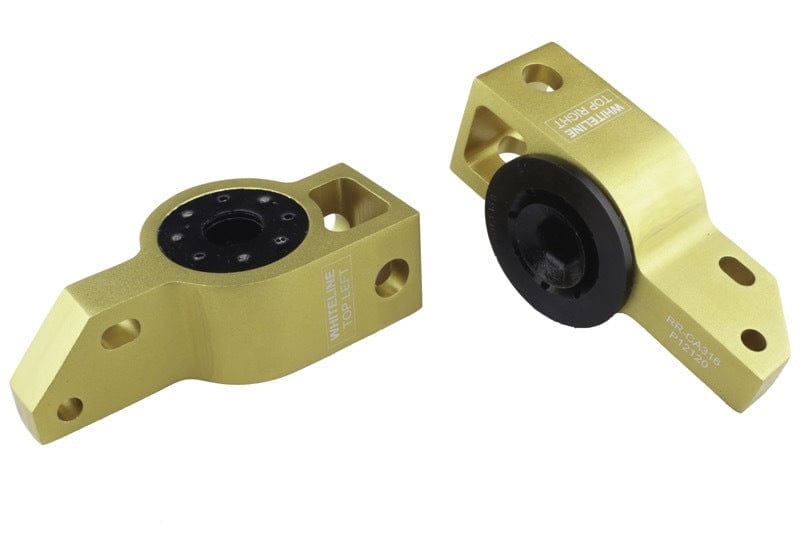

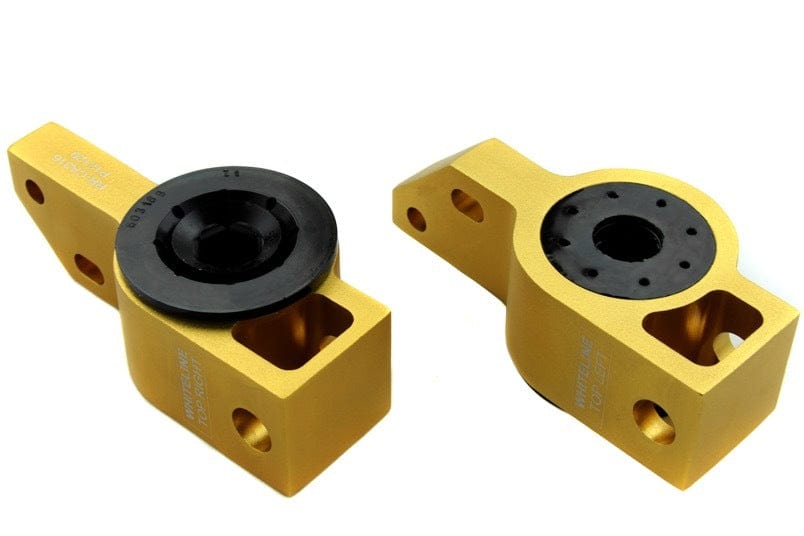

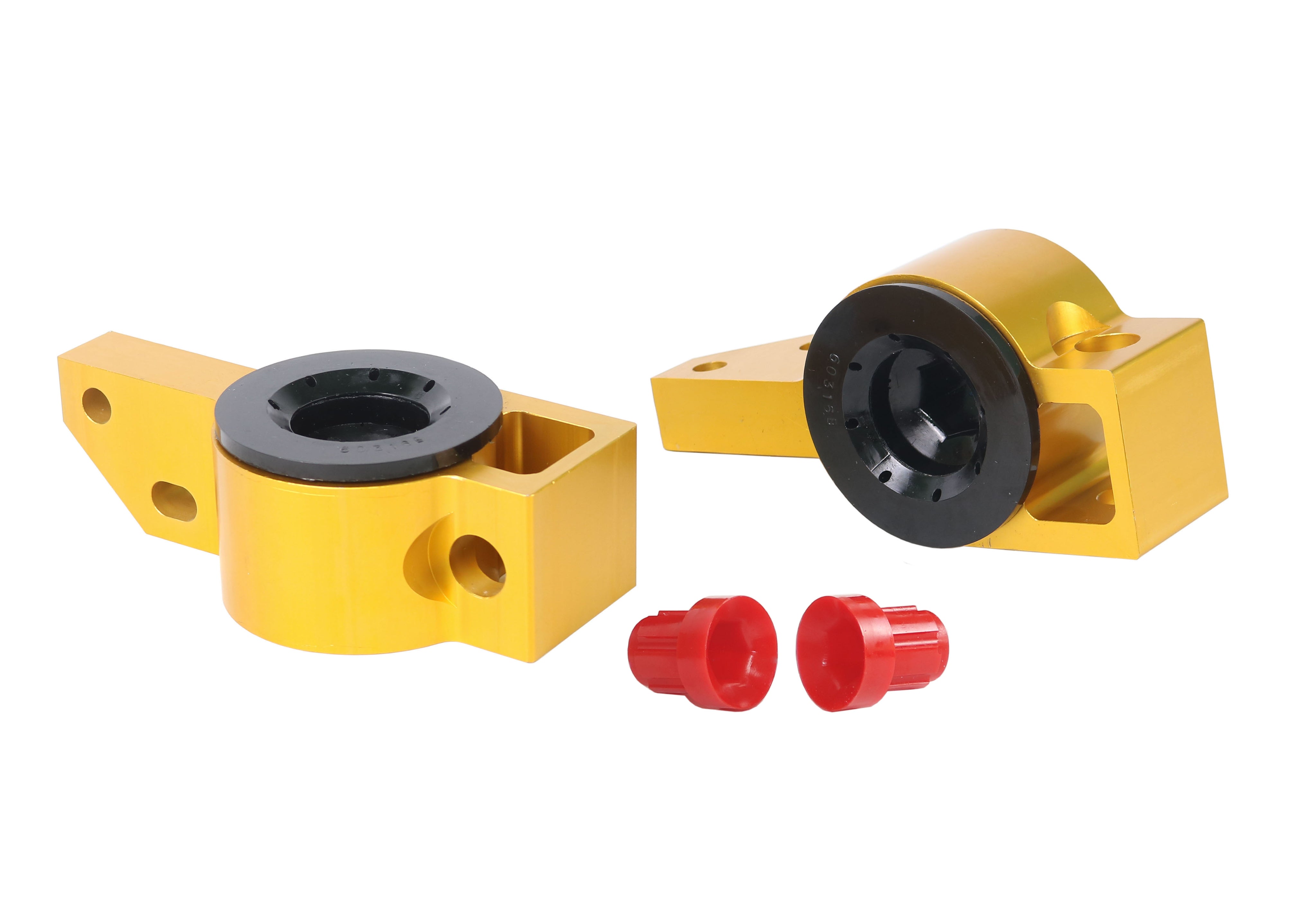

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2010 Volkswagen Jetta TDI Cup Edition (1K). The kit contains 2 housings. Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift. Whiteline part number: KCA316. It goes on the front of the vehicle.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Expect a difficult job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Jetta.

Features

  • Caster: Adds caster for steadier steering and better tire contact in roll.
  • Install guide: Whiteline packs an install guide with it.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2010 Volkswagen Jetta TDI Cup Edition
Chassis Code 1K
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
