Product Details

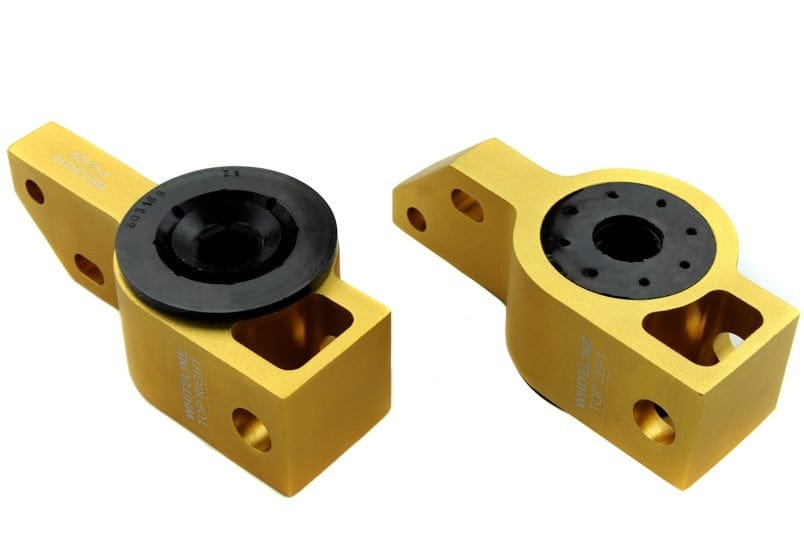

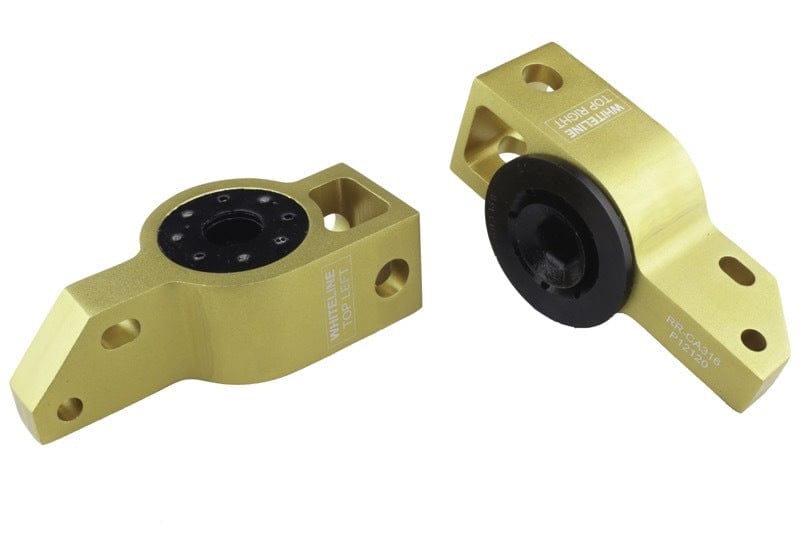

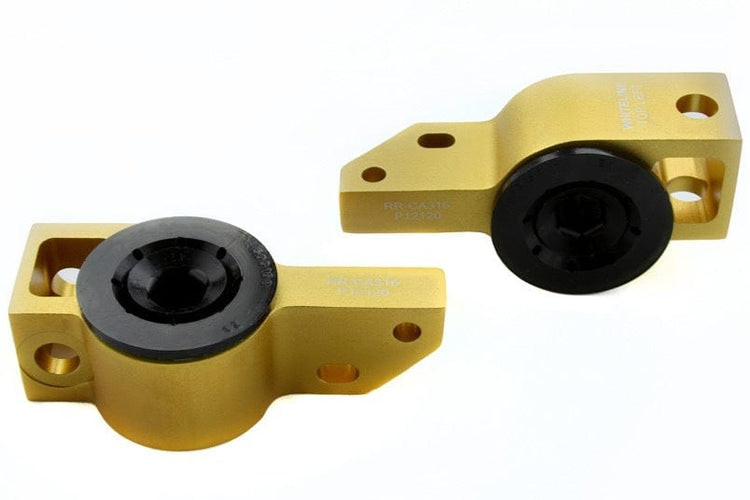

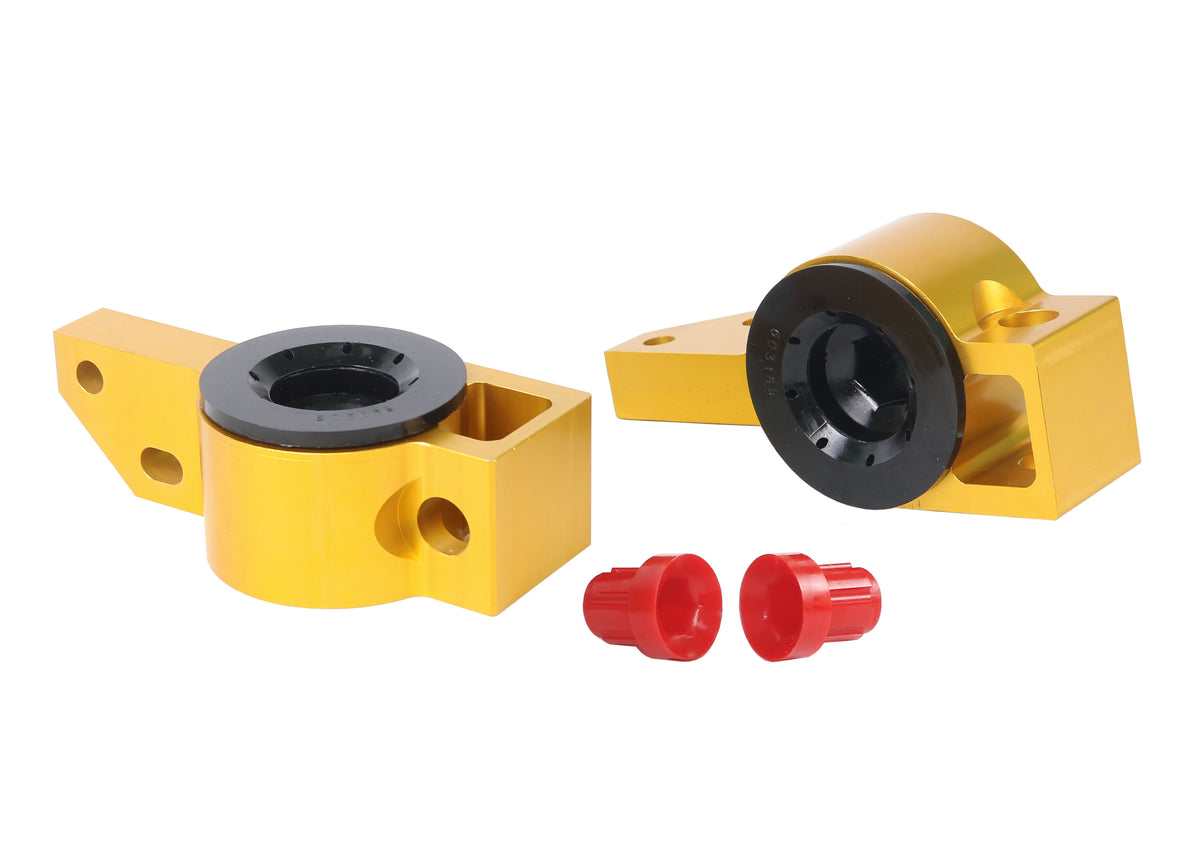

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2008-2012 Volkswagen Jetta SEL (5K). The kit contains 2 housings. This part is for the front of the vehicle. Part number KCA316. Application note: Adds +0.5 degrees Caster + Anti-Lift.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Expect a difficult job of about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Jetta: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Caster: Adds caster to improve turn-in and directional stability.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bump steer: Designed to reduce unwanted bump steer and improve steering behavior.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2008-2012 Volkswagen Jetta SEL
Chassis Code 5K
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2009VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2010VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2011VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2012VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
