Product Details

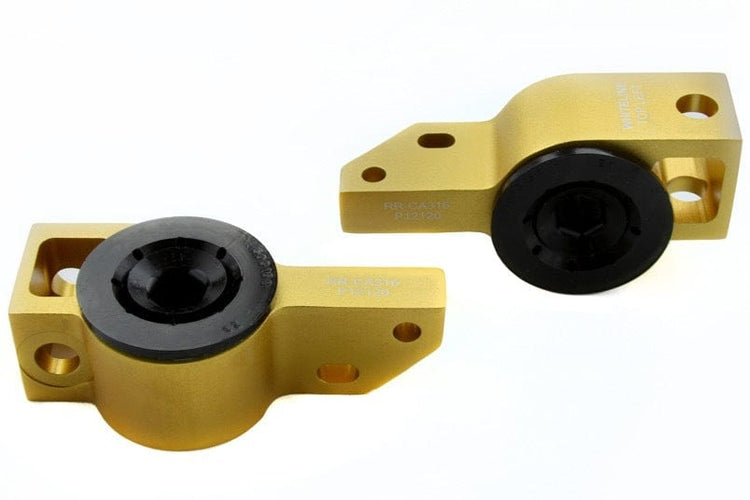

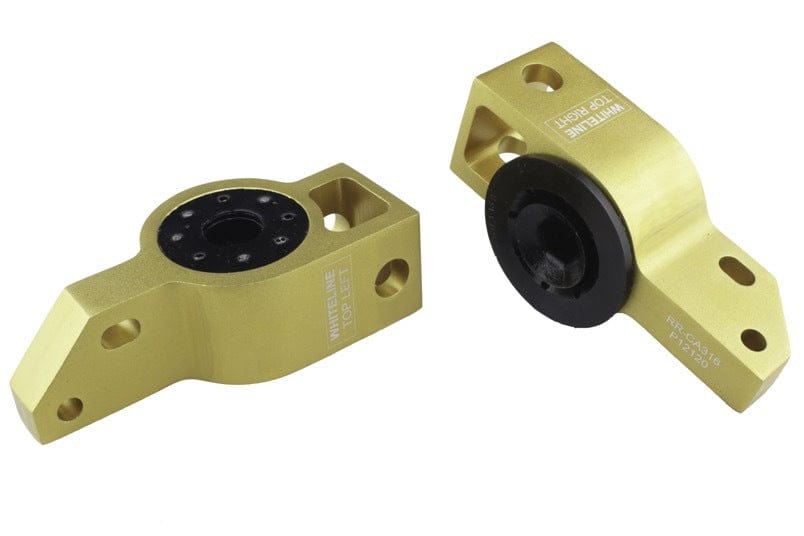

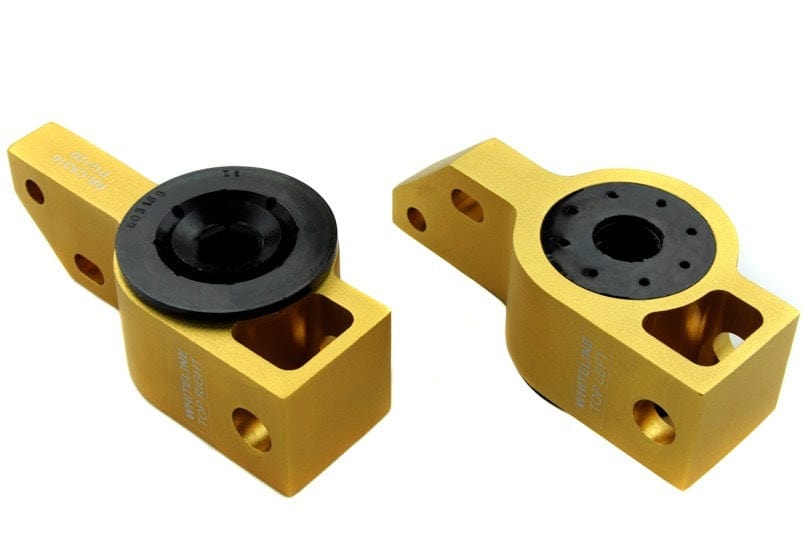

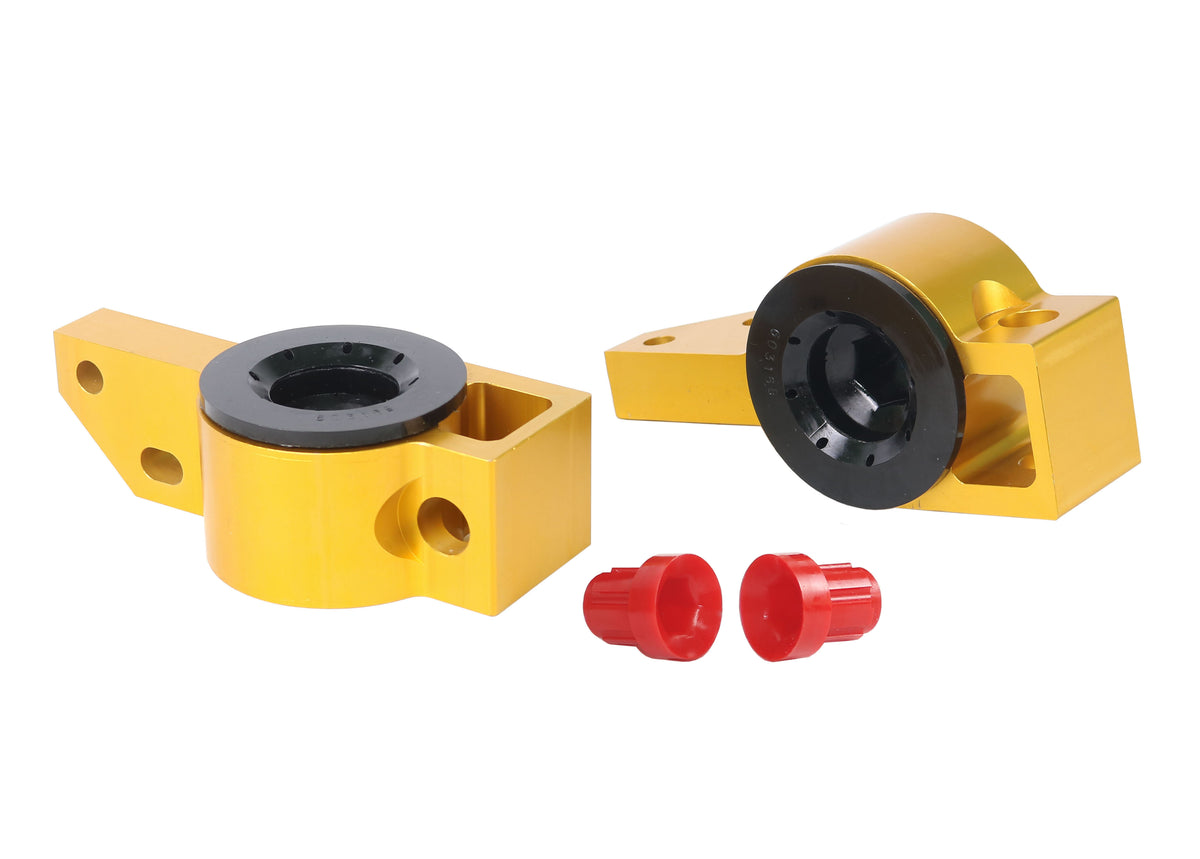

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2008-2009 Volkswagen Rabbit S (1K). The part number is KCA316. Placement: front. The kit contains 2 housings. Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Installation is rated difficult, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Rabbit, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Caster: Caster is optimized for stable steering and good contact through roll.
  • Bump steer: Helps cut bump steer for steadier steering over bumps.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2008-2009 Volkswagen Rabbit S
Chassis Code 1K
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenRabbitFWDAdds +0.5 Degree Caster + Anti-Lift
2009VolkswagenRabbitFWDAdds +0.5 Degree Caster + Anti-Lift
