Product Details

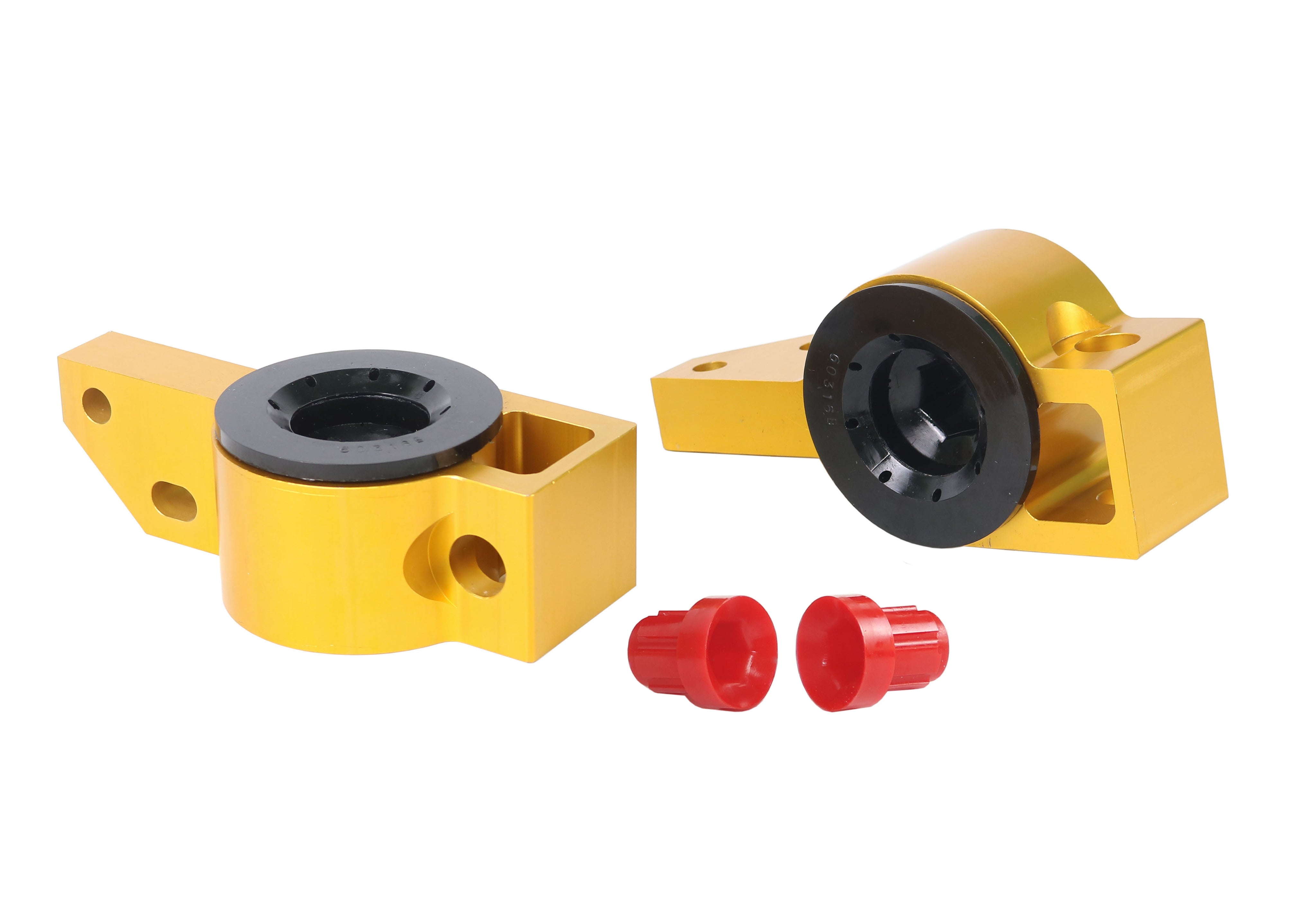

This Whiteline Front Control Arm Lower Inner Rear Bushing (Anti-Lift/Caster) fits the 2007-2010 Volkswagen Jetta Wolfsburg Edition (1K). Whiteline part number: KCA316. This part is for the front of the vehicle. Whiteline's note for this fit: Adds +0.5 degrees Caster + Anti-Lift. Chassis code: 1K. Included: 2 housings.

A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.

Whiteline rates the install as difficult and lists about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Jetta: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Caster: Optimizes caster for better contact during roll and more stable steering.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bump steer: Helps cut bump steer for steadier steering over bumps.
  • Install guide: Written install instructions are included with the part.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
Specifications
Part Number KCA316
Part Name Control Arm Bushing
Vehicle 2007-2010 Volkswagen Jetta Wolfsburg Edition
Chassis Code 1K
Bushing 1 Inner Diameter 18.8 mm
Bushing 1 Length 39.5 mm
Bushing 1 Outer Diameter 29 mm
Bushing 2 Inner Diameter 29 mm
Bushing 2 Length 55 mm
Bushing 2 Outer Diameter 65.7 mm
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 2
Color Gold
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 2 Housings
Material 6061-T6 Billet Aluminum
Mounting Hardware Included No
Outside Diameter 29 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +0.5 Degree Caster + Anti-Lift

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2008VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2009VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
2010VolkswagenJettaFWDAdds +0.5 Degree Caster + Anti-Lift
