Product Details

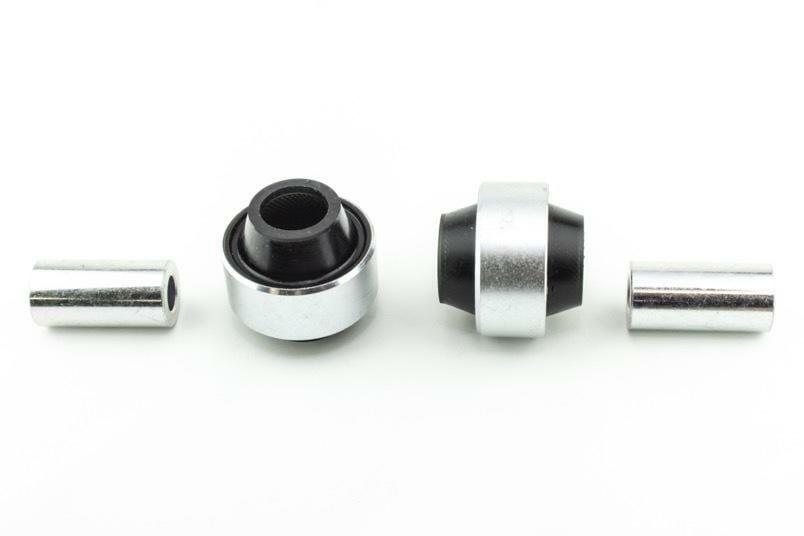

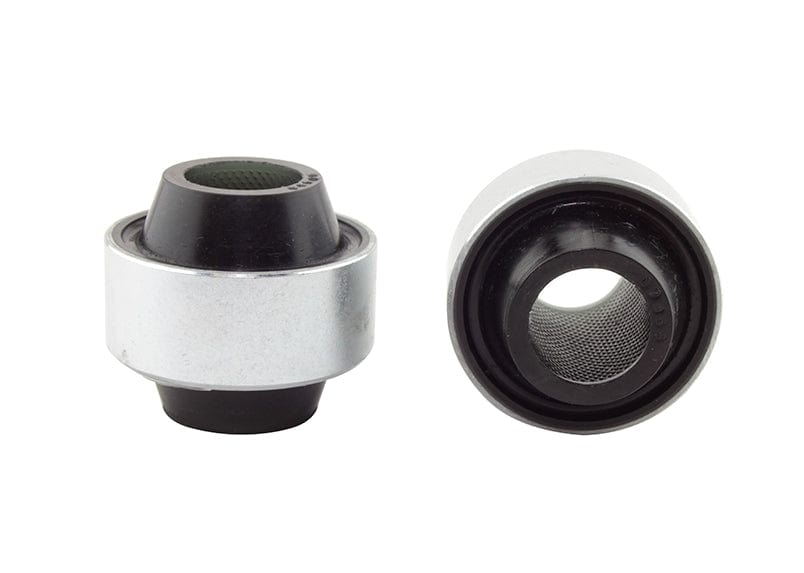

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2016 Jeep Patriot 75th Anniversary (MK). Application note: Standard Replacement. You receive 2 shell bushings and 2 tubes. Whiteline part number: W53382. Position: front.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Patriot, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Front Sway Bar Link.
Features
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Install guide: Written install instructions are included with the part.
- Material: The part is made of polyurethane.
Specifications
| Part Number | W53382 |
| Part Name | Control Arm Bushing |
| Vehicle | 2016 Jeep Patriot 75th Anniversary |
| Chassis Code | MK |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 60.2 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
