Product Details

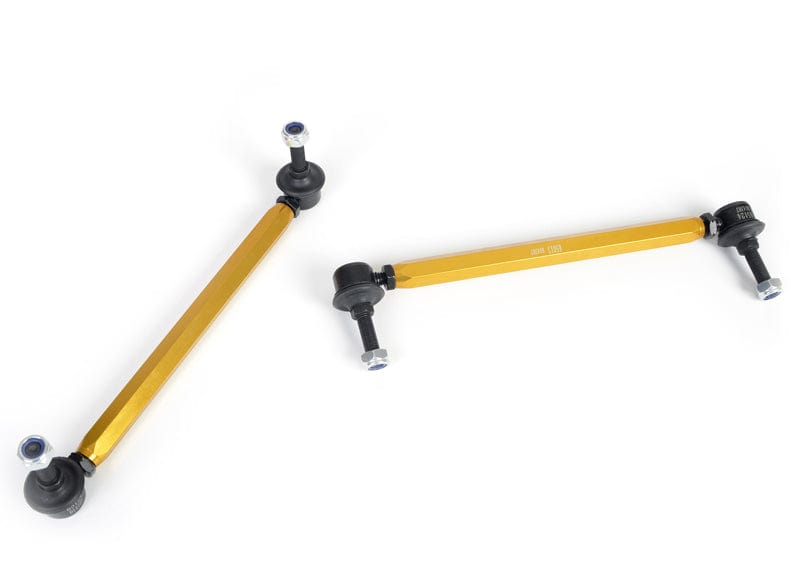

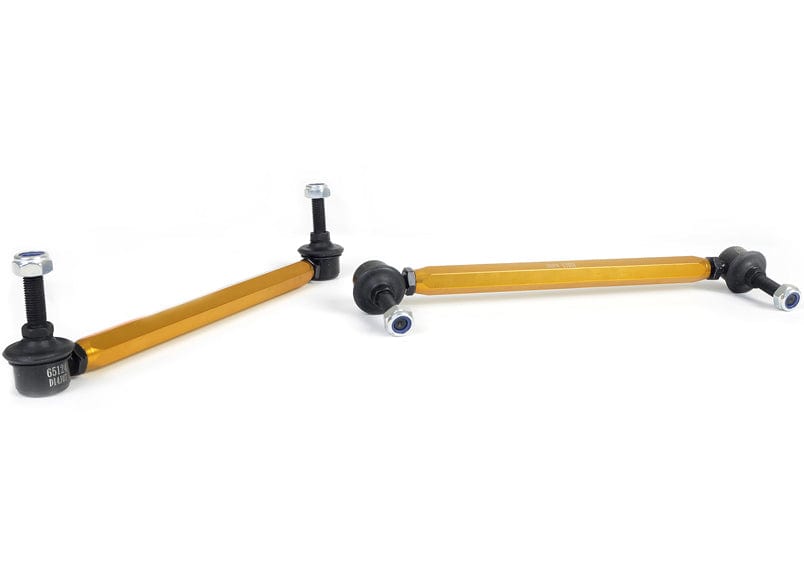

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2017 Jeep Patriot Sport (MK). The kit contains 2 links. Part number KLC163. It goes on the front of the vehicle.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. A wheel alignment is not required. To go with it on the Patriot, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Install guide: Step-by-step installation instructions come with it.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Anodized alloy: The alloy carries an anodized finish for durability.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2007-2017 Jeep Patriot Sport
Chassis Code MK
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2007JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2008JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2009JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2010JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2011JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2012JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2013JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2014JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2015JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2016JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
2017JeepPatriotLength 270-295mm. Bolt Diameter 10mm.
