Product Details

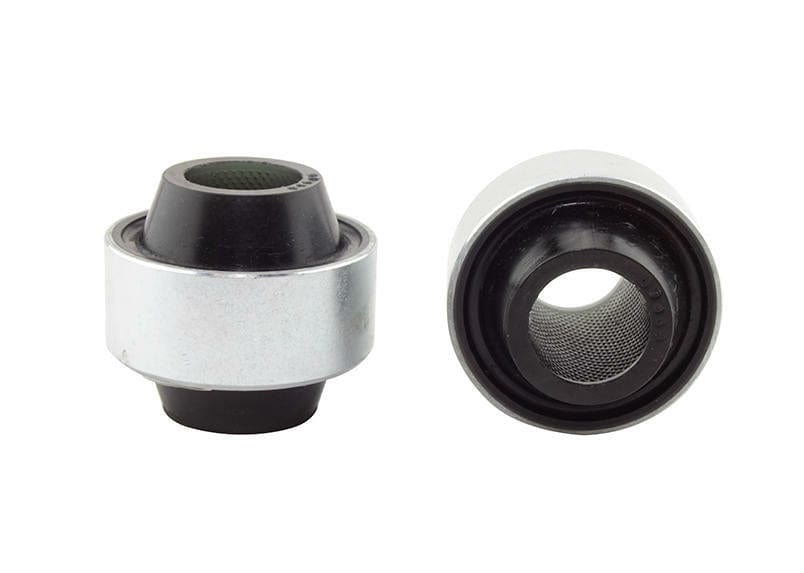

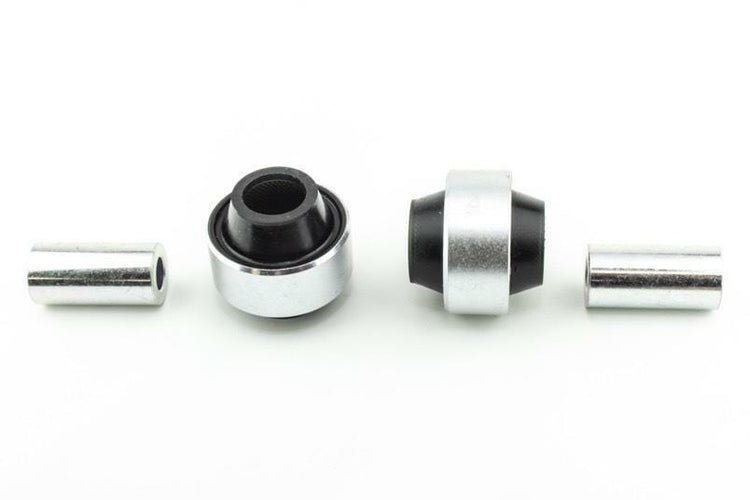

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2012 Dodge Caliber SXT Plus (PM). Part number W53382. This part is for the front of the vehicle. Whiteline's note for this fit: Standard Replacement. The kit contains 2 shell bushings and 2 tubes.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. Other Whiteline parts we list for the Caliber: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Front Sway Bar Link.
Features
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bonded design: Bonding adds durability in high-load use.
- Install guide: Whiteline packs an install guide with it.
- Material: The part is made of polyurethane.
Specifications
| Part Number | W53382 |
| Part Name | Control Arm Bushing |
| Vehicle | 2012 Dodge Caliber SXT Plus |
| Drivetrain | FWD |
| Chassis Code | PM |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 60.2 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
