Product Details

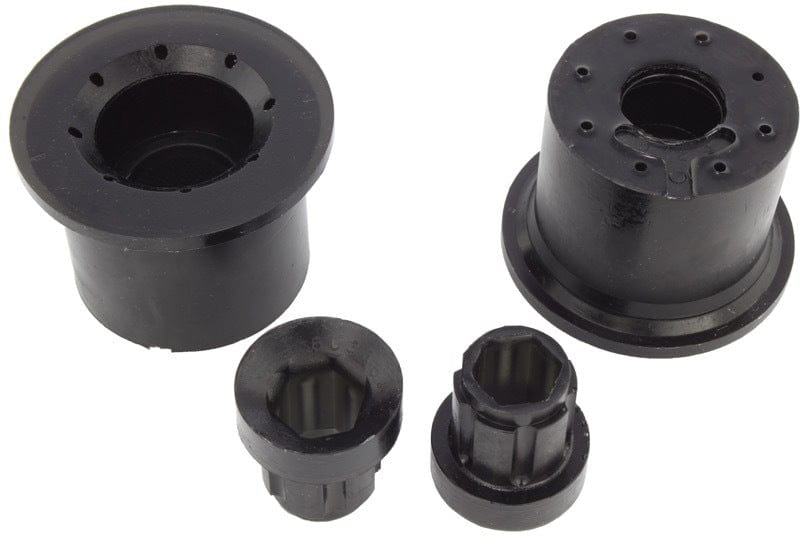

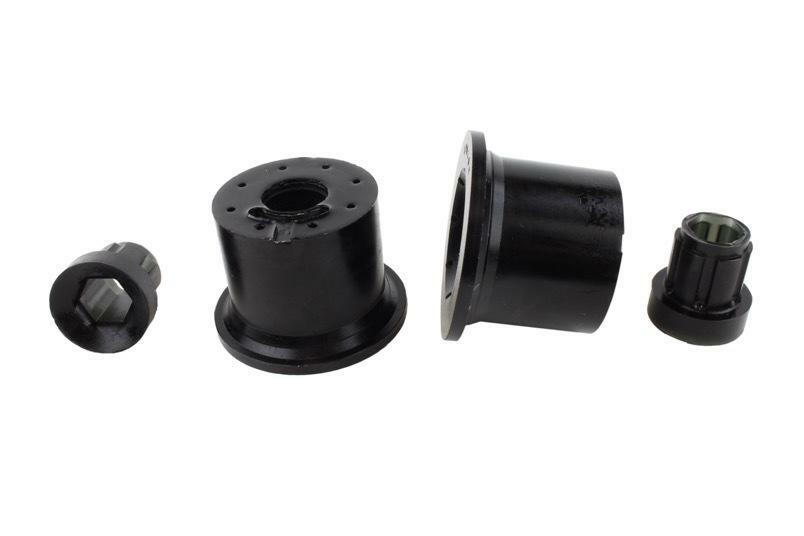

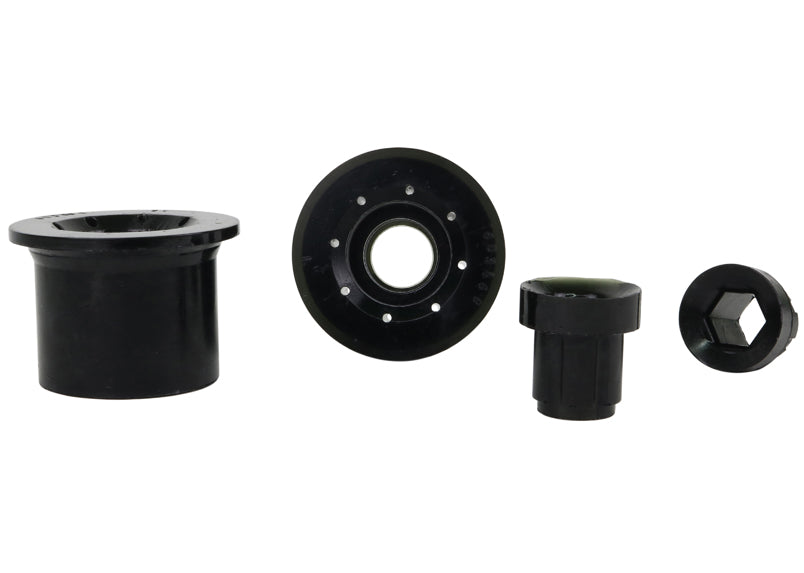

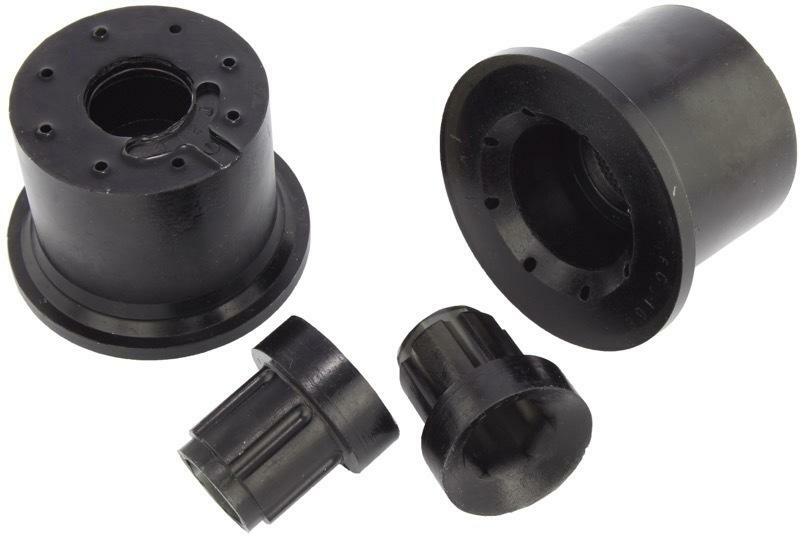

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2008-2013 Volkswagen Eos Lux (1F). Application note: Standard Replacement. In the box: 2 bushings. Chassis code: 1F. It goes on the front of the vehicle. The part number is W53196.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 3 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volkswagen Eos.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Material: The part is made of polyurethane.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number W53196
Part Name Control Arm Bushing
Vehicle 2008-2013 Volkswagen Eos Lux
Chassis Code 1F
Bushing 1 Inner Diameter 38.5 mm
Bushing 1 Outer Diameter 62.2 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Bushings
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenEosFWDStandard Replacement
2009VolkswagenEosFWDStandard Replacement
2010VolkswagenEosFWDStandard Replacement
2011VolkswagenEosFWDStandard Replacement
2012VolkswagenEosFWDStandard Replacement
2013VolkswagenEosFWDStandard Replacement
