Product Details

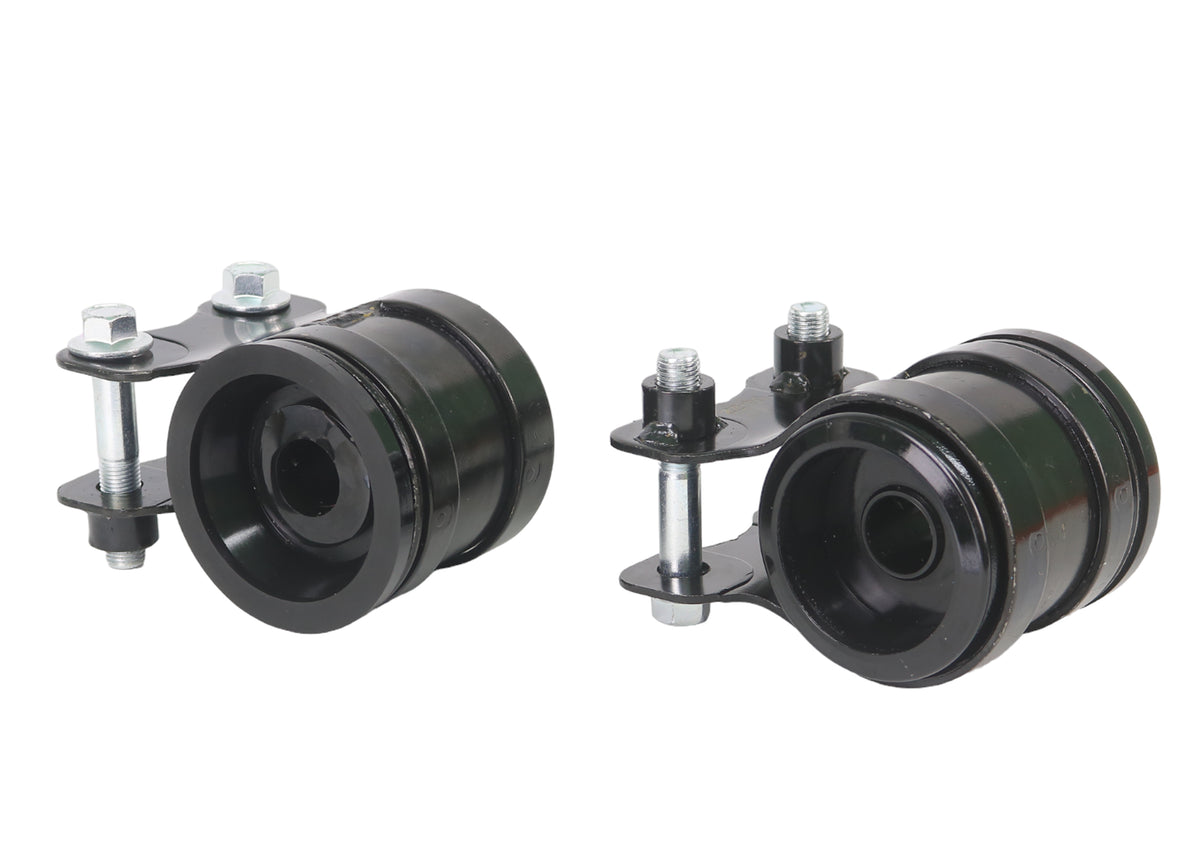

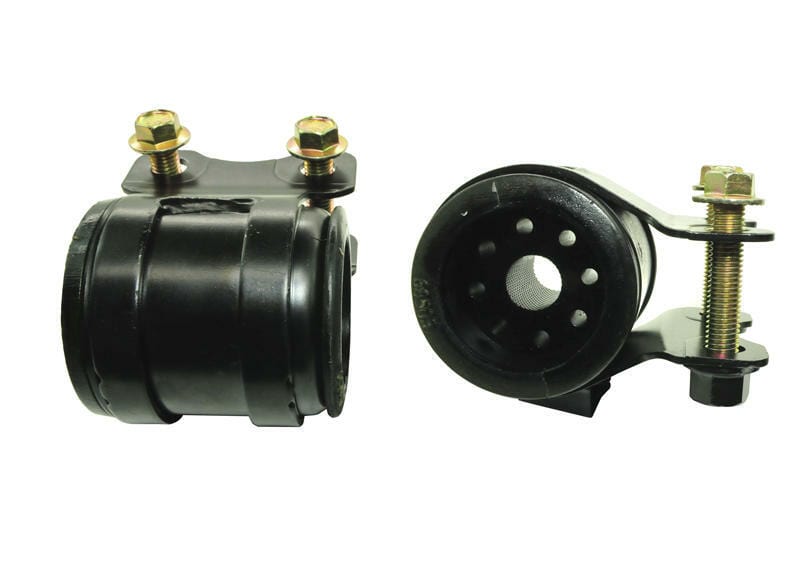

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2008-2012 Ford Focus S, SE (C307). In the box: 2 housings and 4 bolts. Application note: Standard Replacement: includes new housing. Part number W53528. Chassis code: C307. This part is for the front of the vehicle.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.
Expect an easy job of about 2 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Focus.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Compliance voids: Molded voids give the bushing room to flex where it needs to.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Material: Polyurethane construction.
- Hardware: Supplied with mounting hardware.
Specifications
| Part Number | W53528 |
| Part Name | Control Arm Bushing |
| Vehicle | 2008-2012 Ford Focus S, SE |
| Chassis Code | C307 |
| Bushing 1 Inner Diameter | 26 mm |
| Bushing 1 Length | 80.5 mm |
| Bushing 1 Outer Diameter | 68 mm |
| Bushing 2 Inner Diameter | 26 mm |
| Bushing 2 Length | 80.5 mm |
| Bushing 2 Outer Diameter | 68 mm |
| Bushing Quantity | 2 |
| Grade Type | Regular |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Housings, 4 Bolts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Outside Diameter | 68 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement - includes new housing |
