Product Details

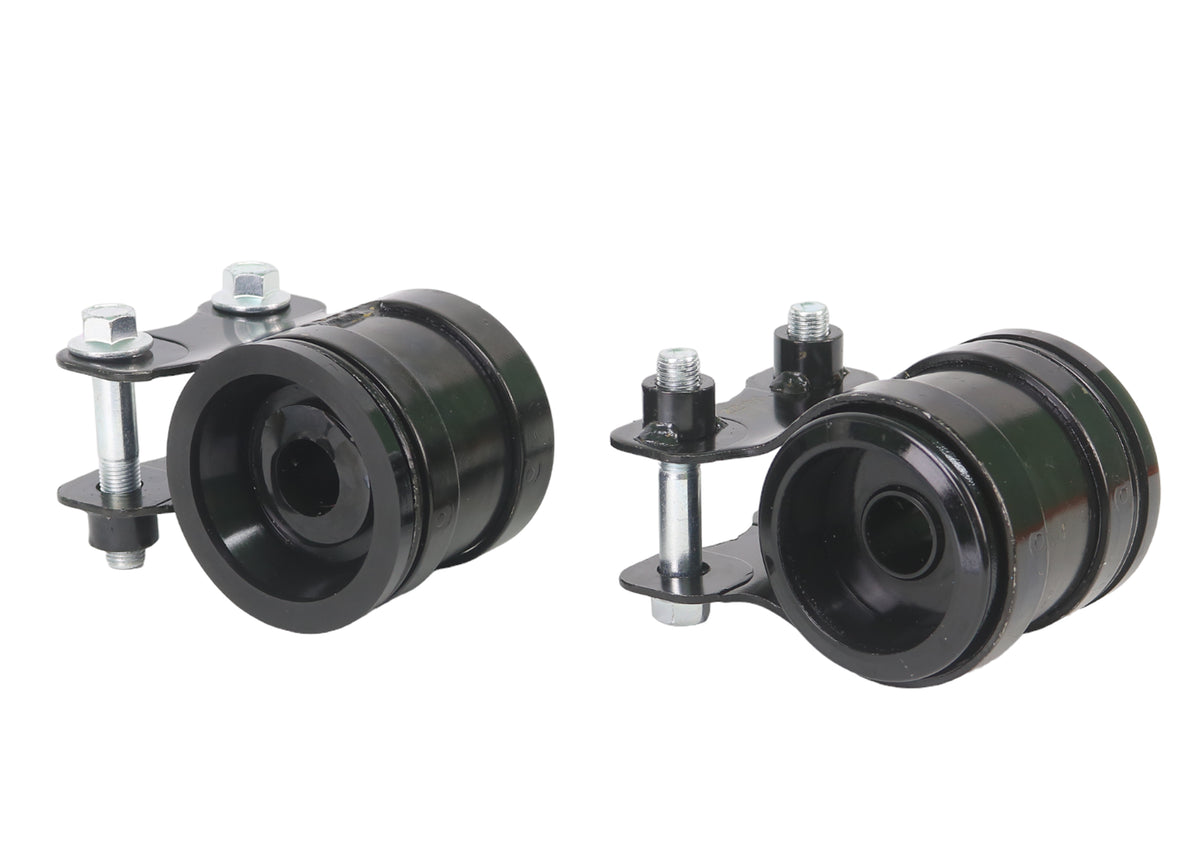

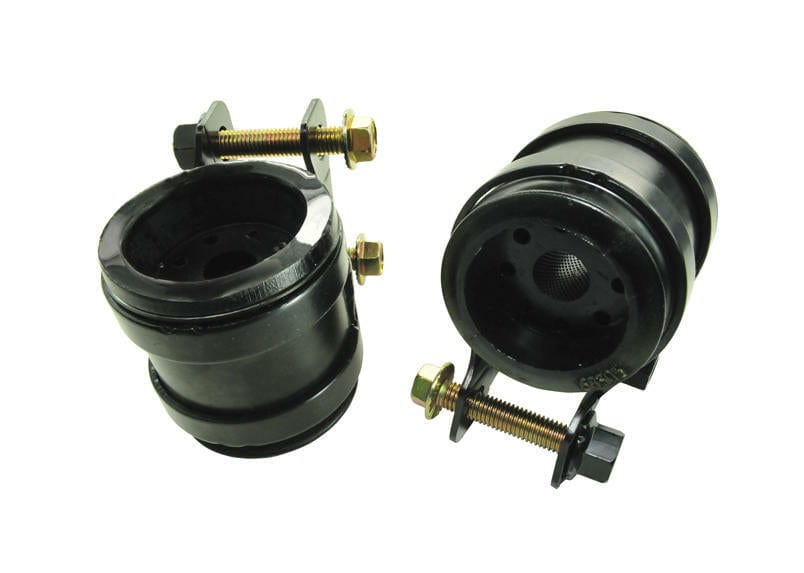

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2007-2009 Mazda 3 Mazdaspeed Base (BK). In the box: 2 housings and 4 bolts. It goes on the front of the vehicle. Application note: Standard Replacement: includes new housing. Part number W53528.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect an easy job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Mazda 3.

Features

  • Material: Built from polyurethane.
  • Hardware: Supplied with mounting hardware.
  • Finish: The parts carry an E-coat layer that resists corrosion and wear.
  • Easy to fit: Installation does not call for special skills or tools.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
Part Number W53528
Part Name Control Arm Bushing
Vehicle 2007-2009 Mazda 3 Mazdaspeed Base
Chassis Code BK
Bushing 1 Inner Diameter 26 mm
Bushing 1 Length 80.5 mm
Bushing 1 Outer Diameter 68 mm
Bushing 2 Inner Diameter 26 mm
Bushing 2 Length 80.5 mm
Bushing 2 Outer Diameter 68 mm
Bushing Quantity 2
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 2
Kit Contents 2 Housings, 4 Bolts
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 68 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement - includes new housing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MazdaMazda 3FWDStandard Replacement - includes new housing
2008MazdaMazda 3FWDStandard Replacement - includes new housing
2009MazdaMazda 3FWDStandard Replacement - includes new housing
