Product Details

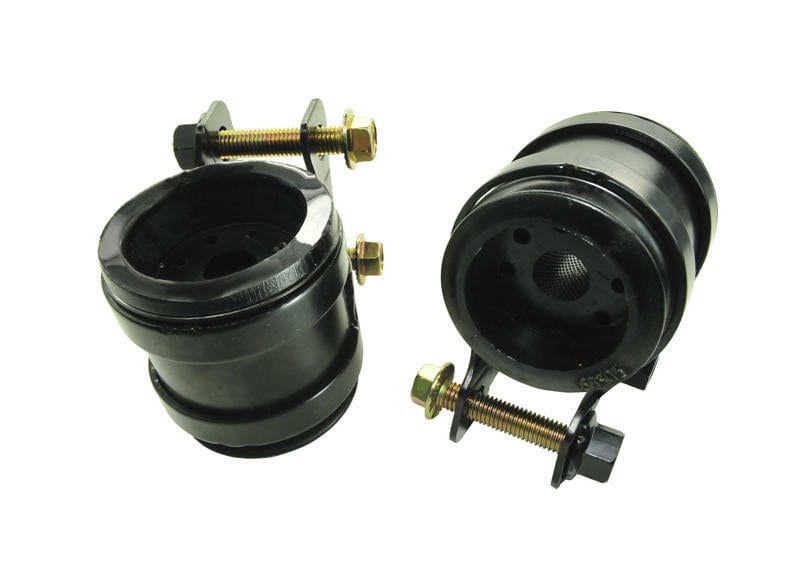

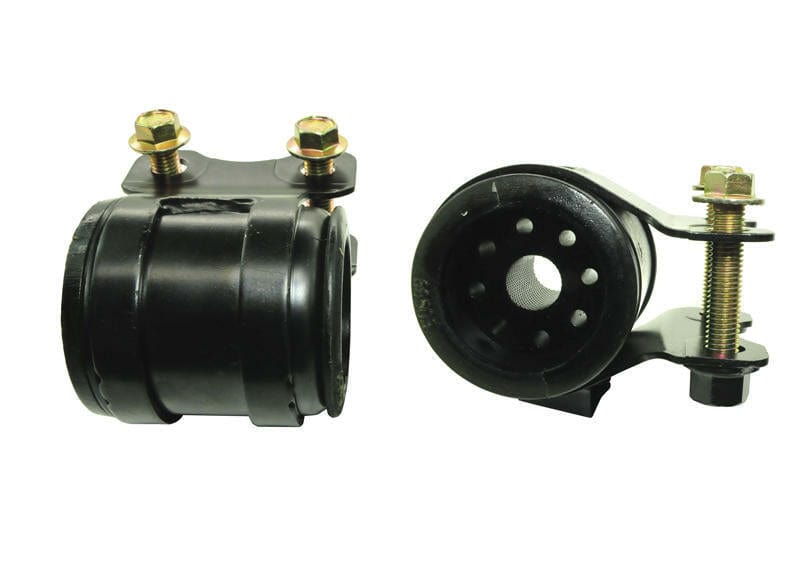

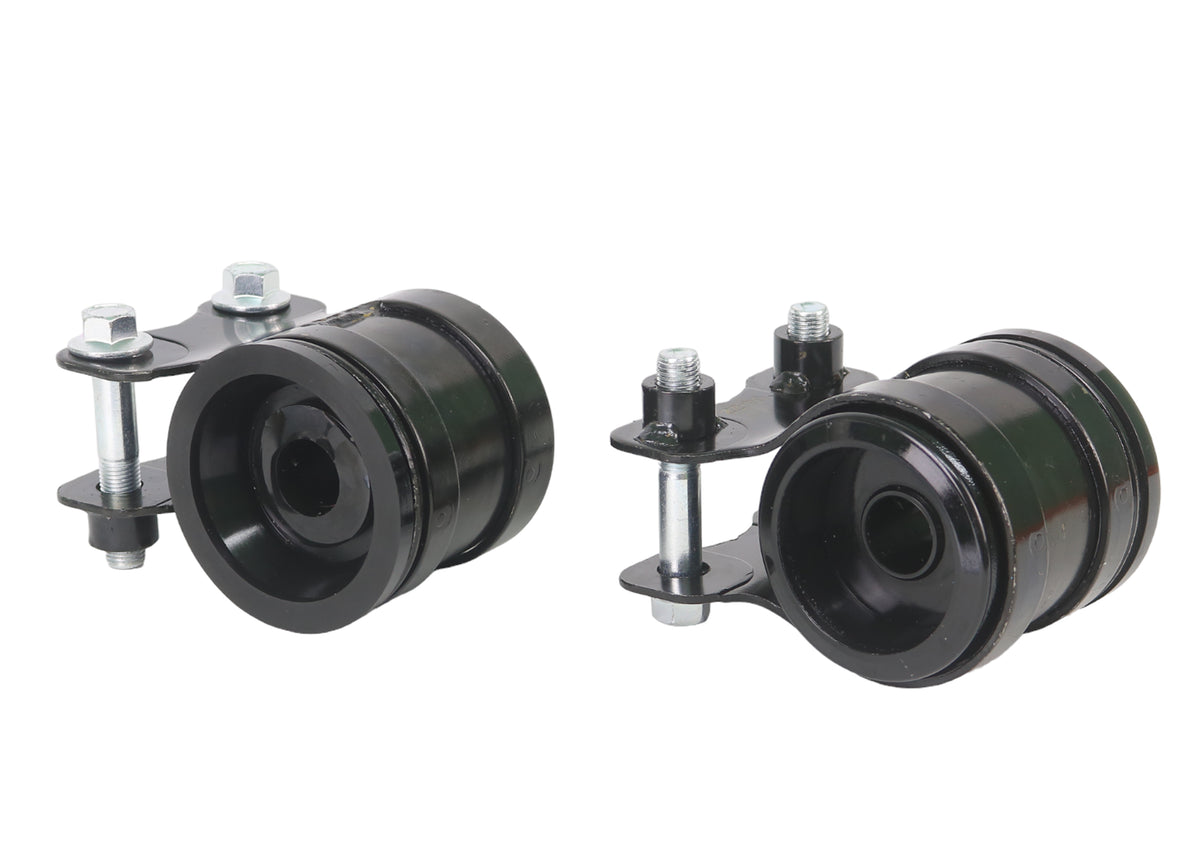

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2007-2009 Mazda 3 i, S (BK). Order it as part number W53528. The kit contains 2 housings and 4 bolts. Placement: front. Whiteline's note for this fit: Standard Replacement: includes new housing.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Expect an easy job of about 2 hours. Get the car aligned once it is back on the ground. To go with it on the Mazda 3, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Material: The part is made of polyurethane.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: The parts carry an E-coat layer that resists corrosion and wear.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
  • Hardware: Hardware supplied: mounting hardware.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
Specifications
Part Number W53528
Part Name Control Arm Bushing
Vehicle 2007-2009 Mazda 3 i, S
Chassis Code BK
Bushing 1 Inner Diameter 26 mm
Bushing 1 Length 80.5 mm
Bushing 1 Outer Diameter 68 mm
Bushing 2 Inner Diameter 26 mm
Bushing 2 Length 80.5 mm
Bushing 2 Outer Diameter 68 mm
Bushing Quantity 2
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 2
Kit Contents 2 Housings, 4 Bolts
Material Polyurethane
Mounting Hardware Included Yes
Outside Diameter 68 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement - includes new housing

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MazdaMazda 3FWDStandard Replacement - includes new housing
2008MazdaMazda 3FWDStandard Replacement - includes new housing
2009MazdaMazda 3FWDStandard Replacement - includes new housing
