Product Details

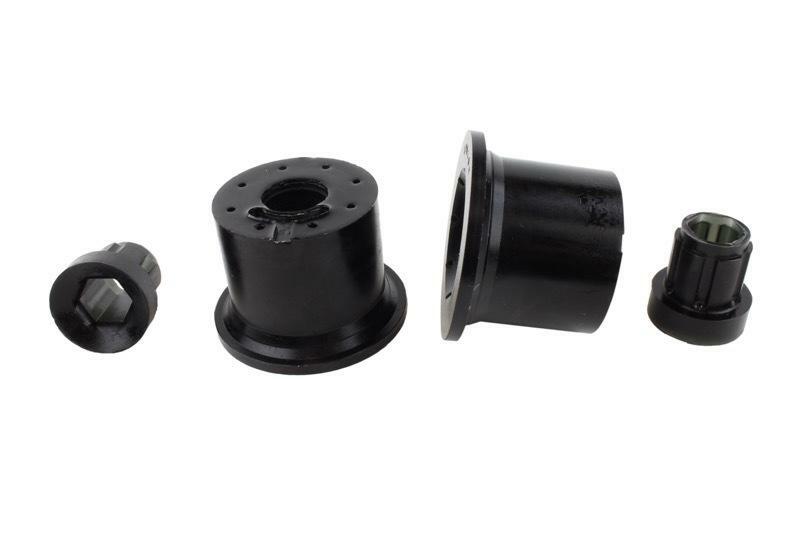

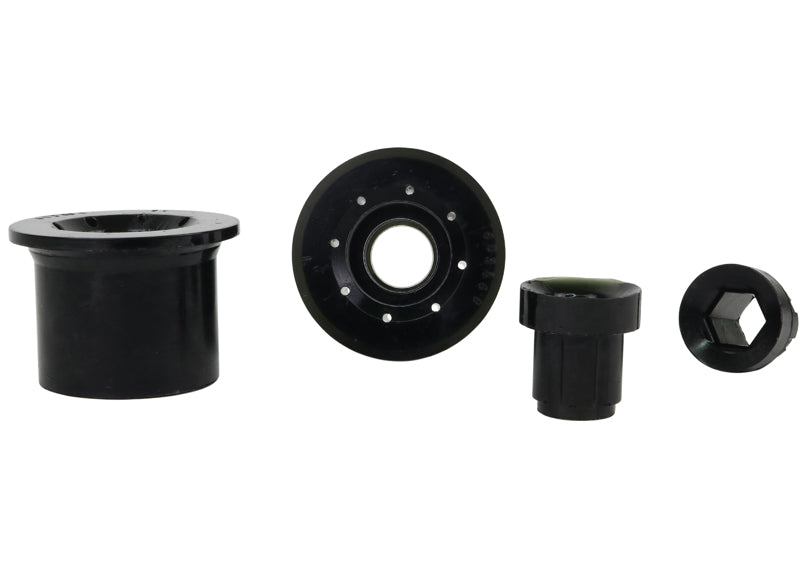

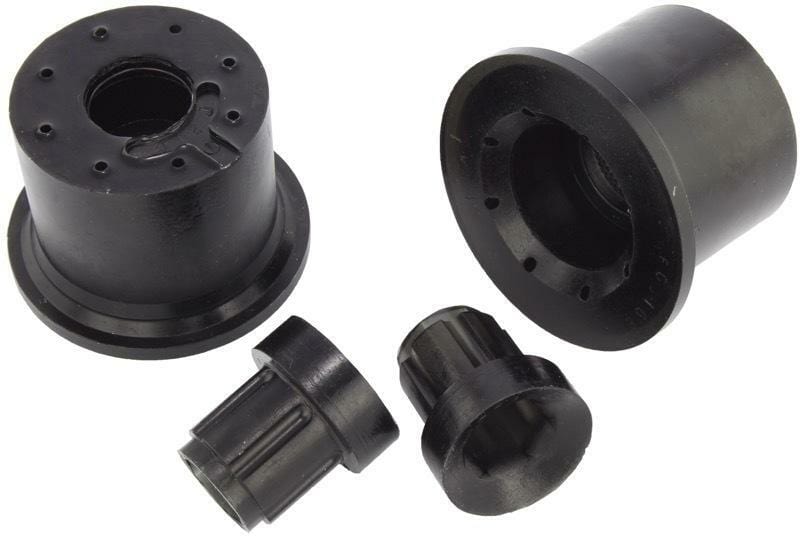

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2006-2007 Volkswagen Jetta 2.0T, 2.5 (1K). Application note: Standard Replacement. It goes on the front of the vehicle. Included: 2 bushings. Whiteline part number: W53196.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the Jetta.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Material: Made from polyurethane.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Install guide: Step-by-step installation instructions come with it.
Specifications
| Part Number | W53196 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006-2007 Volkswagen Jetta 2.0T, 2.5 |
| Chassis Code | 1K |
| Bushing 1 Inner Diameter | 38.5 mm |
| Bushing 1 Outer Diameter | 62.2 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
