Product Details

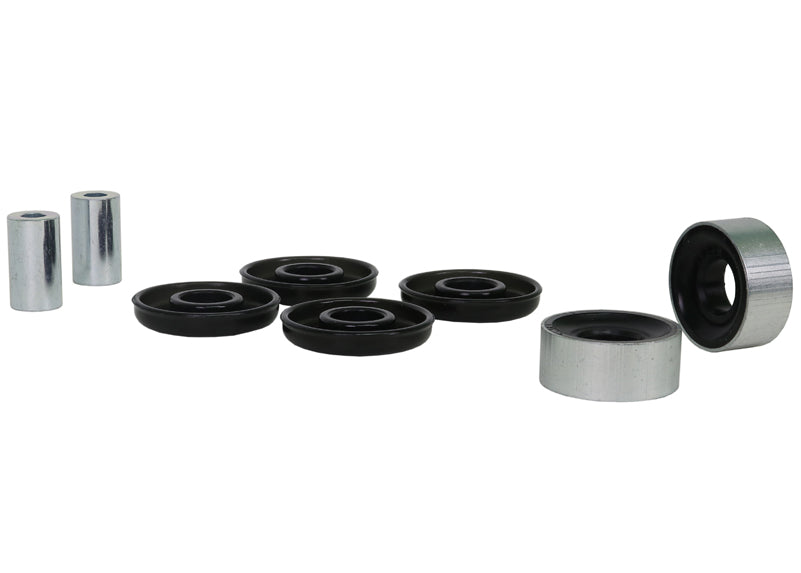

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2004 Chevrolet Aveo Base (T200). Position: front. Order it as part number W52401. Application note: Standard Replacement. You receive 2 shell bushings, 4 bushings, and 2 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Aveo, see 12mm Adjustable Front Camber Bolts, Rear Sway Bar Link, and Front Sway Bar Link.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Material: Polyurethane construction.
- Install guide: An install guide comes in the box.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
| Part Number | W52401 |
| Part Name | Control Arm Bushing |
| Vehicle | 2004 Chevrolet Aveo Base |
| Chassis Code | T200 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Shell Bushings, 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Standard Replacement |
