Product Details

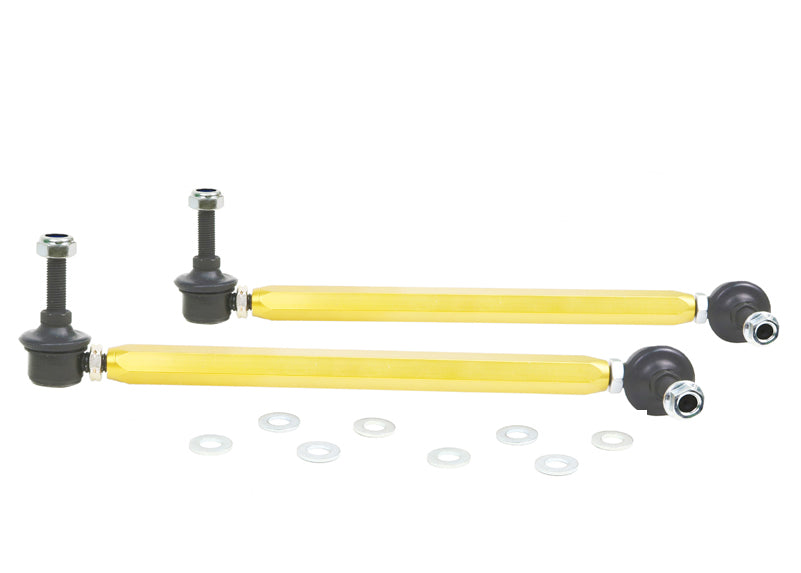

This Whiteline Front Sway Bar Link fits the 2004-2011 Chevrolet Aveo. This part is for the front of the vehicle. Part number KLC140-295. The chassis code on the listing is T200/T250. Included: 2 links. Application note: Adjustable Extra Heavy Duty.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. Working on the same car? We also list 12mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Rear Sway Bar Link for the Aveo.
Features
- Preload-free setup: Setting the length on the car lets the bar rest without preload.
- Install guide: Written install instructions are included with the part.
- Construction: The body is made from high-grade alloy for strength without added weight.
- Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
| Part Number | KLC140-295 |
| Part Name | Sway Bar Link |
| Vehicle | 2004-2011 Chevrolet Aveo |
| Chassis Code | T200/T250 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 290-315 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 290-315mm. Bolt Diameter 10mm. |
