Product Details

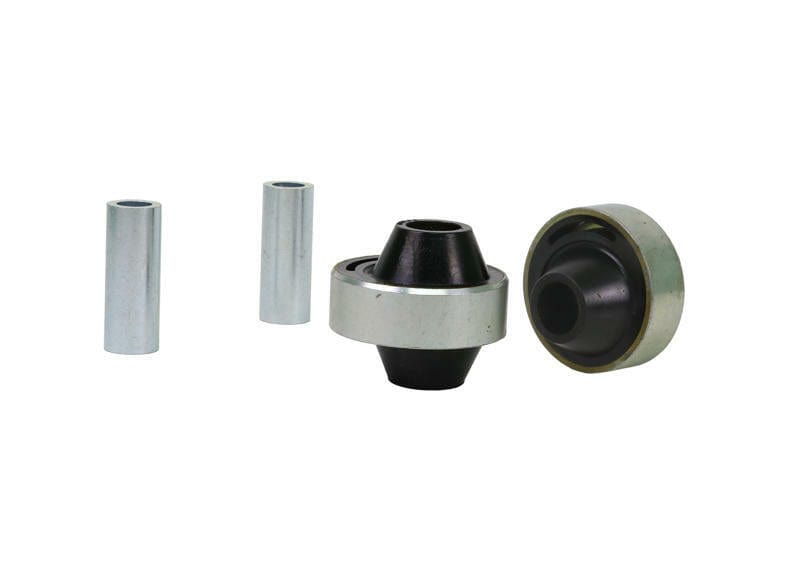

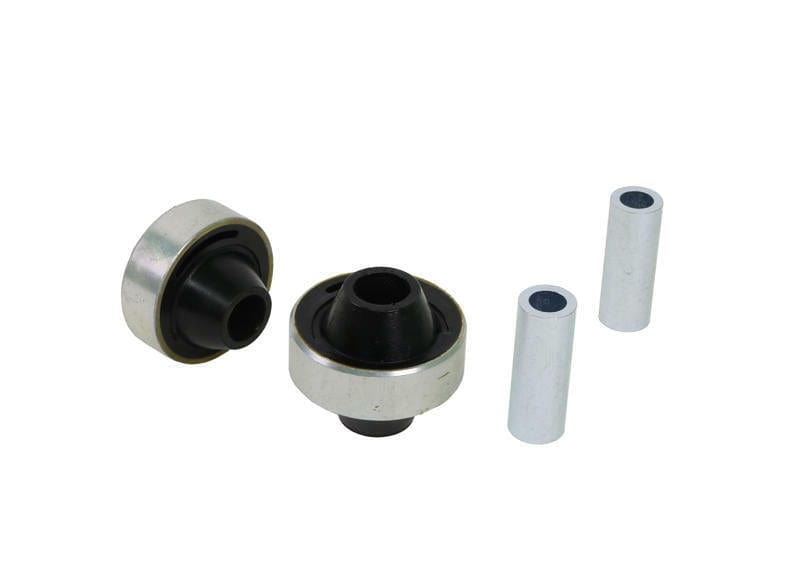

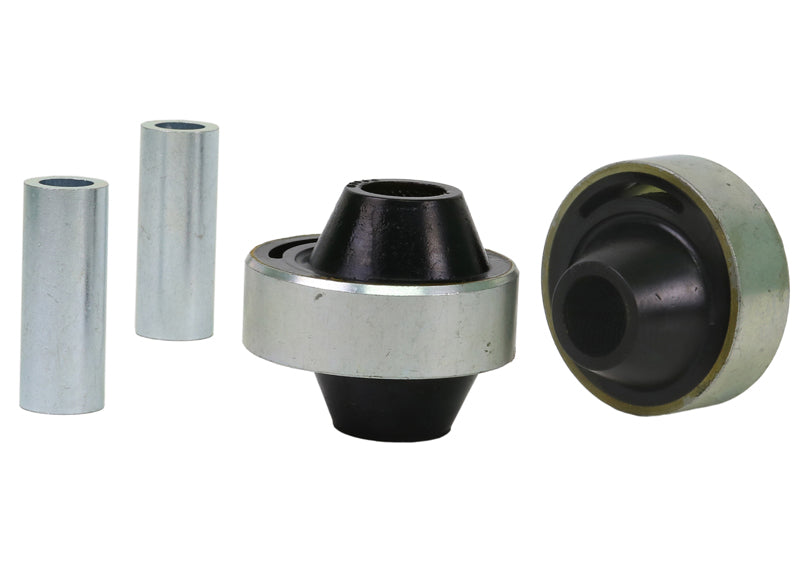

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2001-2011 Toyota Prius Base (NHW20/ZVW30). This part is for the front of the vehicle. Whiteline's note for this fit: Adds .5 degrees Caster. In the box: 2 bushings and 2 tubes. Part number W53276.

Caster is the forward or backward lean of the steering axis, and more positive caster generally helps stability and steering return. This control arm bushing is made to add positive caster and alter anti-dive geometry, using a bushing swap rather than a major rebuild.

Expect a difficult job of about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Prius, see Adjustable Front Sway Bar Link, 17mm Adjustable Front Camber Bolts, and Heavy Duty 22mm Rear Sway Bar.

Features

  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Caster: Adds caster to improve turn-in and directional stability.
  • Bonded design: Bonding adds durability in high-load use.
  • Material: The part is made of polyurethane.
  • Install guide: Written install instructions are included with the part.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
Specifications
Part Number W53276
Part Name Control Arm Bushing
Vehicle 2001-2011 Toyota Prius Base
Chassis Code NHW20/ZVW30
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 68 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds .5 Deg Caster

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001ToyotaPriusFWDAdds .5 Deg Caster
2002ToyotaPriusFWDAdds .5 Deg Caster
2003ToyotaPriusFWDAdds .5 Deg Caster
2004ToyotaPriusFWDAdds .5 Deg Caster
2005ToyotaPriusFWDAdds .5 Deg Caster
2006ToyotaPriusFWDAdds .5 Deg Caster
2007ToyotaPriusFWDAdds .5 Deg Caster
2008ToyotaPriusFWDAdds .5 Deg Caster
2009ToyotaPriusFWDAdds .5 Deg Caster
2010ToyotaPriusFWDAdds .5 Deg Caster
2011ToyotaPriusFWDAdds .5 Deg Caster
