Product Details

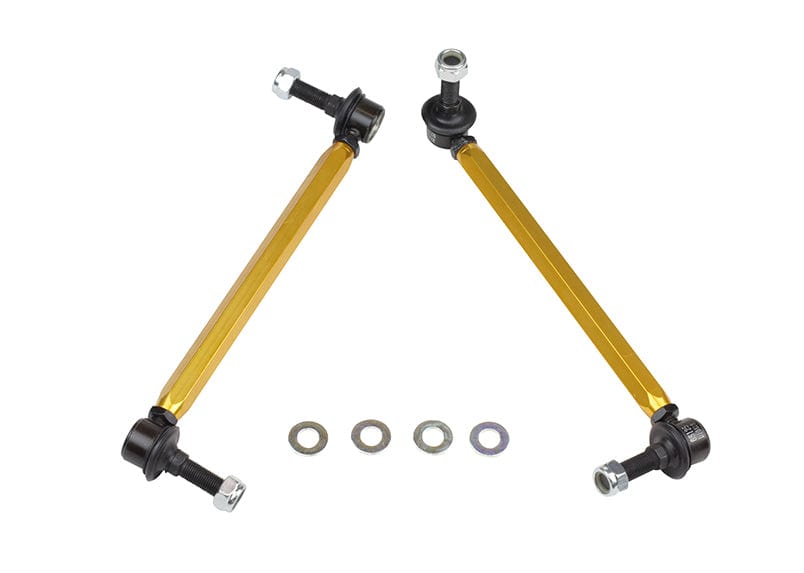

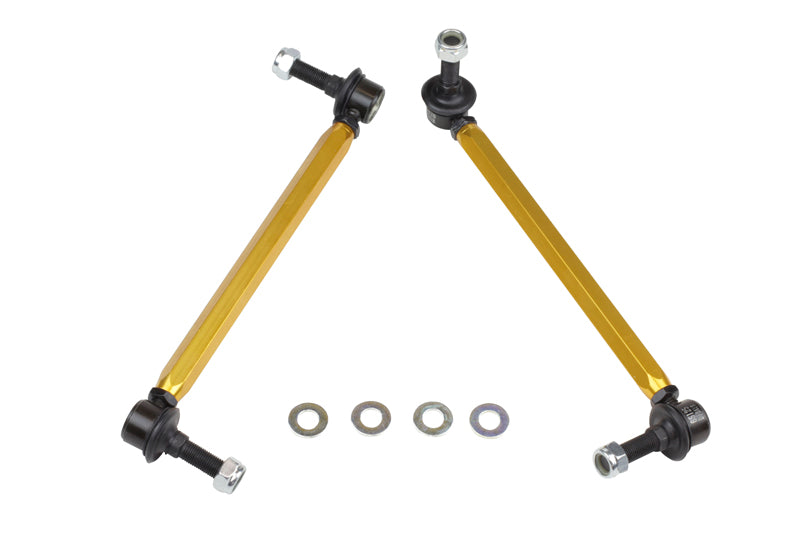

This Whiteline Adjustable Front Sway Bar Link Adjustable fits the 2001-2009 Toyota Prius Base (NHW11/NHW20). The part number is KLC169. It goes on the front of the vehicle. In the box: 2 links. Application note: Adjustable Extra Heavy Duty.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. We also list Front Control Arm Lower Inner Front Bushing, 15mm Adjustable Front Camber Bolts, and Heavy Duty 22mm Rear Sway Bar for the Prius.

Features

  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Hardware: The kit includes locking nuts and washers.
  • Install guide: An install guide comes in the box.
Specifications
Part Number KLC169
Part Name Sway Bar Link
Vehicle 2001-2009 Toyota Prius Base
Chassis Code NHW11/NHW20
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2002ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2003ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2004ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2005ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2006ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2007ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2008ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2009ToyotaPriusFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
