Product Details

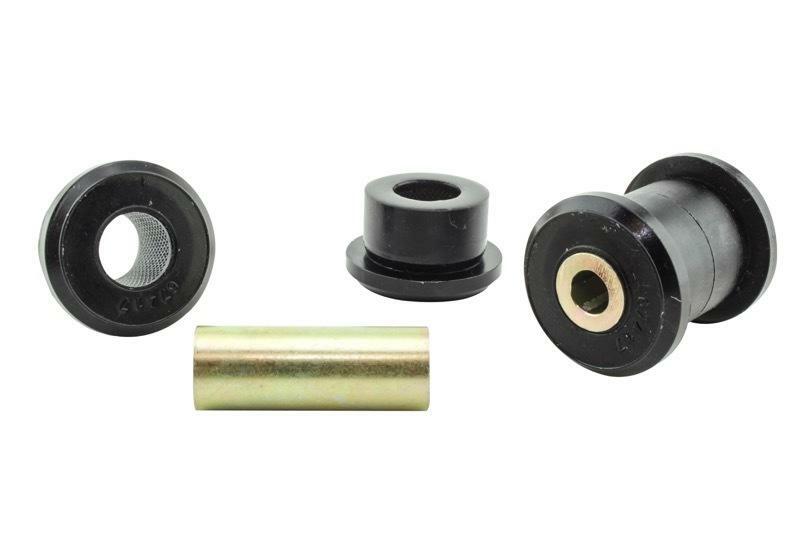

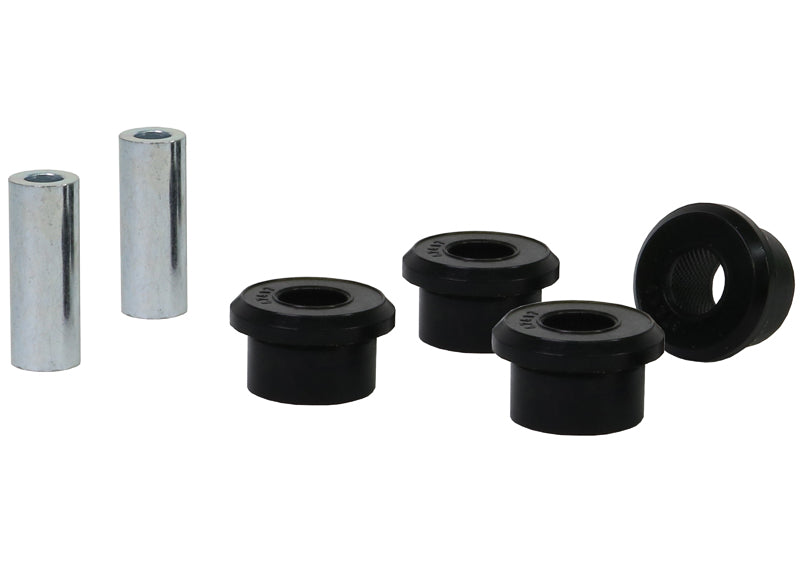

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2011-2015 Chevrolet Cruze Eco, LS, LT, LTZ (Delta II). The kit contains 4 bushings and 2 tubes. This part is for the front of the vehicle. Order it as part number W53431.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as difficult and lists about 2.5 hours. Plan on a wheel alignment afterward. To go with it on the Cruze, see Adjustable Front Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Finish: A powder coated finish resists corrosion and wear.
- Material: Made from polyurethane.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | W53431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2011-2015 Chevrolet Cruze Eco, LS, LT, LTZ |
| Chassis Code | Delta II |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 40 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
