Product Details

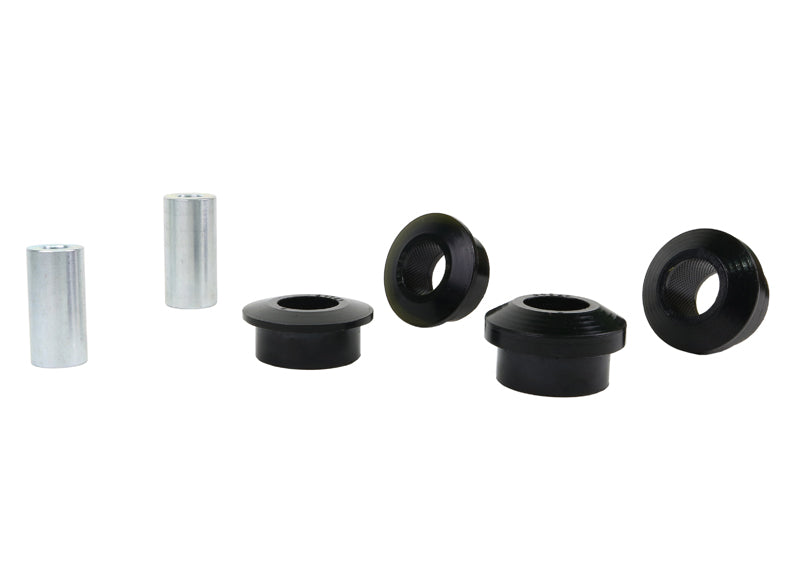

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2011-2012 Mazda MX-5 Miata Special Edition (NC). It goes on the front of the vehicle. You receive 4 bushings and 2 tubes. Whiteline part number: W53413. Chassis code: NC.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a difficult job of about 2.5 hours. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Adjustable Front Sway Bar Link for the MX-5 Miata.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Material: Built from polyurethane.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
| Part Number | W53413 |
| Part Name | Control Arm Bushing |
| Vehicle | 2011-2012 Mazda MX-5 Miata Special Edition |
| Drivetrain | RWD |
| Chassis Code | NC |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 47.7 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
