Product Details

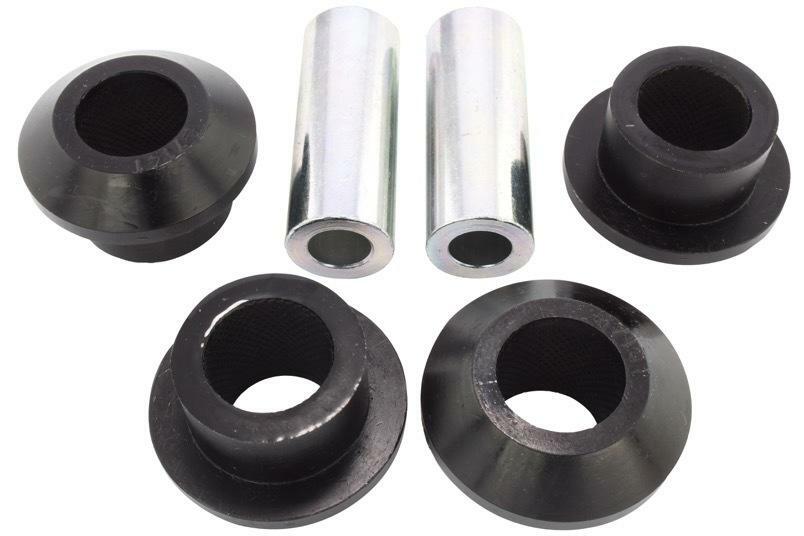

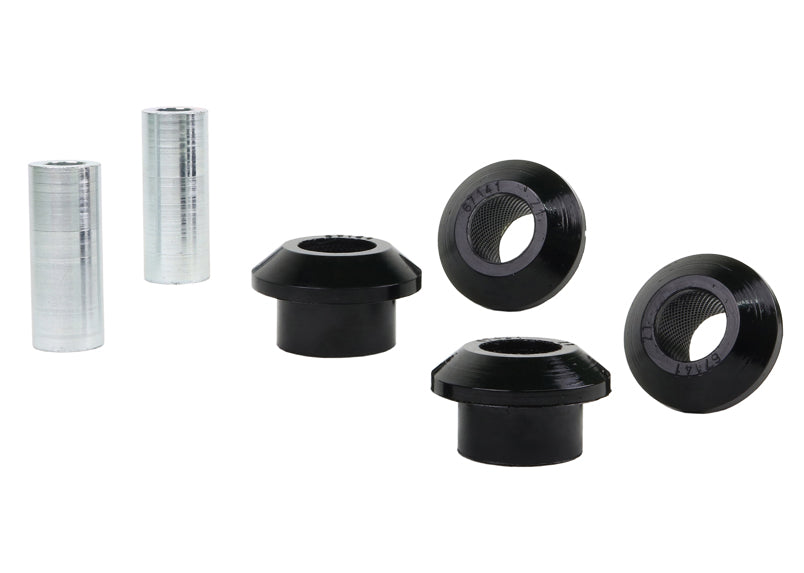

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2007-2013 Mazda 3 Mazdaspeed Base (BK/BL). You receive 4 bushings and 2 tubes. Order it as part number W53286. Placement: front.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Mazda 3, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Material: Polyurethane construction.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2007-2013 Mazda 3 Mazdaspeed Base
Chassis Code BK/BL
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MazdaMazda 3FWD
2008MazdaMazda 3FWD
2009MazdaMazda 3FWD
2010MazdaMazda 3FWD
2011MazdaMazda 3FWD
2012MazdaMazda 3FWD
2013MazdaMazda 3FWD
