Product Details

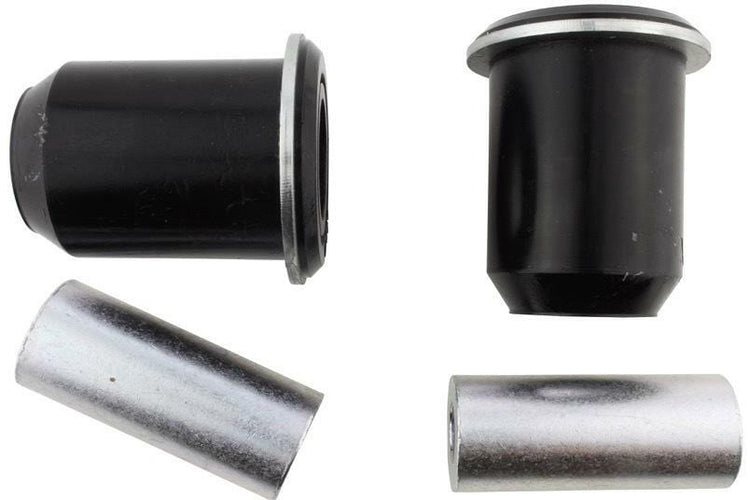

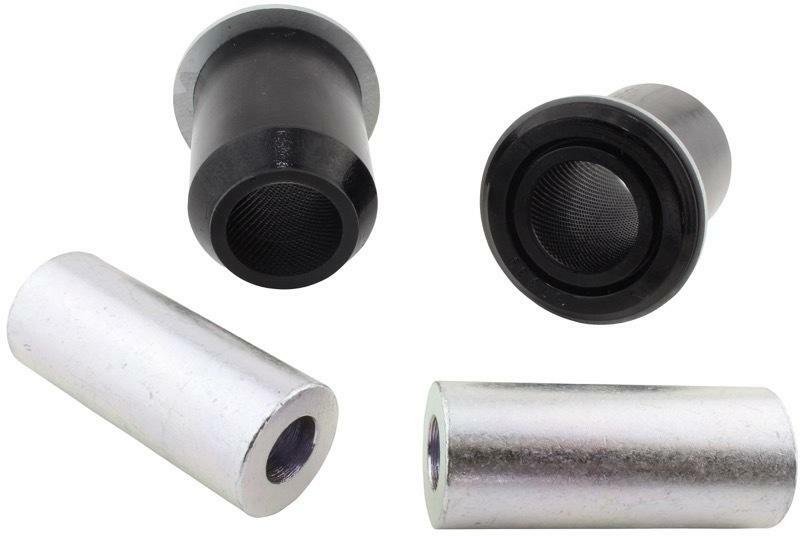

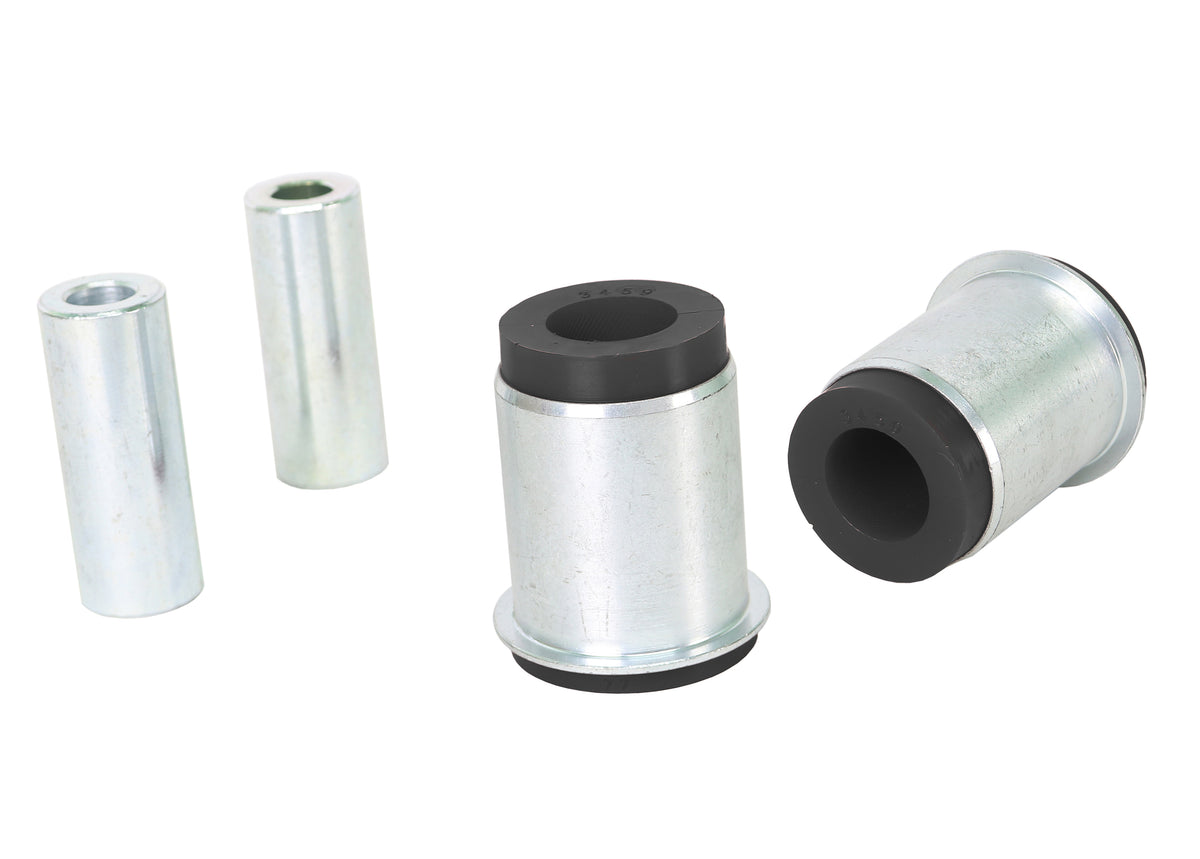

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2006 Land Rover LR3 Base (L319). In the box: 2 bushings and 2 tubes. Chassis code: L319. It goes on the front of the vehicle. The part number is W53479.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as difficult and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Land Rover LR3, see Rear Sway Bar Link and Rear Control Arm Lower Front Bushing.
Features
- Material: Built from polyurethane.
- Install guide: Instructions for fitting are packed in the box.
- Finish: Powder coating covers the metal for protection against chips and rust.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
| Part Number | W53479 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006 Land Rover LR3 Base |
| Chassis Code | L319 |
| Bushing 1 Inner Diameter | 16 mm |
| Bushing 1 Outer Diameter | 53.3 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
