Product Details

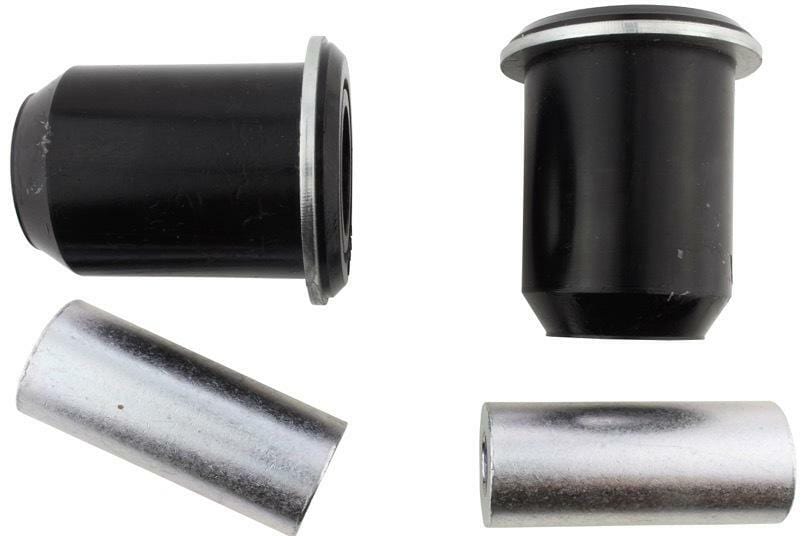

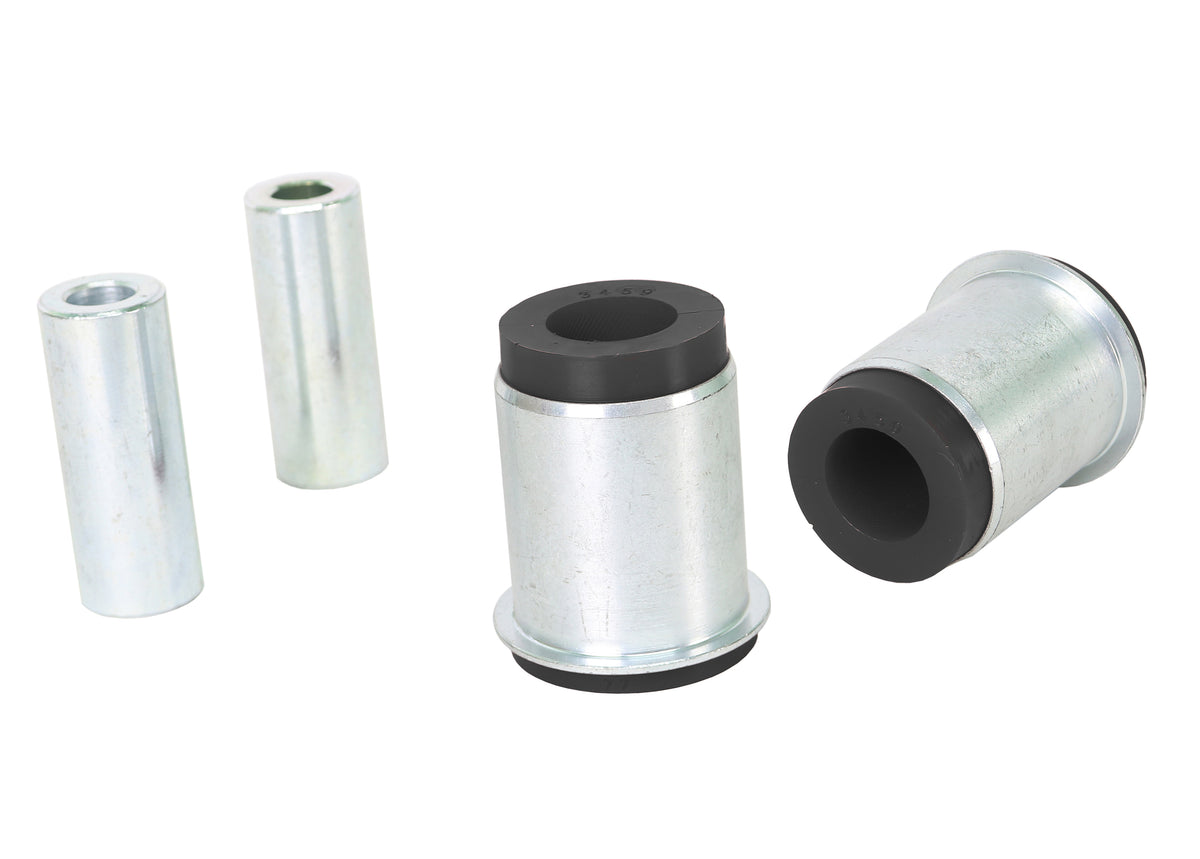

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2005-2009 Land Rover LR3 HSE (L319). Included: 2 bushings and 2 tubes. Part number W53479. This part is for the front of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a difficult job of about 3 hours. Plan on a wheel alignment afterward. To go with it on the Land Rover LR3, see Rear Sway Bar Link and Rear Control Arm Lower Front Bushing.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Material: Polyurethane construction.
- Install guide: Step-by-step installation instructions come with it.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | W53479 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2009 Land Rover LR3 HSE |
| Chassis Code | L319 |
| Drivetrain | 4WD |
| Bushing 1 Inner Diameter | 16 mm |
| Bushing 1 Outer Diameter | 53.3 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
