Product Details

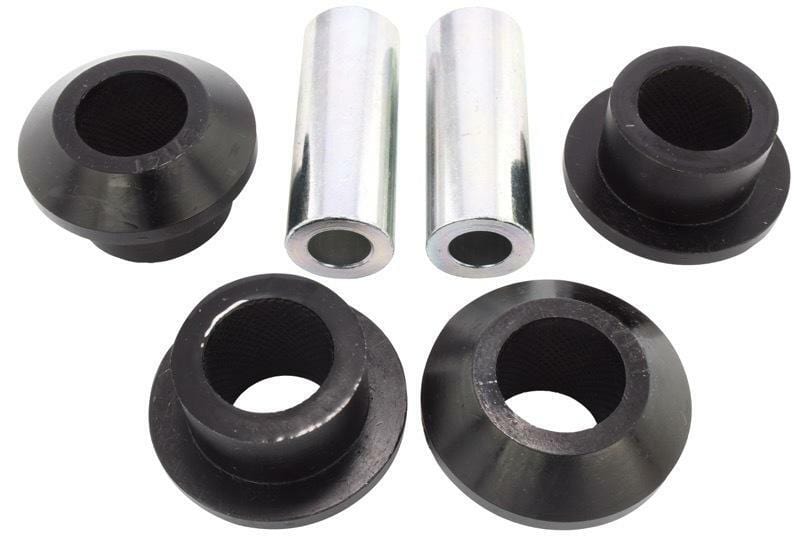

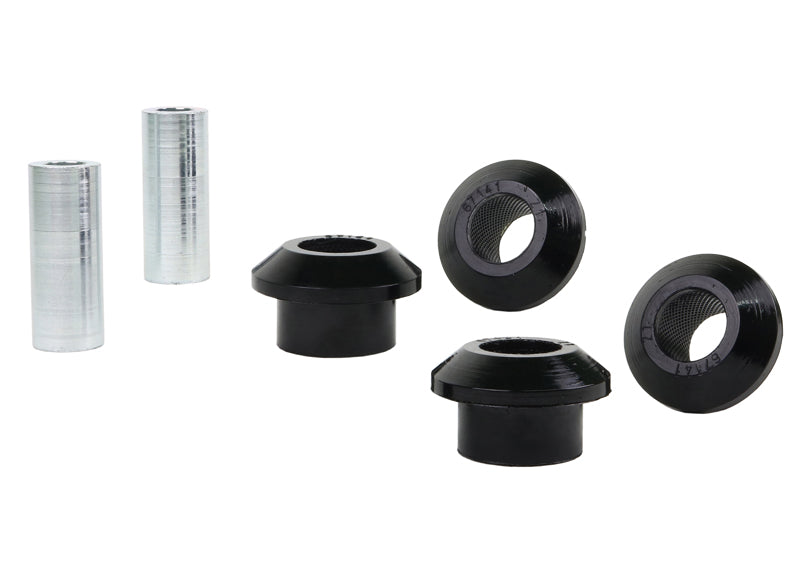

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2004-2012 Volvo S40 Base (P1). It goes on the front of the vehicle. Order it as part number W53286. In the box: 4 bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link for the Volvo S40.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: The part is made of polyurethane.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2004-2012 Volvo S40 Base
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004VolvoS40FWD
2004VolvoS40AWD
2005VolvoS40FWD
2005VolvoS40AWD
2006VolvoS40FWD
2006VolvoS40AWD
2007VolvoS40FWD
2007VolvoS40AWD
2008VolvoS40FWD
2008VolvoS40AWD
2009VolvoS40FWD
2009VolvoS40AWD
2010VolvoS40FWD
2010VolvoS40AWD
2011VolvoS40FWD
2011VolvoS40AWD
2012VolvoS40FWD
2012VolvoS40AWD
