Product Details

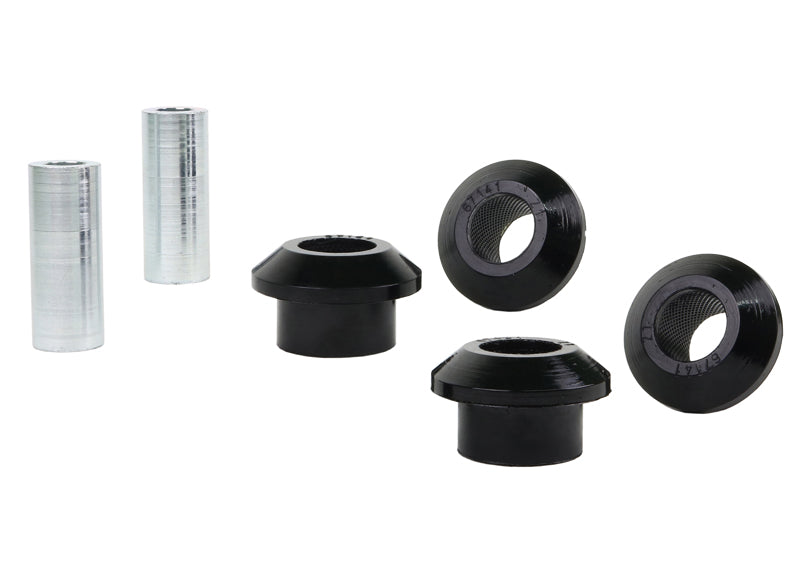

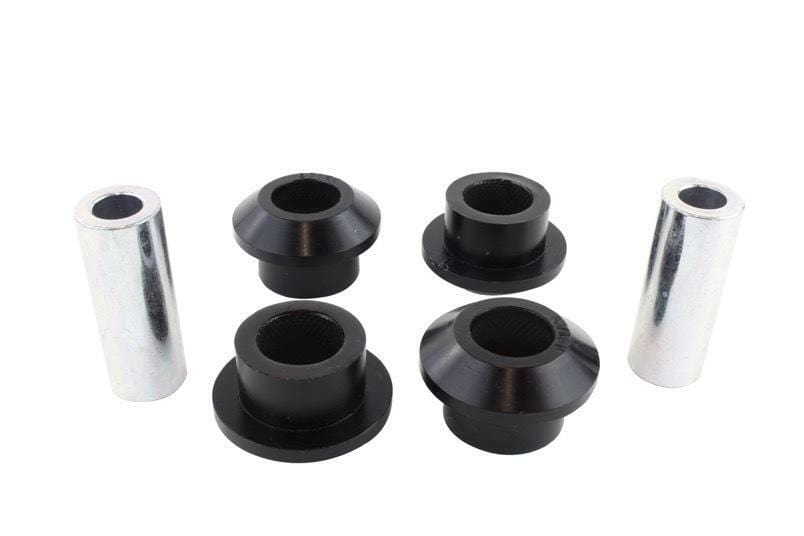

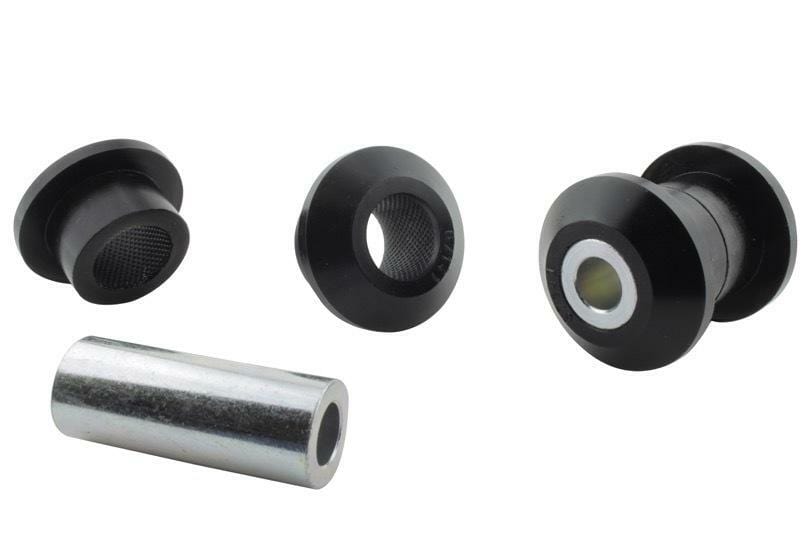

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2004-2013 Mazda 3 S (BK/BL). This part is for the front of the vehicle. Included: 4 bushings and 2 tubes. Whiteline part number: W53286.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. To go with it on the Mazda 3, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Material: Polyurethane construction.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2004-2013 Mazda 3 S
Chassis Code BK/BL
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaMazda 3FWD
2005MazdaMazda 3FWD
2006MazdaMazda 3FWD
2007MazdaMazda 3FWD
2008MazdaMazda 3FWD
2009MazdaMazda 3FWD
2010MazdaMazda 3FWD
2011MazdaMazda 3FWD
2012MazdaMazda 3FWD
2013MazdaMazda 3FWD
