Product Details

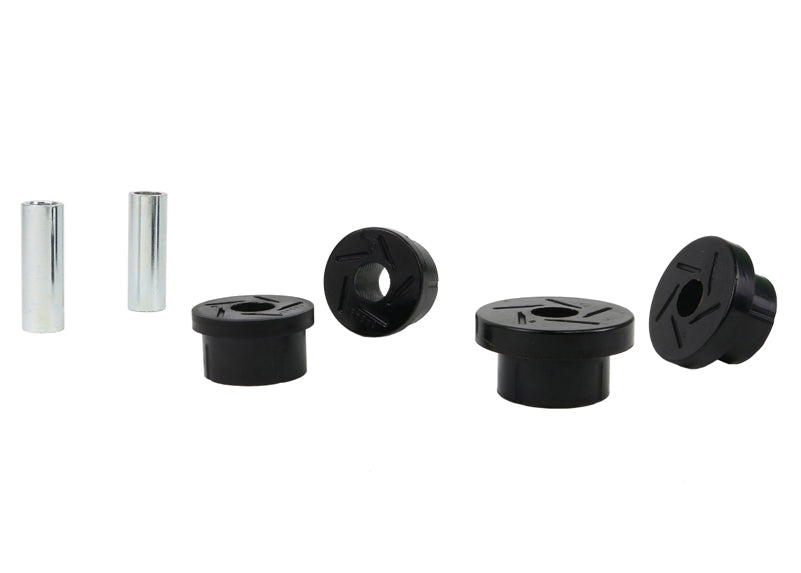

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 1992-1996 Lexus SC400 (Z30). It goes on the front of the vehicle. In the box: 4 bushings and 2 tubes. Application note: Suits models to: 6/1996. Part number W51231A.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. An alignment is required after installation. We also list Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing for the SC400.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Material: Polyurethane construction.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number W51231A
Part Name Control Arm Bushing
Vehicle 1992-1996 Lexus SC400
Chassis Code Z30
Bushing 1 Inner Diameter 16.2 mm
Bushing 1 Outer Diameter 49.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Suits models to - 6/1996 - 49.5mm OD

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1992LexusSC400RWDSuits models to - 6/1996 - 49.5mm OD
1993LexusSC400RWDSuits models to - 6/1996 - 49.5mm OD
1994LexusSC400RWDSuits models to - 6/1996 - 49.5mm OD
1995LexusSC400RWDSuits models to - 6/1996 - 49.5mm OD
1996LexusSC400RWDSuits models to - 6/1996 - 49.5mm OD
