Product Details

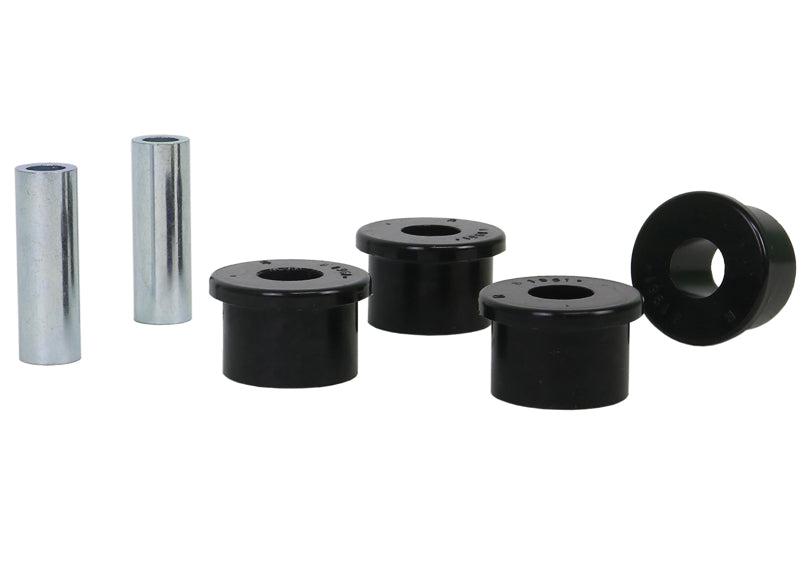

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 1988-1991 Mazda RX-7 Convertible (FC). Position: front. The part number is W51961. In the box: 4 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. We also list 12mm Adjustable Front Camber Bolts, Tie Rod Boot Kit, and Rear Upper Outer Control Arm Bushing Kit for the RX-7.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Material: Built from polyurethane.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
Specifications
Part Number W51961
Part Name Control Arm Bushing
Vehicle 1988-1991 Mazda RX-7 Convertible
Chassis Code FC
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.1 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1988MazdaRX-7RWD
1989MazdaRX-7RWD
1990MazdaRX-7RWD
1991MazdaRX-7RWD
