Product Details

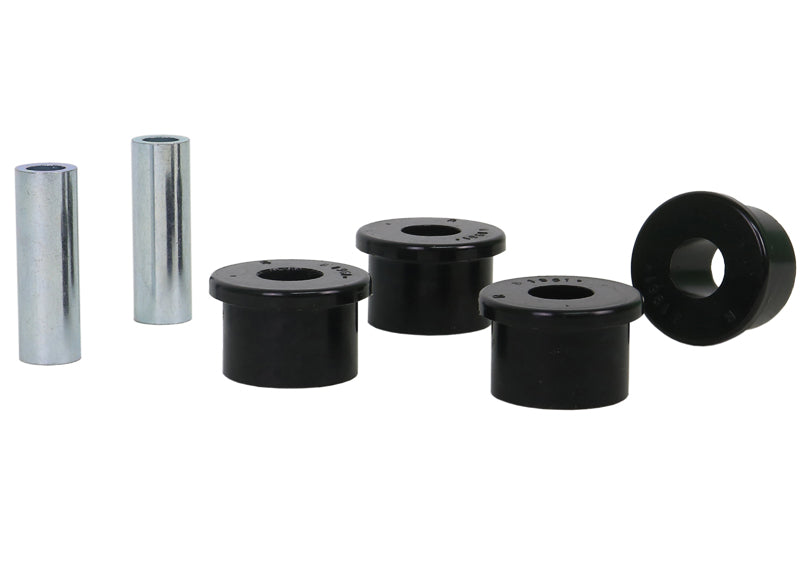

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 1987 Mazda RX-7 2+2, LX, LX 2+2, Sport (FC). Whiteline part number: W51961. This part is for the front of the vehicle. In the box: 4 bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the RX-7: 12mm Adjustable Front Camber Bolts, Tie Rod Boot Kit, and Rear Upper Outer Control Arm Bushing Kit.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: The part is made of polyurethane.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Easy to fit: Designed for an easy install with ordinary shop equipment.
Specifications
Part Number W51961
Part Name Control Arm Bushing
Vehicle 1987 Mazda RX-7 2+2, LX, LX 2+2, Sport
Chassis Code FC
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.1 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1987MazdaRX-7RWD
