Product Details

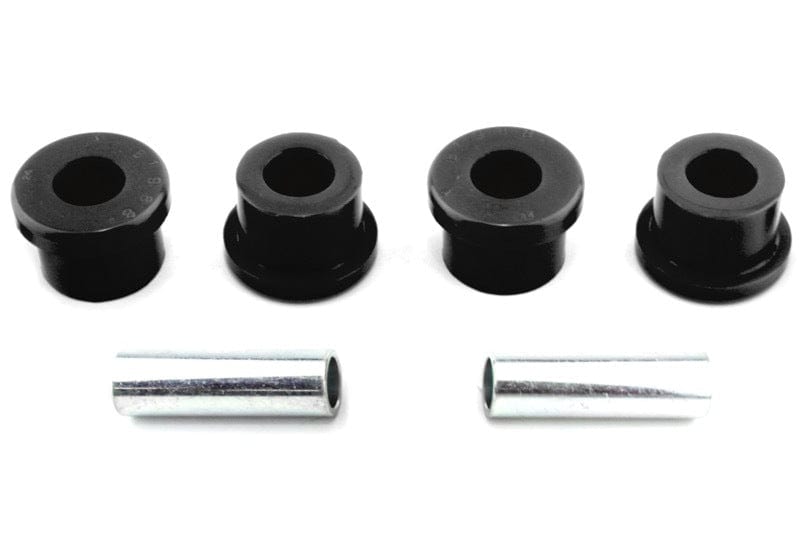

This Whiteline Front Control Arm Lower Inner Front Bushing (14mm ID) fits the 2012 Dodge Caliber SXT Plus (PM). This part is for the front of the vehicle. In the box: 4 bushings and 2 tubes. Whiteline part number: W0593.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. Plan on a wheel alignment afterward. To go with it on the Caliber, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Front Sway Bar Link.

Features

  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Material: Made from polyurethane.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
Part Number W0593
Part Name Control Arm Bushing
Vehicle 2012 Dodge Caliber SXT Plus
Drivetrain FWD
Chassis Code PM
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 34.7 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012DodgeCaliberFWD
