Product Details

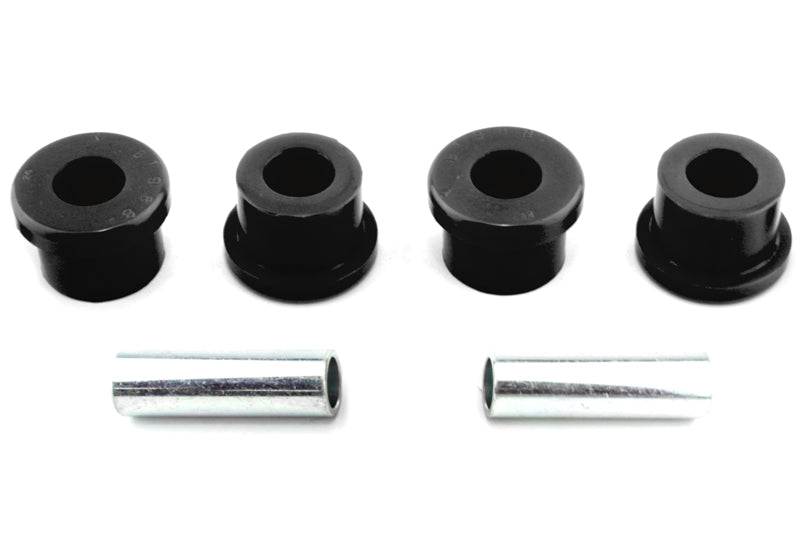

This Whiteline Front Control Arm Lower Inner Front Bushing (14mm ID) fits the 2005-2011 Mitsubishi Outlander XLS (CU). Part number W0593. Included: 4 bushings and 2 tubes. This part is for the front of the vehicle. Chassis code: CU.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. To go with it on the Outlander, see 14mm Adjustable Front Camber Bolts, Adjustable Front Sway Bar Link, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Material: Built from polyurethane.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W0593
Part Name Control Arm Bushing
Vehicle 2005-2011 Mitsubishi Outlander XLS
Drivetrain FWD/AWD
Chassis Code CU
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 34.7 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005MitsubishiOutlanderFWD
2005MitsubishiOutlanderAWD
2006MitsubishiOutlanderFWD
2006MitsubishiOutlanderAWD
2007MitsubishiOutlanderFWD
2007MitsubishiOutlanderAWD
2008MitsubishiOutlanderFWD
2008MitsubishiOutlanderAWD
2009MitsubishiOutlanderFWD
2009MitsubishiOutlanderAWD
2010MitsubishiOutlanderFWD
2010MitsubishiOutlanderAWD
2011MitsubishiOutlanderFWD
2011MitsubishiOutlanderAWD
