Product Details

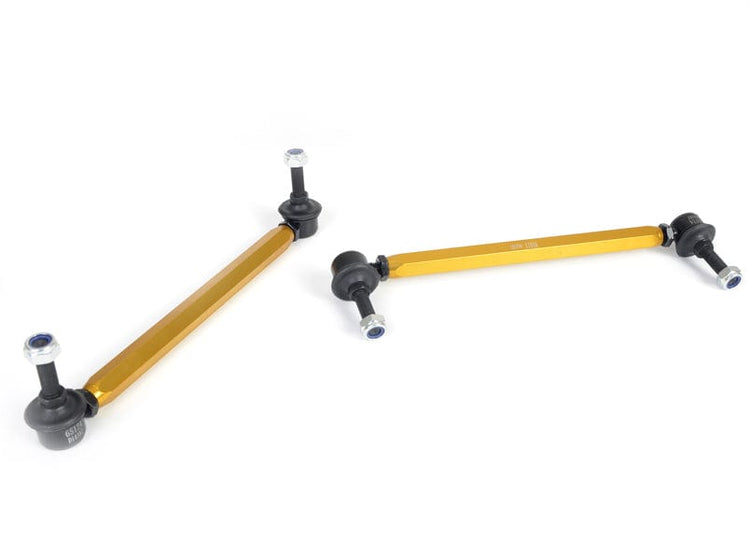

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2008 Mitsubishi Outlander LS (CU). In the box: 2 links. The part number is KLC163. This part is for the front of the vehicle.

The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the Outlander, see 14mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.

Features

  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Install guide: Whiteline packs an install guide with it.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Hardware: Supplied with locking nuts and washers.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2007-2008 Mitsubishi Outlander LS
Drivetrain FWD/AWD
Chassis Code CU
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2007MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderFWDLength 270-295mm. Bolt Diameter 10mm.
2008MitsubishiOutlanderAWDLength 270-295mm. Bolt Diameter 10mm.
