Product Details

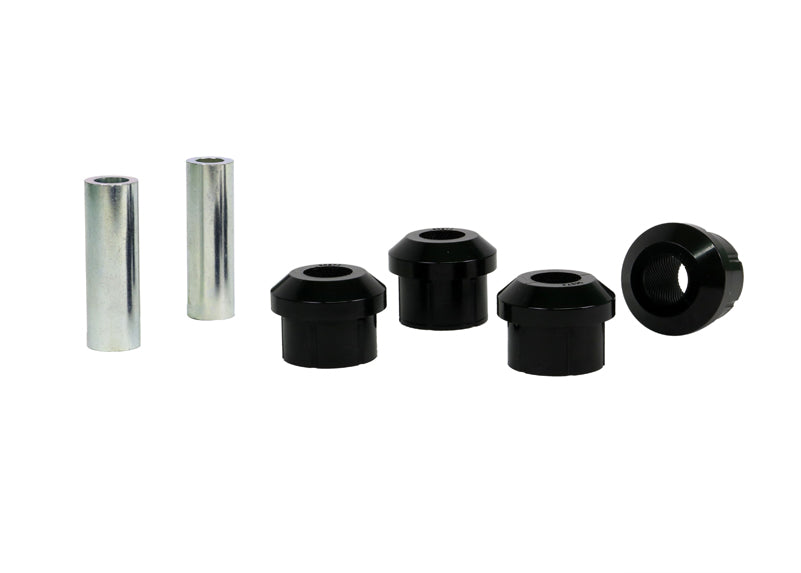

Made to fit the 2006-2013 Lexus IS250, the Front Lower Inner Control Arm Bushing from Whiteline. Placement: front. The part number is W53623. The kit contains 4 bushings and 2 tubes. It is listed for the XE20 chassis.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 3 hours of work listed. An alignment is required after installation. To go with it on the IS250, see Rear Trailing Arm Lower Front Bushing, Rear Differential Bushing - Front Mount Kit, and Heavy Duty Blade Adjustable 18mm Rear Sway Bar.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Compliance voids: Molded voids give the bushing room to flex where it needs to.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Material: Made from polyurethane.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
| Part Number | W53623 |
| Part Name | Control Arm Bushing |
| Vehicle | 2006-2013 Lexus IS250 |
| Chassis Code | XE20 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 44.2 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
