Product Details

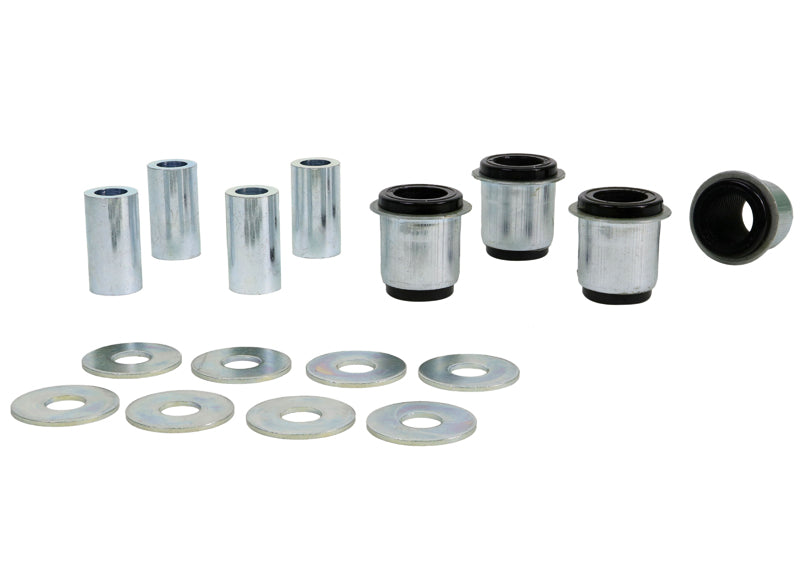

This Whiteline Front Lower Control Arm Bushing Kit fits the 1996-2001 Toyota 4Runner Base (N180). Chassis code: N180. Included: 4 shell bushings and 4 tubes. Order it as part number W53377A. Position: front.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. We also list Front Steering Rack And Pinion Mount Bushing, Front Sway Bar Washer Kit, and Rear Lower Trailing Arm Bushing for the 4Runner.
Features
- Material: Polyurethane construction.
- Warranty: Backed by a Whiteline warranty, as listed by the maker.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | W53377A |
| Part Name | Control Arm Bushing |
| Vehicle | 1996-2001 Toyota 4Runner Base |
| Chassis Code | N180 |
| Bushing 1 Inner Diameter | 19.3 mm |
| Bushing 1 Outer Diameter | 48.2 mm |
| Bushing 2 Outer Diameter | 47.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
