Product Details

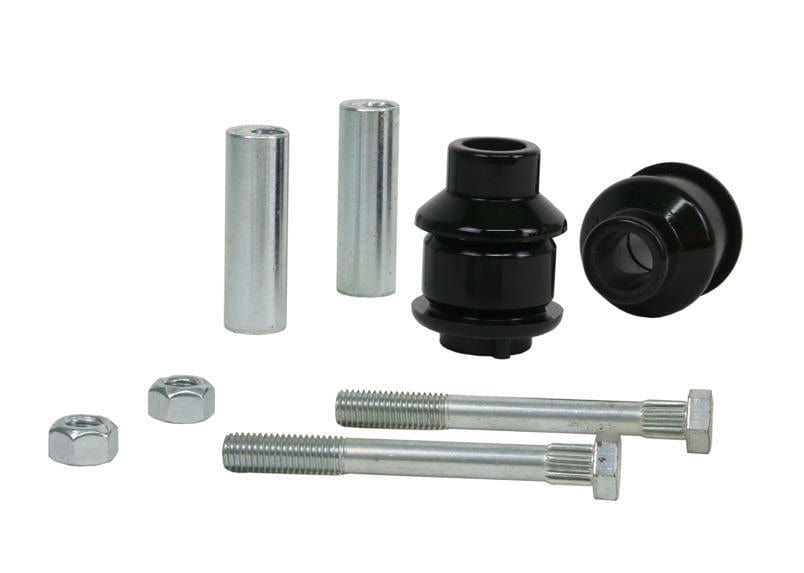

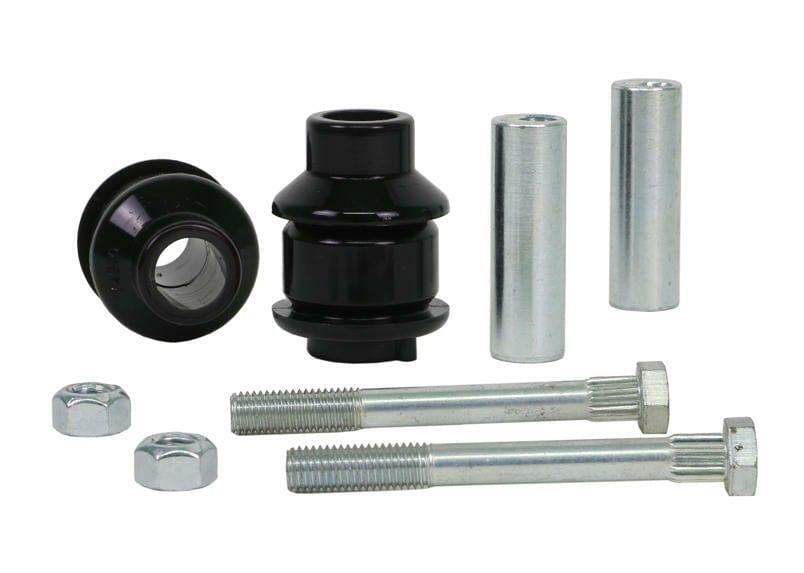

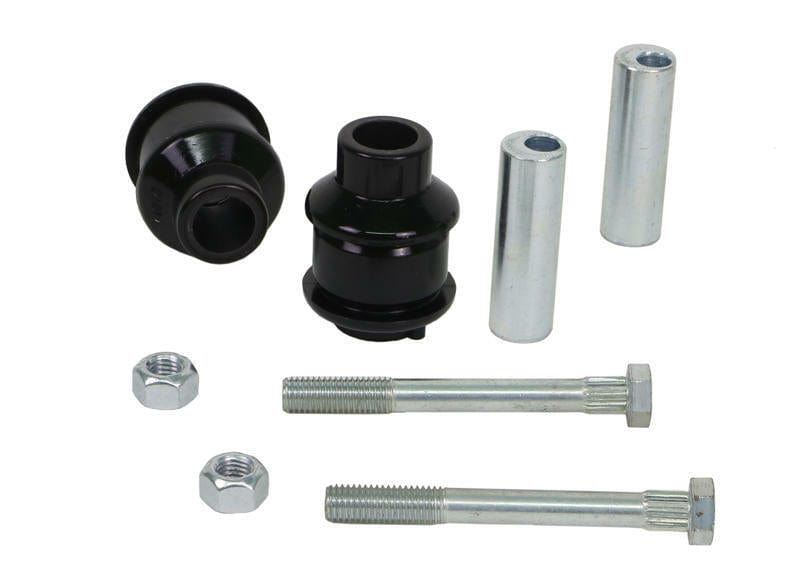

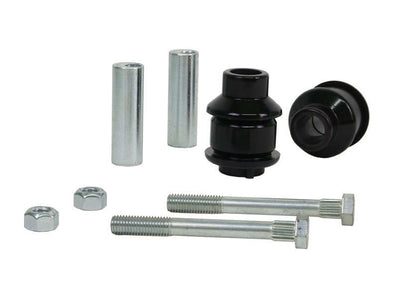

The Whiteline Front Lower Control Arm Bushing Kit fits the 2010-2015 BMW X1 sDrive28i, xDrive28i, xDrive35i. Order it as part number KCA431. Included: 2 bushings, 2 tubes, 2 bolts, and 2 nuts. It is listed for the E84 chassis. Trims named on the listing: sDrive28i, xDrive28i, and xDrive35i. Whiteline's note for this fit: Adds 0.5 degrees Camber. Position: front.
Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.
Expect a difficult job of about 2.5 hours. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing for the BMW X1.
Features
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Hardware: Hardware supplied: mounting hardware.
- Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
- Material: Polyurethane construction.
- Install guide: Whiteline packs an install guide with it.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | KCA431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2010-2015 BMW X1 sDrive28i, xDrive28i, xDrive35i |
| Chassis Code | E84 |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 46.1 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
