Product Details

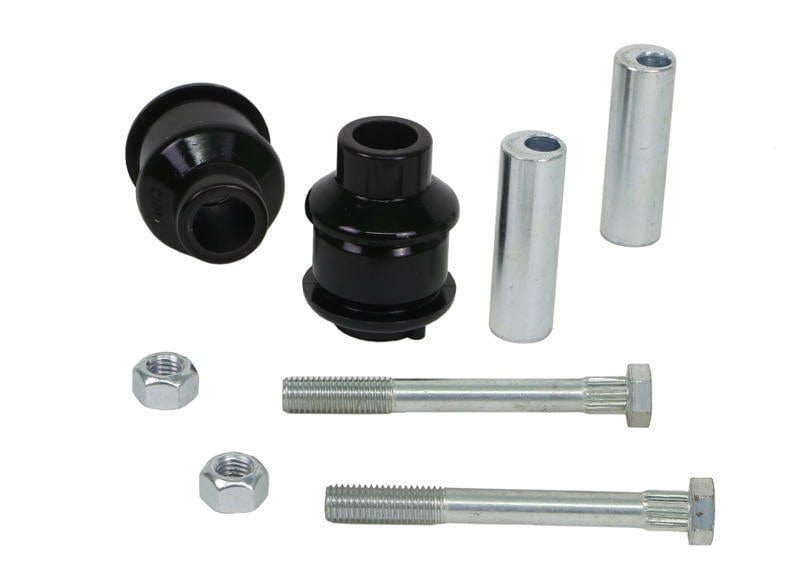

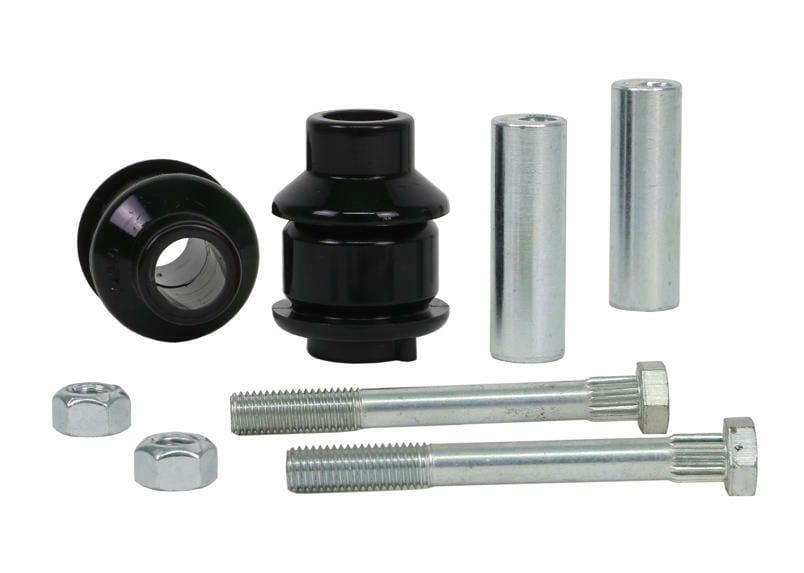

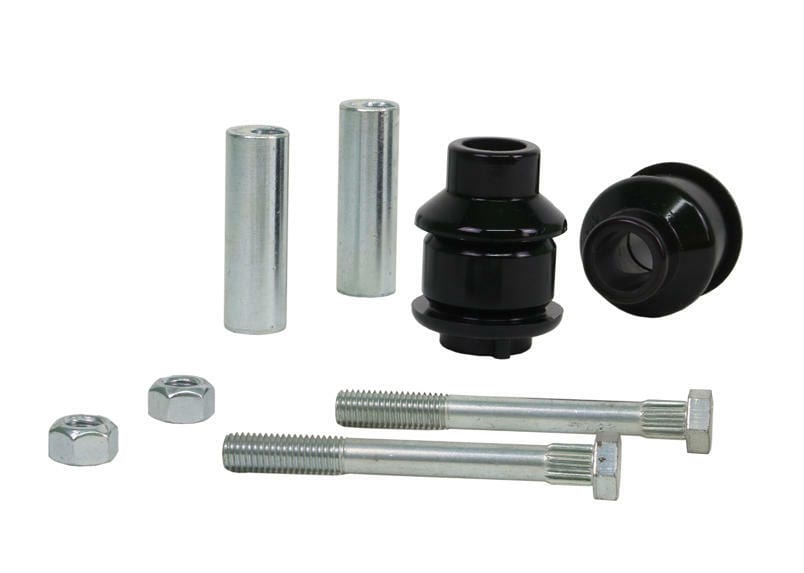

Here is the Whiteline Front Lower Control Arm Bushing Kit for the 2011-2016 BMW Z4 sDrive35is. Chassis code: E89. Position: front. Order it as part number KCA431. Application note: Adds 0.5 degrees Camber. In the box: 2 bushings, 2 tubes, 2 bolts, and 2 nuts. Trim named on the listing: sDrive35is.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Whiteline rates the install as difficult and lists about 2.5 hours. An alignment is required after installation. Working on the same car? We also list Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing for the BMW Z4.
Features
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Hardware: The kit includes mounting hardware.
- Material: Polyurethane construction.
Specifications
| Part Number | KCA431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2011-2016 BMW Z4 sDrive35is |
| Chassis Code | E89 |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 46.1 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
