Product Details

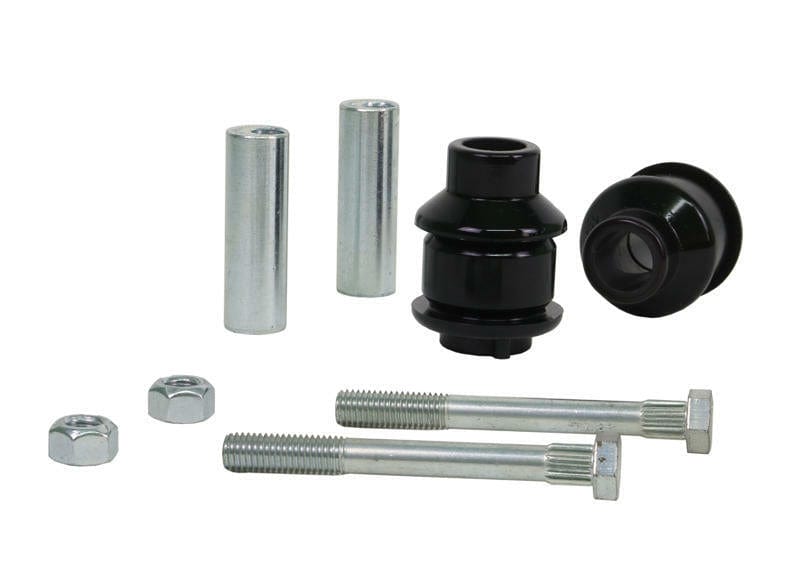

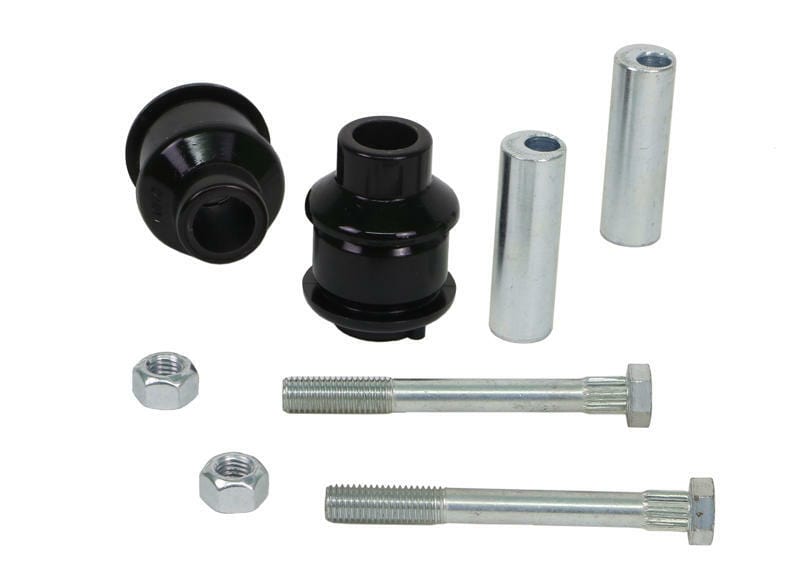

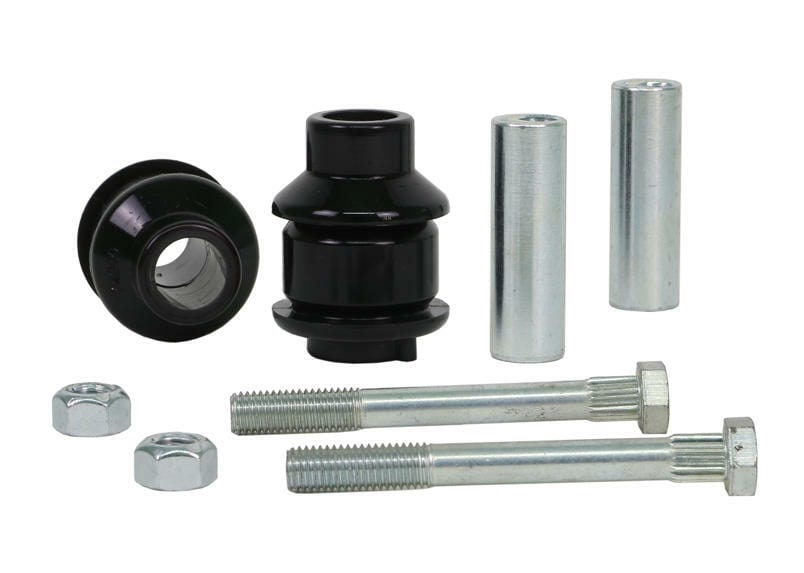

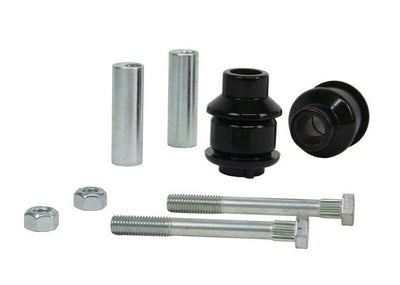

The Whiteline Front Lower Control Arm Bushing Kit fits the 2009-2016 BMW Z4 sDrive35i (E89). Order it as part number KCA431. Trim named on the listing: sDrive35i. Application note: Adds 0.5 degrees Camber. Position: front. The kit contains 2 bushings, 2 tubes, 2 bolts, and 2 nuts.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Expect a difficult job of about 2.5 hours. An alignment is required after installation. To go with it on the BMW Z4, see Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing.
Features
- Camber adjustment: Aims to keep camber in an effective range as the body rolls.
- Hardware: Hardware supplied: mounting hardware.
- Material: Built from polyurethane.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Install guide: Instructions for fitting are packed in the box.
- Finish: The metal parts are powder coated for durability.
Specifications
| Part Number | KCA431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009-2016 BMW Z4 sDrive35i |
| Chassis Code | E89 |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 46.1 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
