Product Details

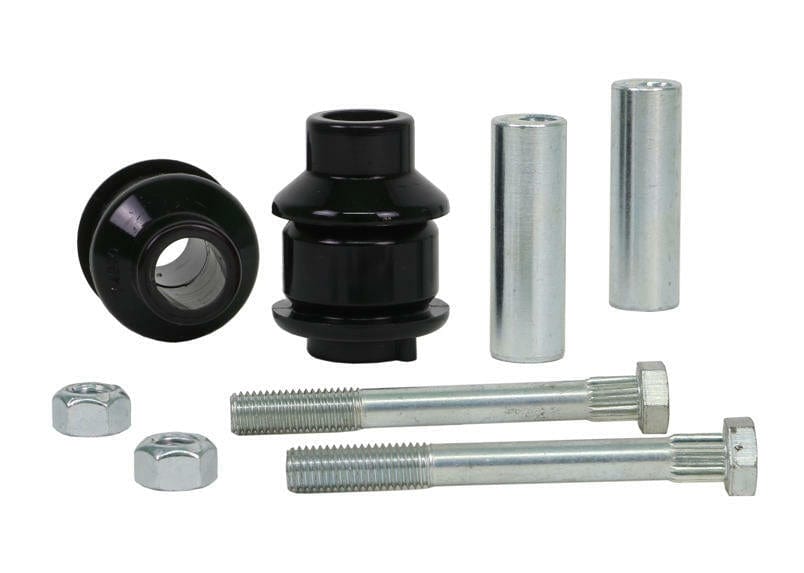

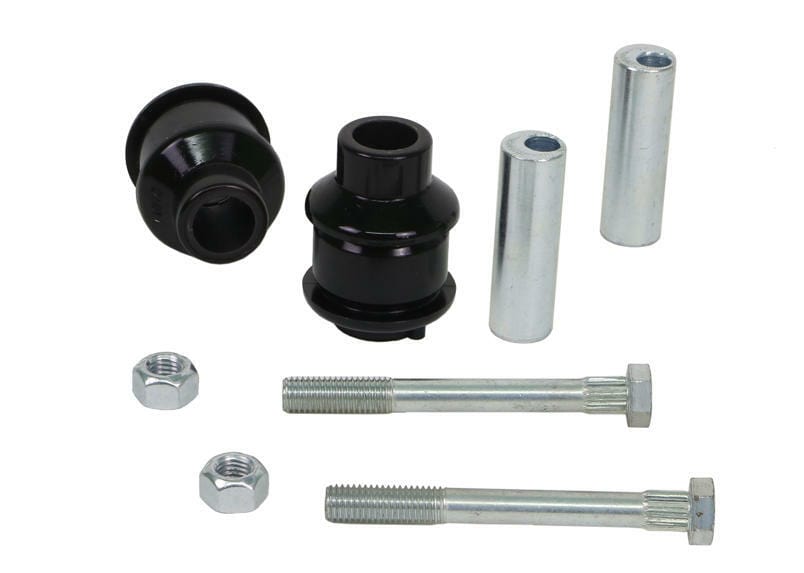

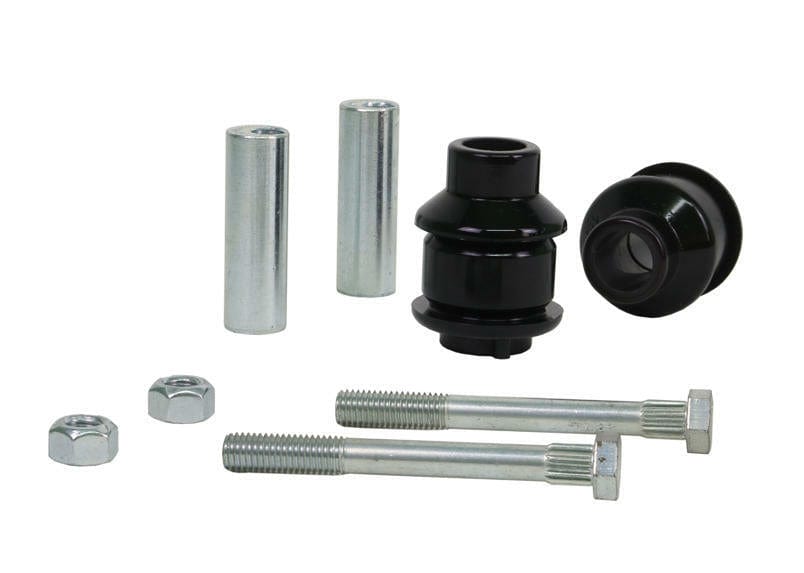

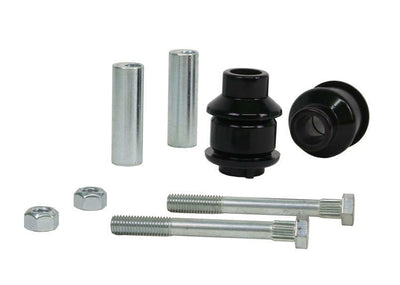

Owners of the 2009-2011 BMW Z4 sDrive30i can fit the Whiteline Front Lower Control Arm Bushing Kit. Application note: Adds 0.5 degrees Camber. It is listed for the E89 chassis. Order it as part number KCA431. Position: front. Trim named on the listing: sDrive30i. In the box: 2 bushings, 2 tubes, 2 bolts, and 2 nuts.
Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.
Expect a difficult job of about 2.5 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing for the BMW Z4.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Install guide: Written install instructions are included with the part.
- Hardware: The kit includes mounting hardware.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
- Material: Polyurethane construction.
Specifications
| Part Number | KCA431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009-2011 BMW Z4 sDrive30i |
| Chassis Code | E89 |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 46.1 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
