Product Details

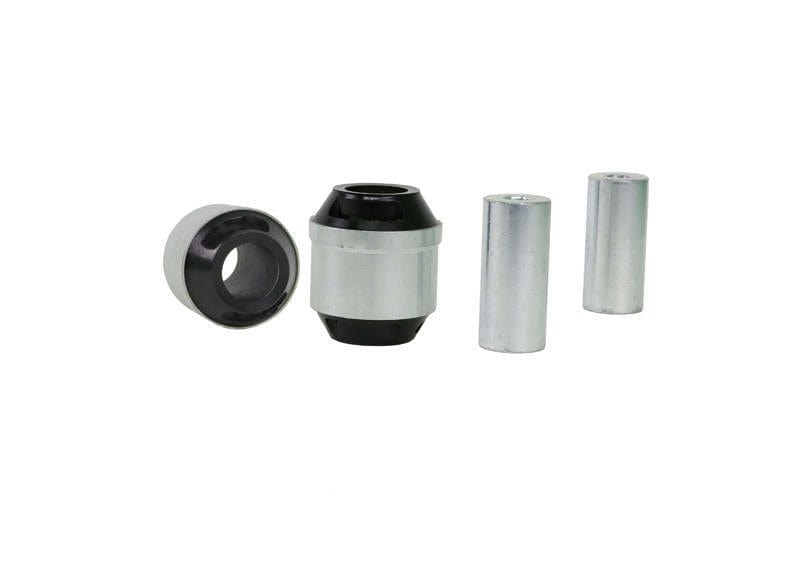

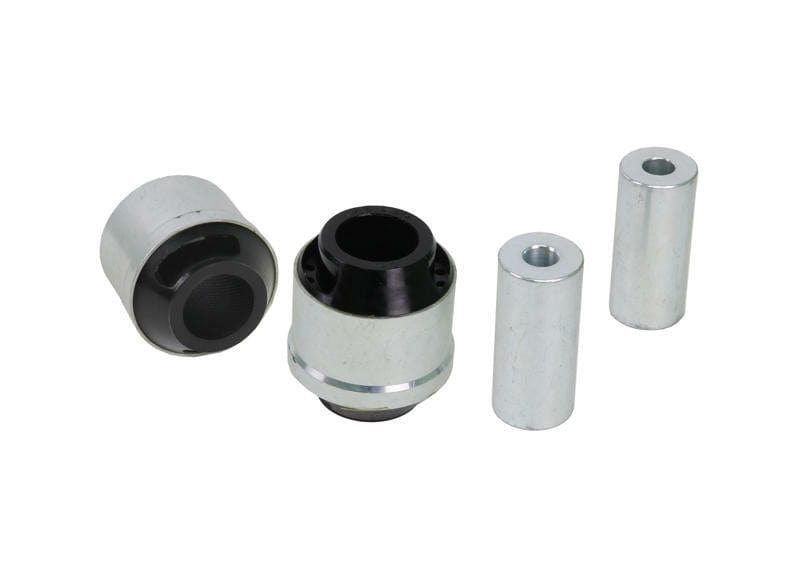

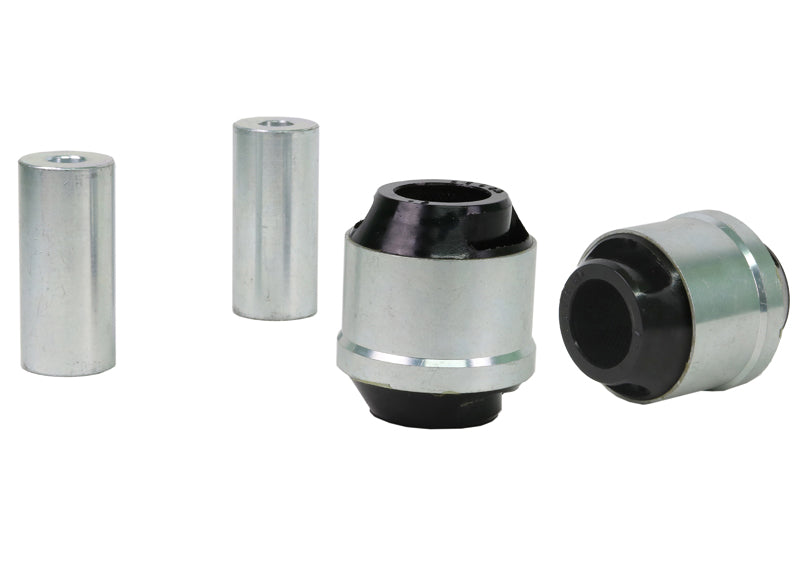

This Whiteline Front Lower Control Arm Bushing Kit fits the 2008-2009 Chrysler 300C LX (LX). Part number W53336. Included: 2 shell bushings and 2 tubes. Placement: front. Chassis code: LX.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 2.5 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the 300C: Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing.

Features

  • Install guide: Written install instructions are included with the part.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Finish: A powder coated finish resists corrosion and wear.
  • Material: Polyurethane construction.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W53336
Part Name Control Arm Bushing
Vehicle 2008-2009 Chrysler 300C LX
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Outer Diameter 69.7 mm
Bushing 2 Outer Diameter 66.6 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008Chrysler300CRWD
2008Chrysler300CAWD
2009Chrysler300CRWD
2009Chrysler300CAWD
