Product Details

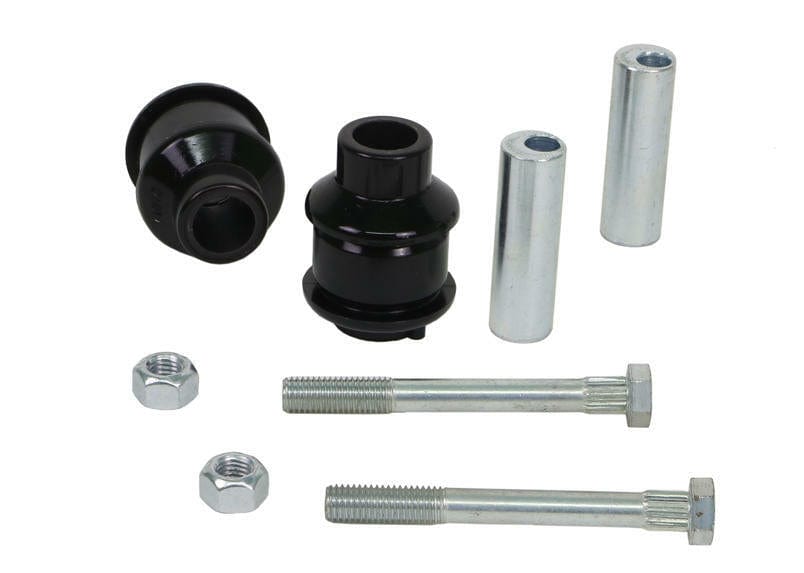

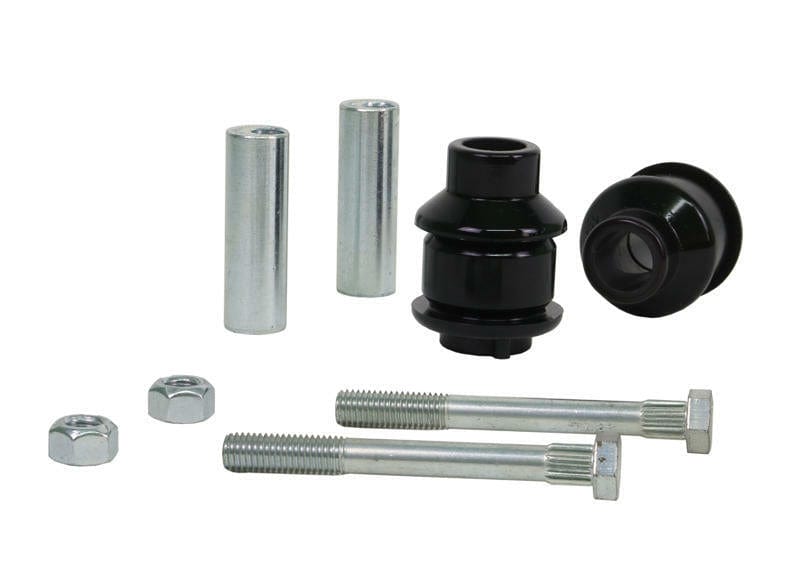

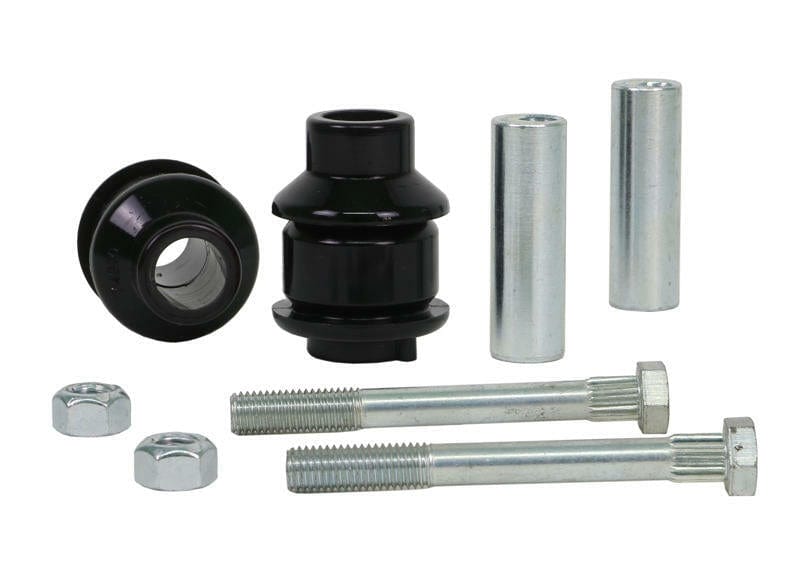

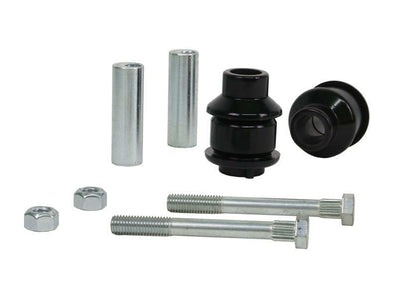

Looking for a front control arm bushing for your 2005-2011 BMW 325i 3 Series? The Whiteline Front Lower Control Arm Bushing Kit (46.1mm OD) is made for it. Order it as part number KCA431. You receive 2 bushings, 2 tubes, 2 bolts, and 2 nuts. Chassis code: E90/E91/E92/E93. Whiteline's note for this fit: Adds 0.5 degrees Camber. It goes on the front of the vehicle.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Expect a difficult job of about 2.5 hours. An alignment is required after installation. Other Whiteline parts we list for the 325i 3 Series: Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing.
Features
- Install guide: Written install instructions are included with the part.
- Material: Polyurethane construction.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Hardware: Also in the box: mounting hardware.
- Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
| Part Number | KCA431 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2011 BMW 325i 3 Series |
| Chassis Code | E90/E91/E92/E93 |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 46.1 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
