Product Details

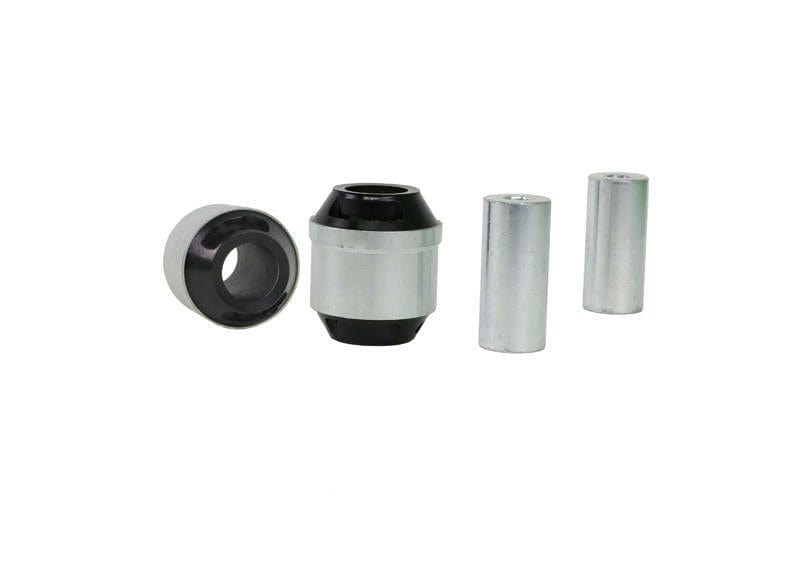

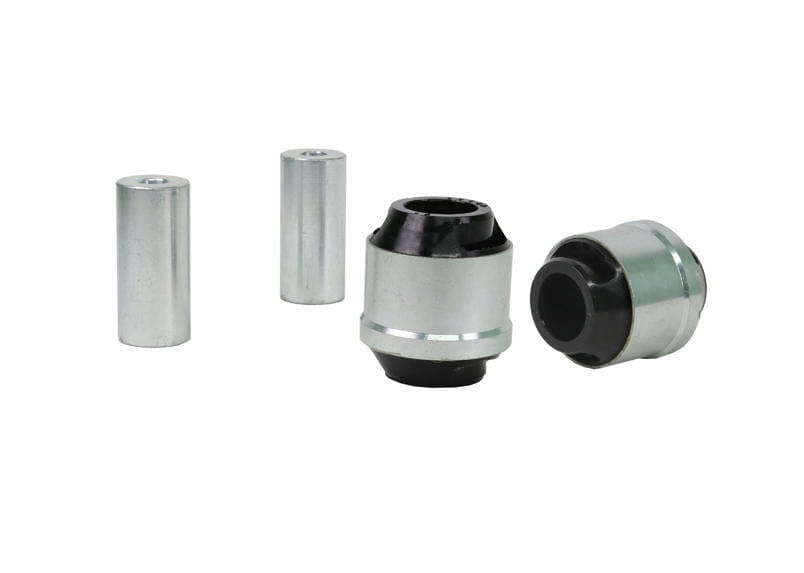

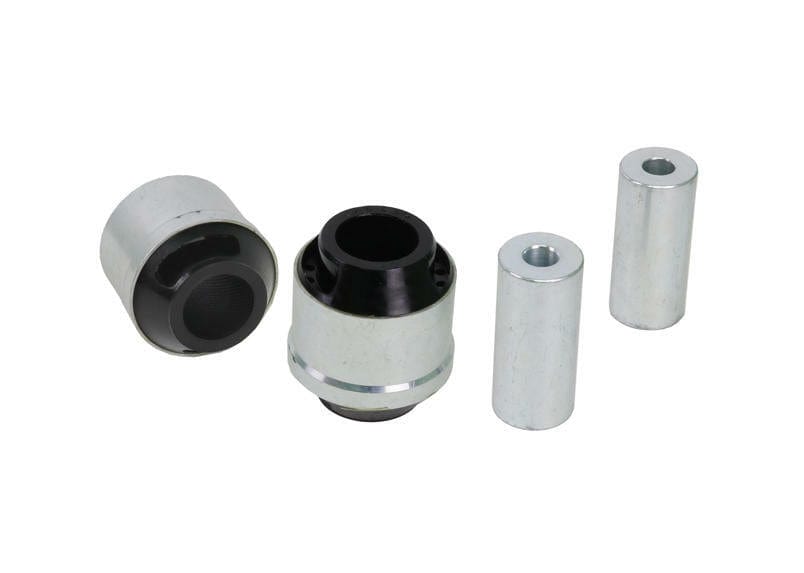

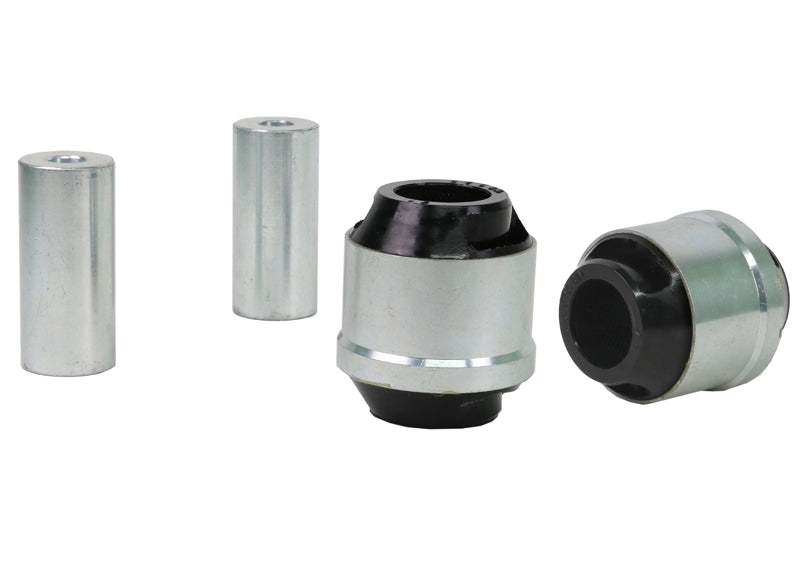

This Whiteline Front Lower Control Arm Bushing Kit fits the 2005-2007 Chrysler 300C Base (LX). The kit contains 2 shell bushings and 2 tubes. It goes on the front of the vehicle. Part number W53336. Chassis code: LX.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. Plan on a wheel alignment afterward. We also list Rear Subframe Mount Bushing, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing for the 300C.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Install guide: Written install instructions are included with the part.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W53336
Part Name Control Arm Bushing
Vehicle 2005-2007 Chrysler 300C Base
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 14.2 mm
Bushing 1 Outer Diameter 69.7 mm
Bushing 2 Outer Diameter 66.6 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Chrysler300CRWD
2005Chrysler300CAWD
2006Chrysler300CRWD
2006Chrysler300CAWD
2007Chrysler300CRWD
2007Chrysler300CAWD
