Product Details

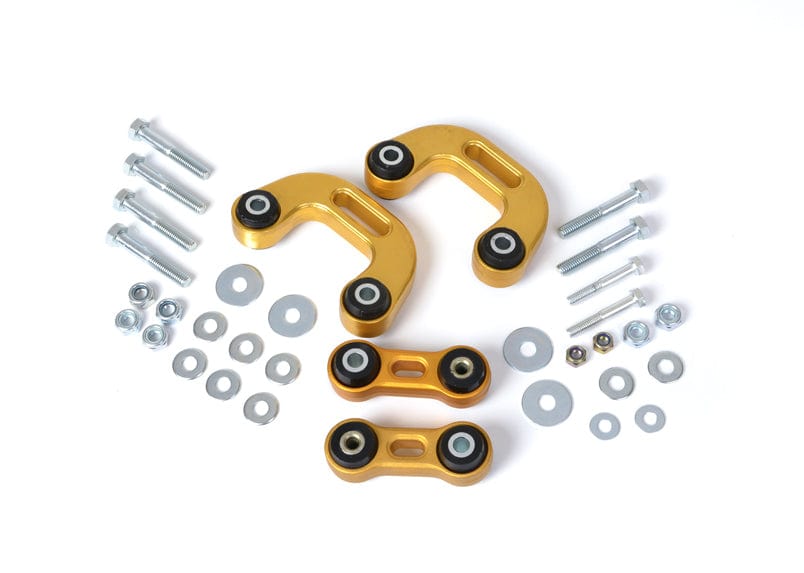

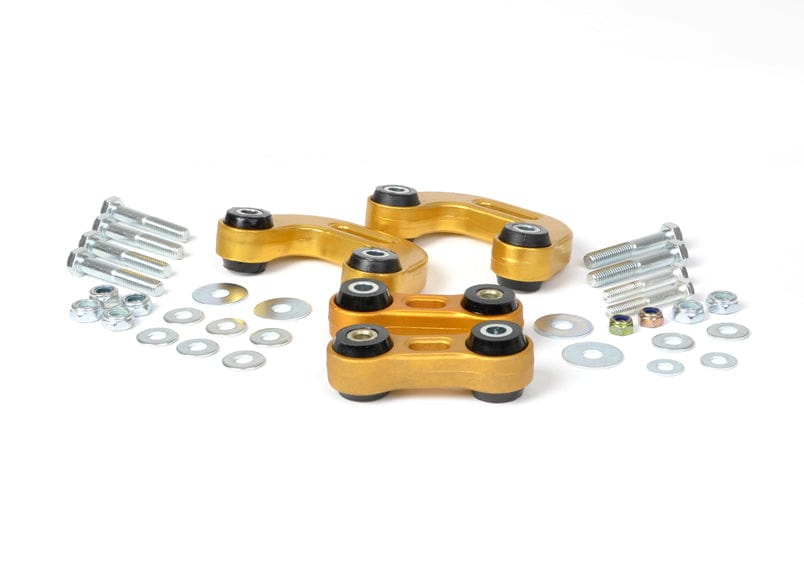

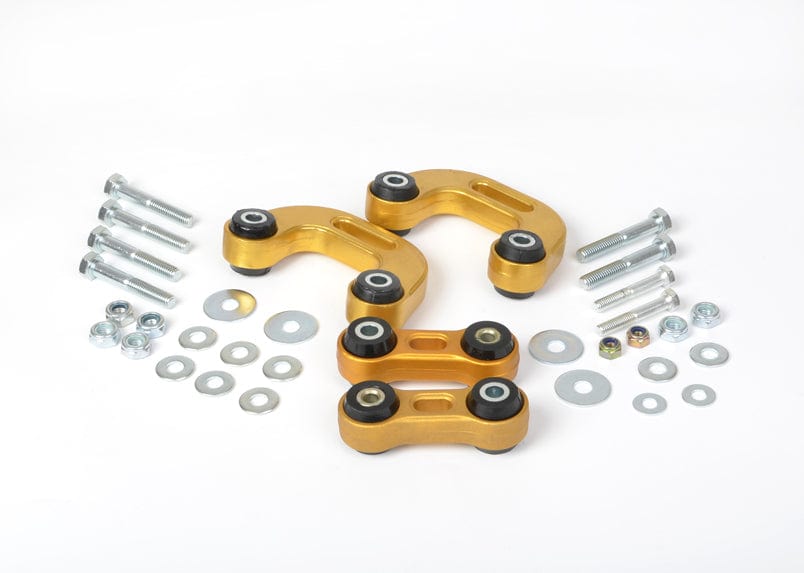

This Whiteline Front and Rear Sway Bar Link fits the 2002-2007 Subaru Impreza WRX Base (GD/GG). The kit contains 4 links, 8 bolts, 16 washers, and 8 nuts. Whiteline's note for this fit: Suits steel arms. Front & Rear Vehicle Set: Boxed Contains KLC26 & KLC30. Position: front and rear. Part number KLC31.

A sway bar link is the short rod that ties each end of the front and rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system.

Installation is rated easy, with about 1 hour of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the Impreza WRX Base: Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Finish: A powder coated finish resists corrosion and wear.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number KLC31
Part Name Sway Bar Link
Vehicle 2002-2007 Subaru Impreza WRX Base
Drivetrain AWD
Chassis Code GD/GG
Bushing Material Polyurethane
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Links, 8 Bolts, 16 Washers, 8 Nuts
Length 100 mm
Vehicle Placement Front
Wheel Alignment Required No
Notes Suits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruWRXAWDSuits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30
2003SubaruWRXAWDSuits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30
2004SubaruWRXAWDSuits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30
2005SubaruWRXAWDSuits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30
2006SubaruWRXAWDSuits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30
2007SubaruWRXAWDSuits steel arms. Front & Rear Vehicle Set - Boxed Contains KLC26 & KLC30
