Product Details

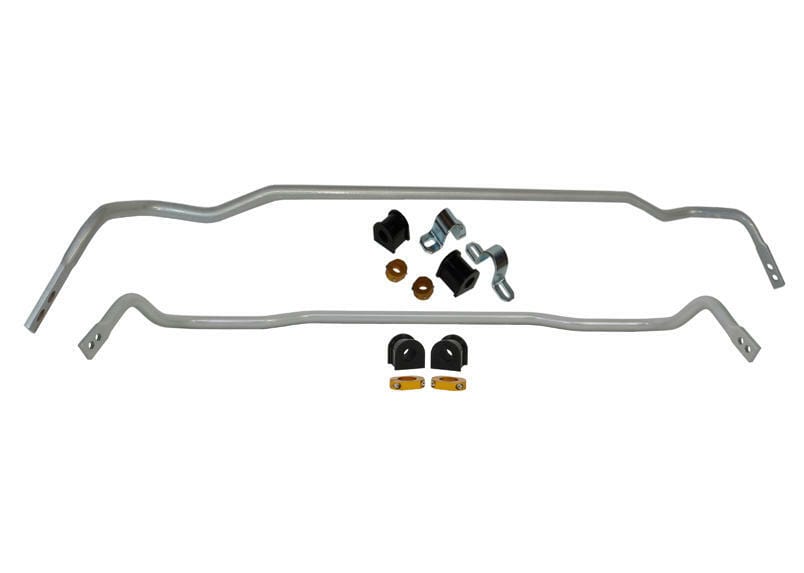

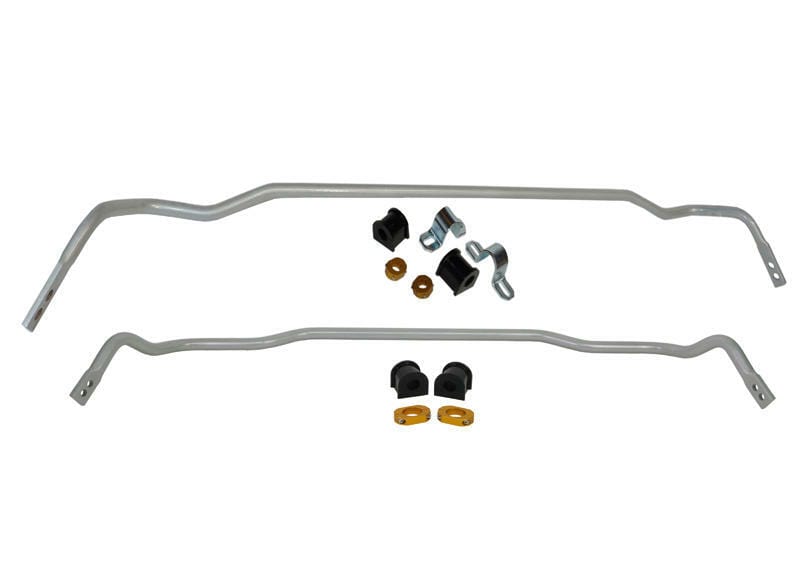

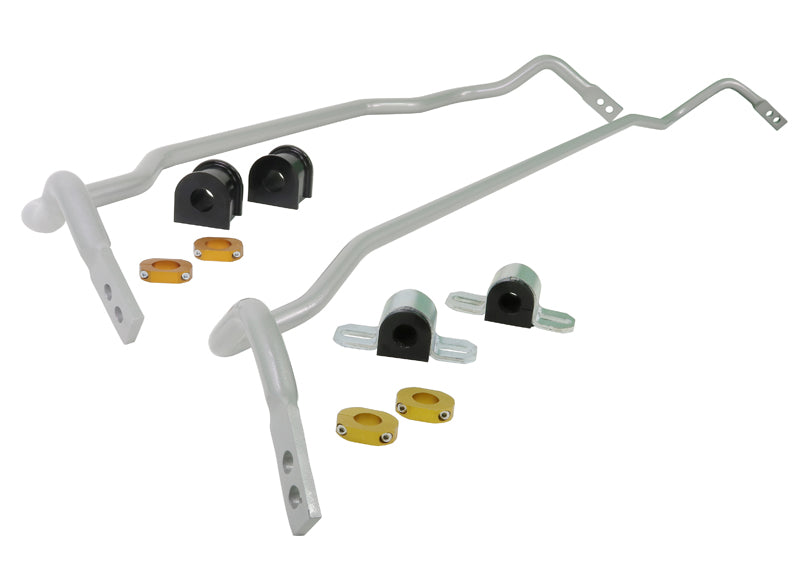

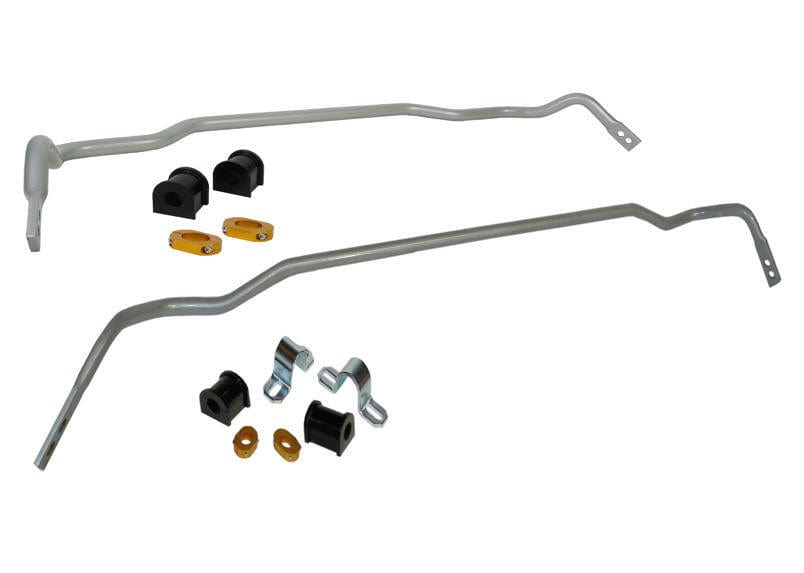

The Whiteline Front and Rear Sway Bar Kit w/o Links fit the 2018-2023 Kia Stinger (CK). Included: 2 sway bars, 4 bushings, 2 saddles, 4 lateral locks, and grease. Order it as part number BKK002. This part is for the front and rear of the vehicle. Whiteline's note for this fit: End Links sold separately.
Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. The bar is adjustable, so the stiffness can be changed to suit the car and the road.
Whiteline rates the install as moderate and lists about 4 hours. No alignment is needed afterward. To go with it on the Stinger, see Rear Sway Bar Link, Front Sway Bar Link Kit, and Front Lower Radius Arm Bushing Kit - Double Offset.
Features
- Roll control: Designed to cut body roll and sway through corners.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Bar mounts: Internally knurled mount bushings with lips that hold grease keep the bar lubricated.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
Specifications
| Part Number | BKK002 |
| Part Name | Sway Bars |
| Vehicle | 2018-2023 Kia Stinger Base, GT, GT1, GT2, Premium |
| Chassis Code | CK |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 24 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | No |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Sway Bars, 4 Bushings, 2 Saddles, 4 Lateral Locks, Grease |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 18 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | No |
| Wheel Alignment Required | No |
| Notes | End Links sold separately |
