Product Details

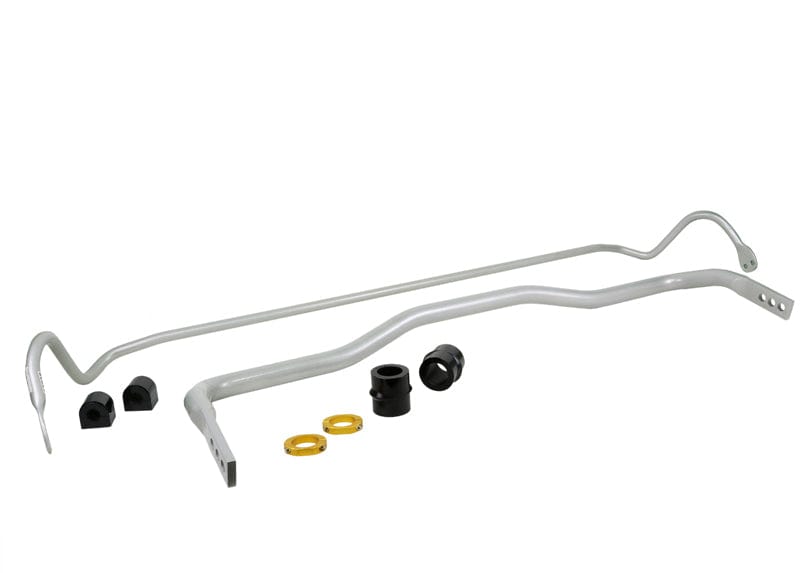

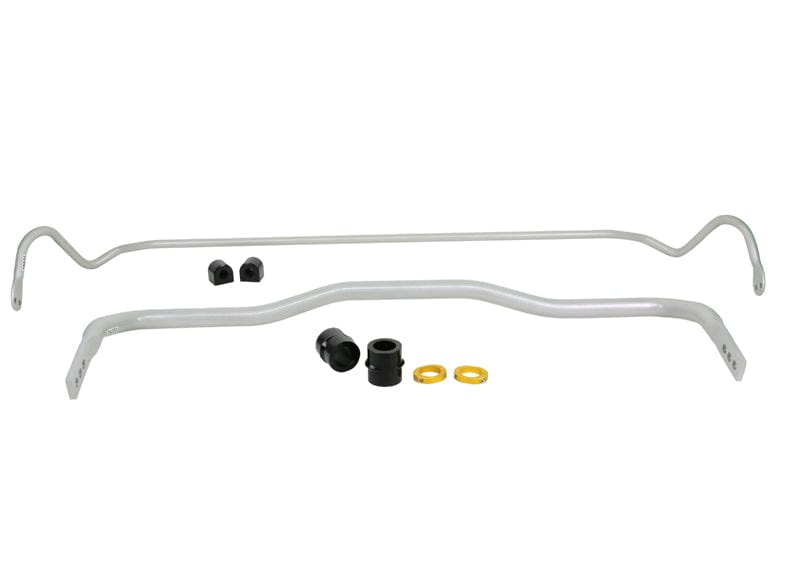

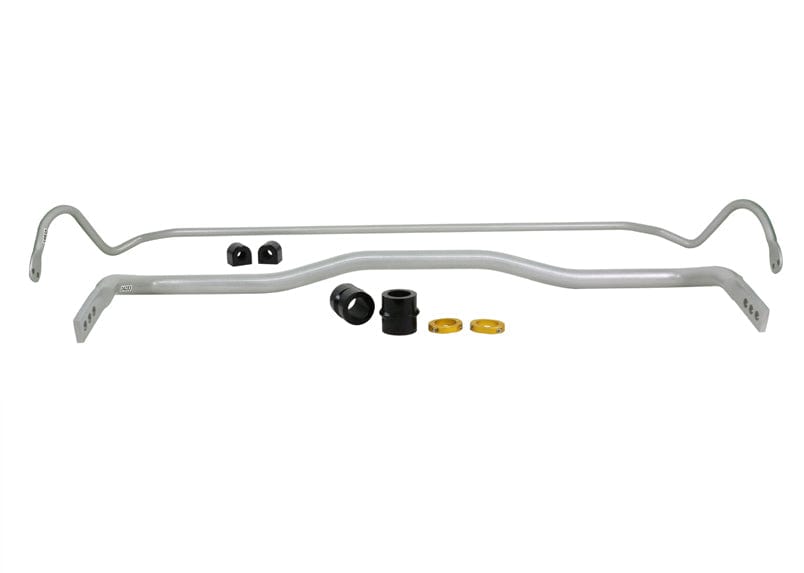

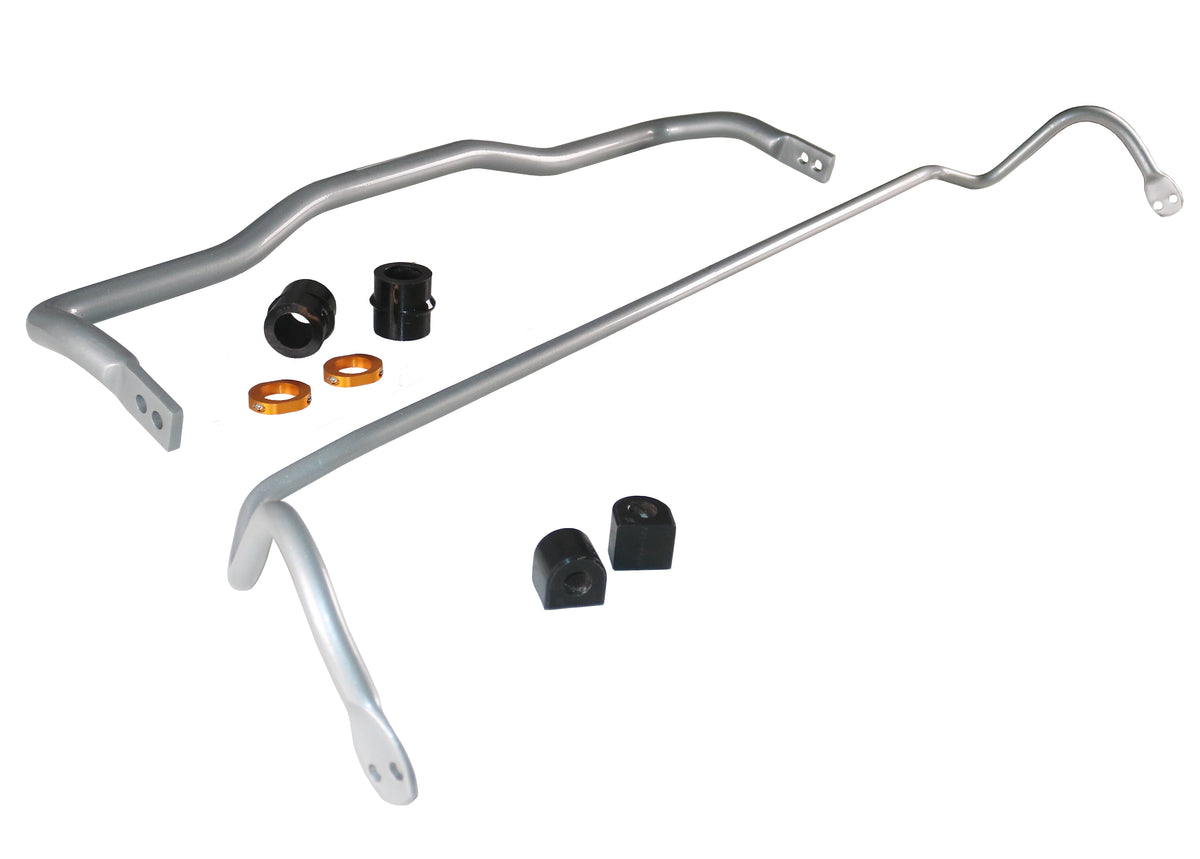

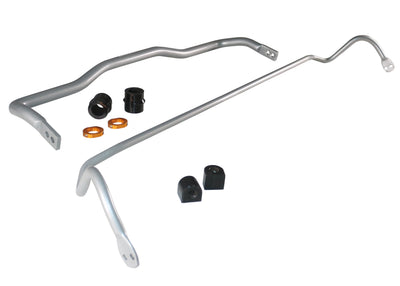

This Whiteline Front and Rear Sway Bar Kit fits the 2010-2015 Chrysler 300C S (LX/LD). Application note: Contains BCF12Z and BCR15Z. Position: front and rear. Order it as part number BCK003. In the box: 2 sway bars, 4 bushings, and 2 lateral locks.

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 3 hours of work listed. No alignment is needed afterward. We also list Rear Subframe Mount Bushing, Rear Trailing Arm Lower Front Bushing, and Front Lower Radius Arm Bushing for the 300C.

Features

  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Lateral locks: Lateral locks keep the bar centered under cornering load.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Forged ends: Forged bar ends add strength where the bar meets the link.
  • PTFE lined: PTFE lining gives a very low friction surface and removes the need to grease.
Specifications
Part Number BCK003
Part Name Sway Bars
Vehicle 2010-2015 Chrysler 300C S
Drivetrain RWD/AWD
Chassis Code LX/LD
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 33 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front No
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Sway Bars, 4 Bushings, 2 Lateral Locks
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 18 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear No
Wheel Alignment Required No
Notes Contains BCF12Z and BCR15Z

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010Chrysler300CRWDContains BCF12Z and BCR15Z
2010Chrysler300CAWDContains BCF12Z and BCR15Z
2011Chrysler300CRWDContains BCF12Z and BCR15Z
2011Chrysler300CAWDContains BCF12Z and BCR15Z
2012Chrysler300CRWDContains BCF12Z and BCR15Z
2012Chrysler300CAWDContains BCF12Z and BCR15Z
2013Chrysler300CRWDContains BCF12Z and BCR15Z
2013Chrysler300CAWDContains BCF12Z and BCR15Z
2014Chrysler300CRWDContains BCF12Z and BCR15Z
2014Chrysler300CAWDContains BCF12Z and BCR15Z
2015Chrysler300CRWDContains BCF12Z and BCR15Z
2015Chrysler300CAWDContains BCF12Z and BCR15Z
