Product Details

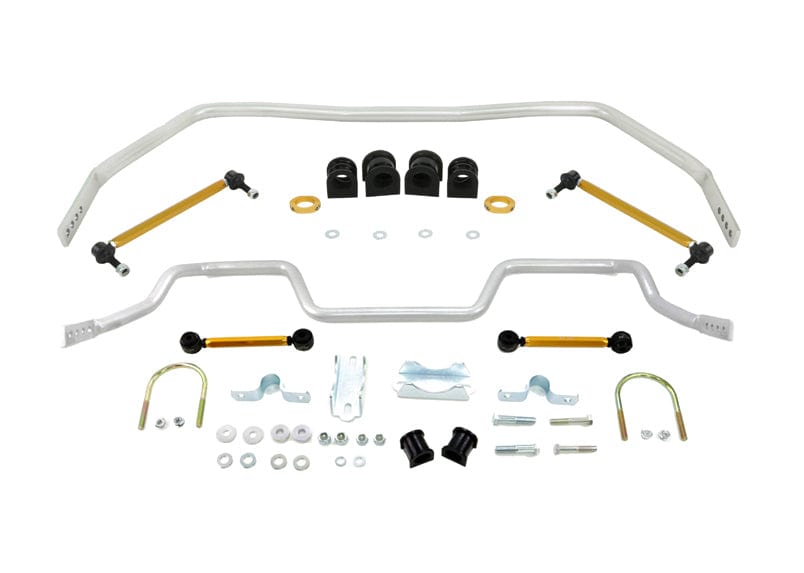

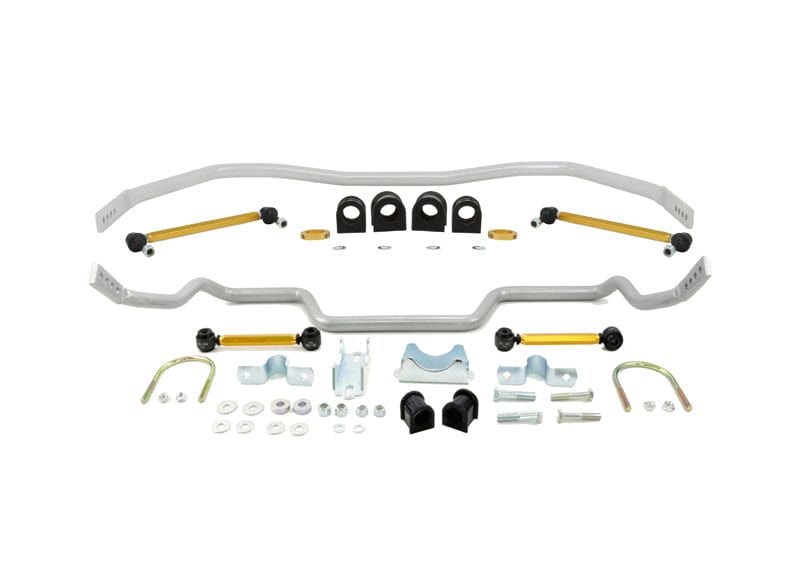

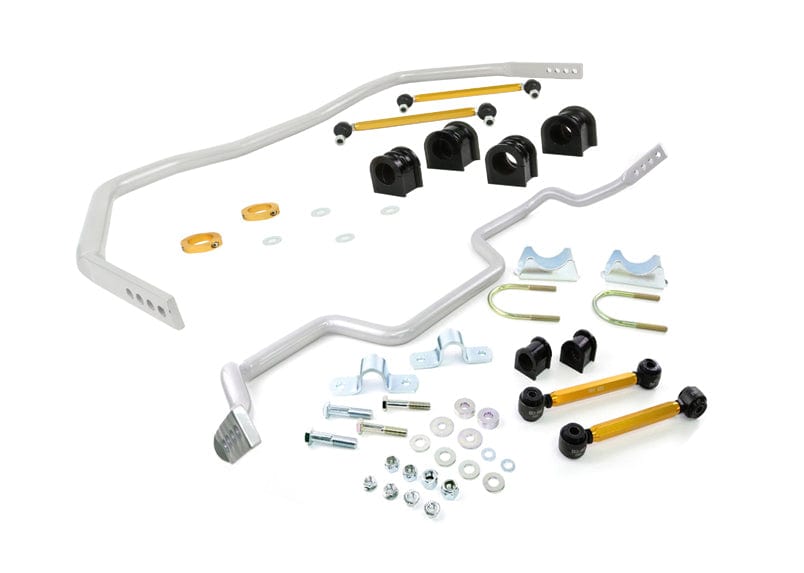

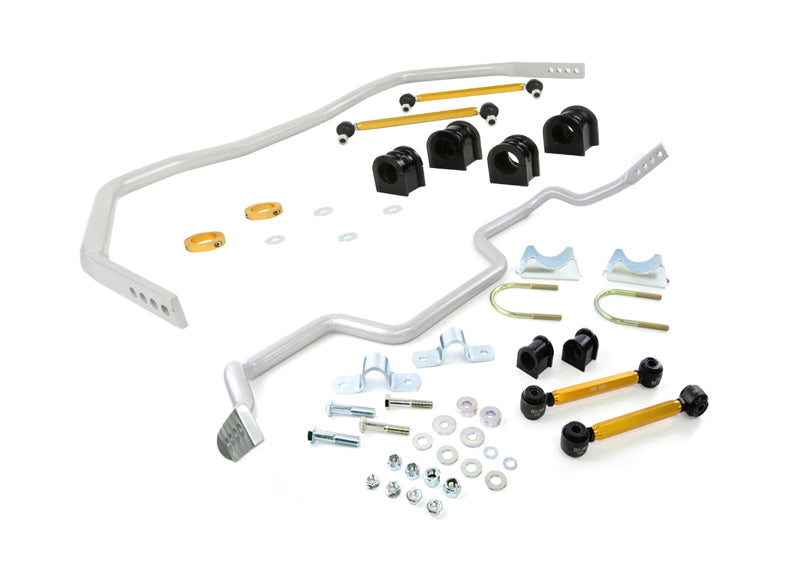

Engineered to 'Activate More Grip', BFK005 is a packaged solution to your 2007-2014 Ford Mustang Shelby GT500 (S197) designed to improve performance and enhance the driving experience of your vehicle. Boasting a 33mm 4 point adjustable front sway bar and 27mm 4 point adjustable rear sway bar, the kit is completed with high quality Sway Bar Links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
Standard Features
- Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm center to center.
- Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
- Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
- Manufactured from high quality alloy and utilize the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
- Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
- Whiteline Sway Bar Mounts utilize the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- By eliminating flex associated with original equipment, these high strength links are engineered to improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
- Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
- Whiteline Sway Bars are principally designed to reduce body roll or sway while cornering.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
- PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
- Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
- Install guide included providing detailed instructions on how to install your new Whiteline purchase.
Specifications
| Part Number | BFK005 |
| Part Name | Sway Bars |
| Vehicle | 2007-2014 Ford Mustang Shelby GT500 |
| Chassis Code | S197 |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 33 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Sway Bars, 4 Links, 6 Bushings, 2 Saddles, 2 Lateral Locks, 2 Mounts, 2 Spacers, 2 U-Bolts,4 Bolts, 12 Washers, 8 Nuts |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 27 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | No |
Vehicle Fitment
- 2007 Ford Mustang Shelby GT500 (S197)
- 2008 Ford Mustang Shelby GT500 (S197)
- 2009 Ford Mustang Shelby GT500 (S197)
- 2010 Ford Mustang Shelby GT500 (S197)
- 2011 Ford Mustang Shelby GT500 (S197)
- 2012 Ford Mustang Shelby GT500 (S197)
- 2013 Ford Mustang Shelby GT500 (S197)
- 2014 Ford Mustang Shelby GT500 (S197)
